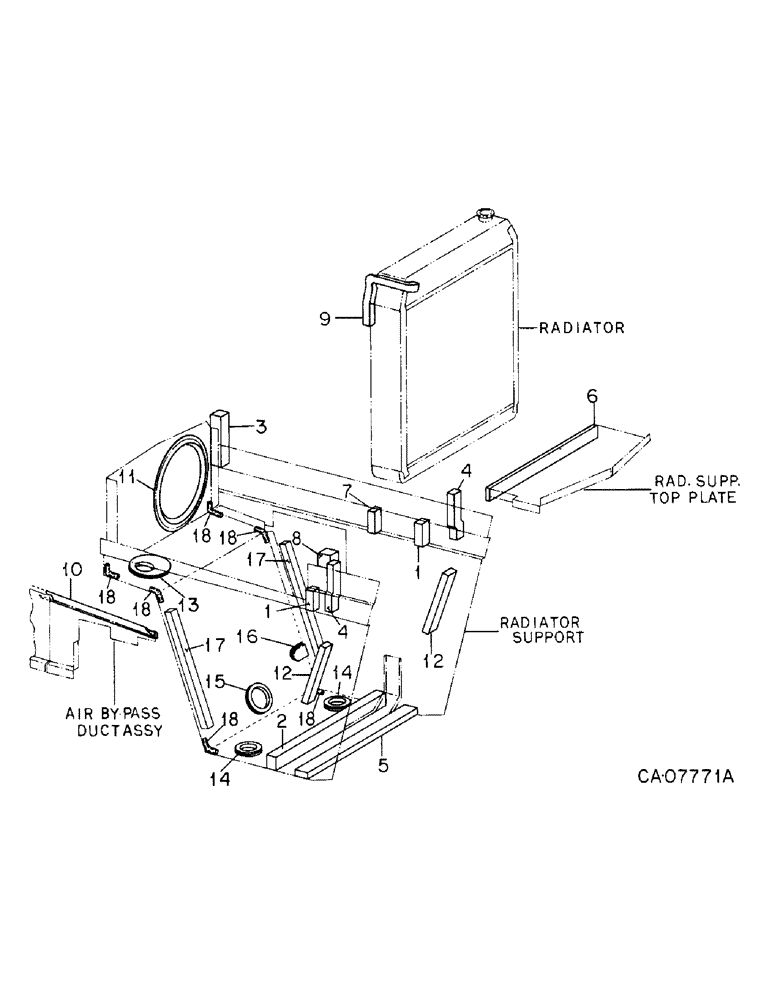

Запчасти Case IH 3688HC (06-09) - COOLING, RADIATOR SUPPORT SEALS Cooling

1

SEAL, radiator support shroud top corners, Furnish 80.0 mm of foam gasket from 4 ft. length marked 79059C1

2шт.

2

SEAL, radiator support bottom, Furnish 700 mm of foam gasket from 4 ft. length marked 1264564C1

1шт.

3

SEAL, radiator support upper rear, Furnish 200.0 mm of foam gasket from 4 ft. length marked 79059C1

1шт.

4

SEAL, radiator support to hood, front, Furnish 170 mm of foam gasket from 4 ft. length marked 1264564C1

2шт.

5

SEAL, radiator support top, Furnish 700 mm of foam gasket from 4 ft. length marked 1264565C1

1шт.

6

SEAL, radiator top front, furnish 670 mm of foam gasket from 4 ft. length marked 79059C1

1шт.

8

SEAL, duct front upper, Furnish 90 mm of foam gasket from 4 ft. length marked 1264566C1

1шт.

9

SEAL, rad & air bypass duct, Furnish 350 mm of foam gasket from 4 ft. length marked 73215C1

1шт.

10

1252859C1

SEAL

hood by-pass duct

1шт.

11

1252833C1

SEAL

radiator support air cleaner opening

1шт.

12

1251813C2

STRIP

PAD, front side panel, bumper

2шт.

13

130577C2

GROMMET

radiator inlet hose

1шт.

14

149085C1

PLUG

radiator support clean out

2шт.

15

130687C1

GROMMET

radiator outlet tube, lower, 3088 and 3288 tractors

1шт.

15

130688C1

GROMMET

radiator outlet hose, 3688 and 3688HC tractors

1шт.

16

1252760C2

PLUG

A/C hose opening, tractors w/rops

1шт.

16

1250462C2

GROMMET

A/C hose, tractors w/cab

1шт.

17

1259882C1

STRIP

PAD, rear side panel, bumper

2шт.

18

SEAL, radiator support assy, caulk, right and left side, Use 30 mm from bulk carton marked 146793C1

6шт.
