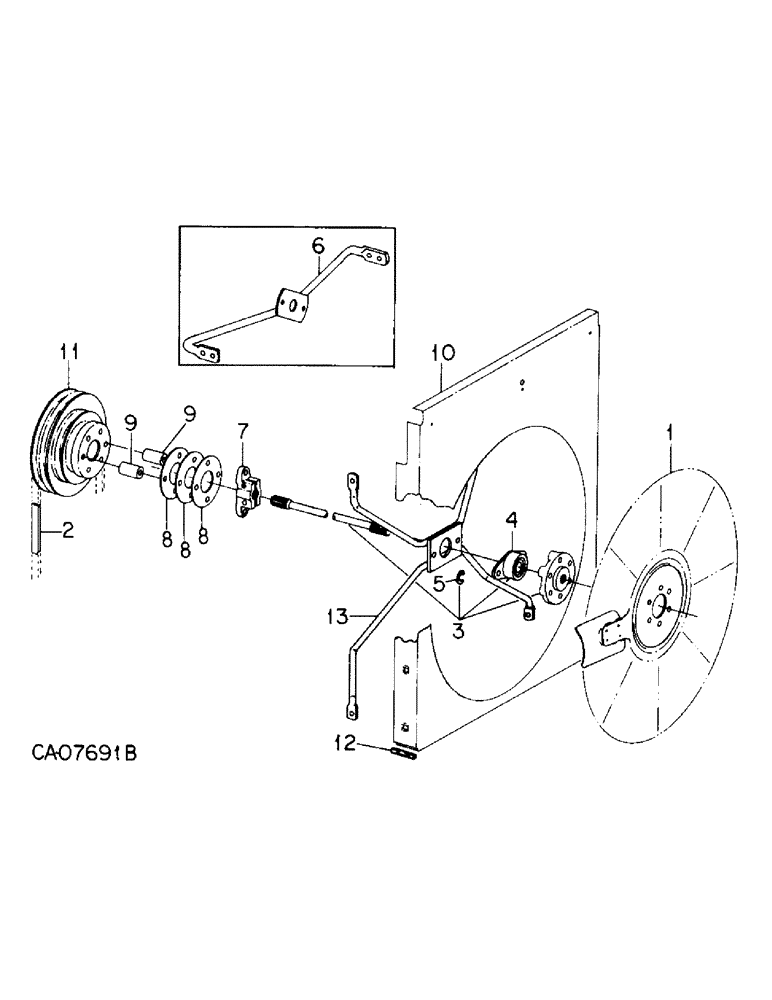

Запчасти Case IH 3688HC (06-04) - COOLING, FAN AND FAN BELT Cooling

1

146414C1

BLADE

FAN ASSY

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

6шт.

933965R1

LOCK WASHER,M10

6шт.

2

131201C91

BELT

water pump and alternator, 3688 and 3688HC tractors

1шт.

2

80130C1

V-BELT,0.50" W

Water Pump and Alternator, 3088 and 3288 Tractors 0.50" W

1шт.

3

130211C93

SHAFT

ASSY, radiator fan drive

1шт.

3088 w/Serial no. 1068 and below, 3288 w/Serial no. 1344 and below

1шт.

3

130193C93

SHAFT

ASSY, radiator fan drive

1шт.

3688 w/Serial no. 2529 and below, 3688HC w/Serial no. 2529 and below

1шт.

931447R1

BOLT,Hex, M10 x 25, 8.8, Full Thd

M10 x 25 phc class 8.8

2шт.

933965R1

LOCK WASHER,M10

2шт.

30168R1

NUT,M10, Cl 10

M10 phc class 10

2шт.

3

1253247C91

SHAFT ASSY.

SHAFT ASSY, radiator fan drive, Replaces 1270862C91

1шт.

3088 w/Serial no. 1069 and above, 3288 w/Serial no. 1345 and above

1шт.

3

1253249C91

SHAFT ASSY.

SHAFT ASSY, radiator fan drive, Replaces 1270863C91

1шт.

3688 w/Serial no. 2530 and above, 3688HC w/Serial no. 2530 and above.

1шт.

4

130210C91

FLANGED BEARING,25.4mm ID

1шт.

3088 w/Serial no. 1068 and below, 3288 w/Serial no. 1344 and below

1шт.

3688 w/Serial no. 2529 and below, 3688HC w/Serial no. 2529 and below

1шт.

5

631530R1

RING, SNAP

RING, .941 ext rect sect ret

1шт.

6

130214C2

SUPPORT

ASSY, radiator fan

1шт.

3088 w/Serial no. 1068 and below, 3288 w/Serial no. 1344 and below

1шт.

3688 w/Serial no. 2529 and below, 3688HC w/Serial no. 2529 and below

1шт.

931447R1

BOLT,Hex, M10 x 25, 8.8, Full Thd

M10 x 25 phc class 8.8

4шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5 mm phc

4шт.

933965R1

LOCK WASHER,M10

4шт.

30168R1

NUT,M10, Cl 10

M10 phc class 10

4шт.

7

130675C1

HUB

water pump pulley

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

2шт.

25709R1

WASHER

.406 x .812 x .089 hdn

2шт.

8

130213C1

SHIM

flex coupling, disc, 3088 and 3288 tractors

3шт.

8

130092C1

DISC

SHIM, flex coupling, disc, 3688 and 3688HC tractors

3шт.

9

130217C1

SPACER

flex coupling, 3088 and 3288 tractors

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

2шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

5/16 x 3 type 5

2шт.

9

130088C1

SPACER

flex coupling, 3688 and 3688HC tractors

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

2шт.

10

130267C1

SHROUD

radiator fan

1шт.

130285C1

NUT

M8-1.25 cage

8шт.

11

537071R1

PULLEY

fan and water pump, 3688 and 3688HC tractors, 3088 and 3288 tractors, Use crankshaft pulley, See eng 5 catalog

1шт.

12

SEAL, fan shroud caulk, right and left side, Use 60 mm from bulk carton marked 146793C1

2шт.

13

1253187C1

SUPPORT

ASSY, radiator fan

1шт.

3088 w/Serial no. 1069 and above, 3288 w/Serial no. 1345 and above

1шт.

3688 w/Serial no. 2530 and above, 3688HC w/Serial no. 2530 and above.

1шт.

931447R1

BOLT,Hex, M10 x 25, 8.8, Full Thd

M10 x 25 phc class 8.8

4шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5 mm phc

4шт.

933965R1

LOCK WASHER,M10

4шт.

30168R1

NUT,M10, Cl 10

M10 phc class 10

4шт.
