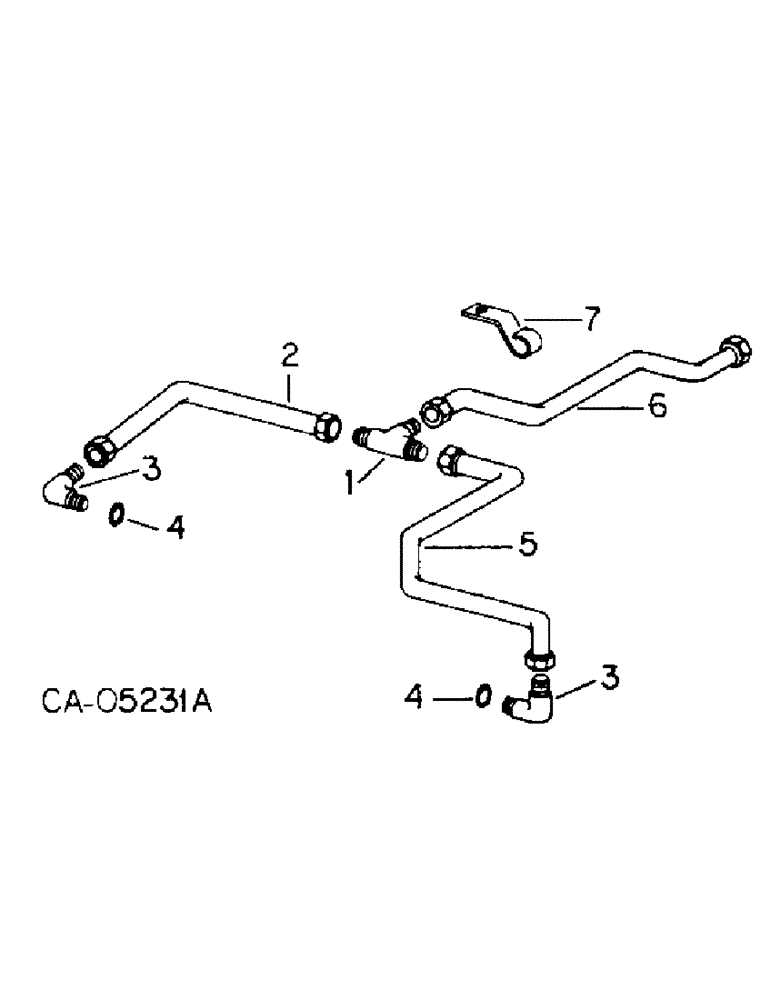

Запчасти Case IH 3688HC (04-03) - BRAKES, MASTER BRAKE LUBRICATION (5.1) - BRAKES

1

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

3/8 C-Z hyd flared three way

1шт.

2

104774C2

TUBE

ASSY, brake lube crossover

1шт.

3

71864C2

90 ELBOW

5/8-3/8 37 deg hyd flared tube 90 deg. reducer w/orifice

2шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

5

120244C1

HYD TUBE

TUBE ASSY, brake lube RH, tractors w/o differential lock

1шт.

5

120245C1

HYD TUBE

TUBE ASSY, brake lube RH, tractors w/differential lock

1шт.

120333C2

CONNECTOR, ELEC

CONNECTOR, brake orifice, For use with tube 120245C1

1шт.

6

120204C3

HYD TUBE

TUBE ASSY, brake lube

1шт.

7

120435C1

CLAMP

CLIP, brake lube tube

1шт.
