(09-14) - FRAME, THREE POINT HITCH SPLIT COUPLER BALL

Запчасти Case IH 3688HC (09-14) - FRAME, THREE POINT HITCH SPLIT COUPLER BALL (12) - FRAME

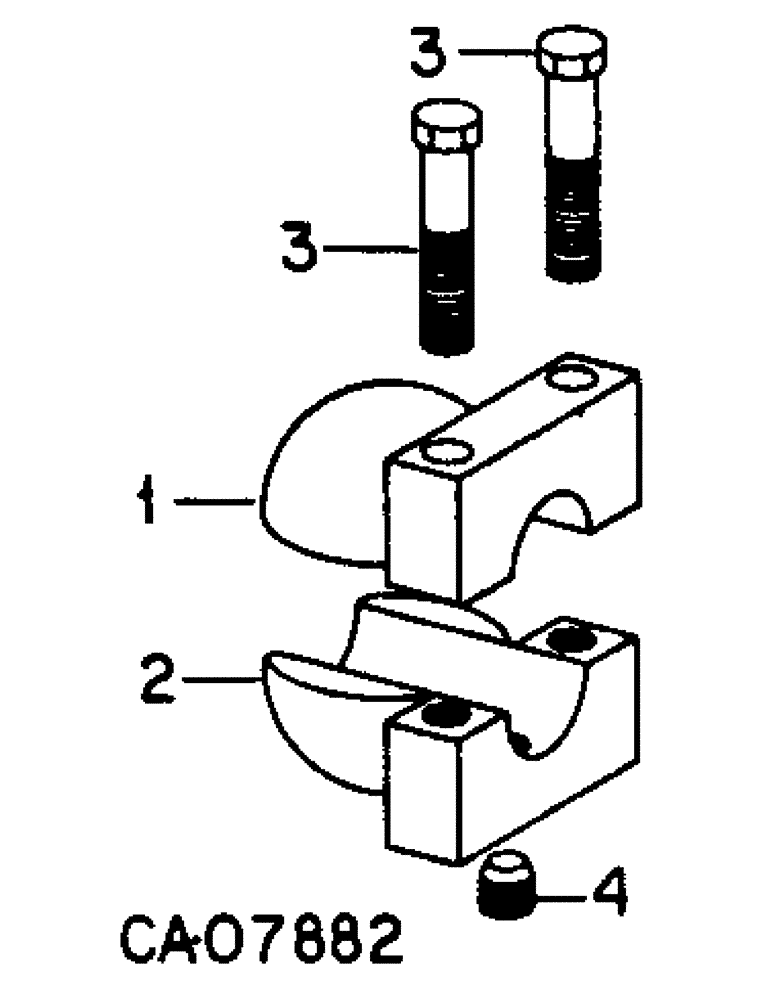

Схема запчастей Case IH 3688HC - (09-14) - FRAME, THREE POINT HITCH SPLIT COUPLER BALL (12) - FRAME
2
1
3
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1252366C91

KIT

PARTS ACCESSORY, coupler ball half, Consists of

1шт.

1

1252305C1

BALL

coupler half

2шт.

2

1252306C1

BALL

coupler half

2шт.

3

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

M12 x 50 mm class 8.8

4шт.

4

30384R1

SET SCREW,Hex Soc, M12 x 16, Cup Pt

SCREW, M12 x 16 c/pt pln hdl/hs set

2шт.
