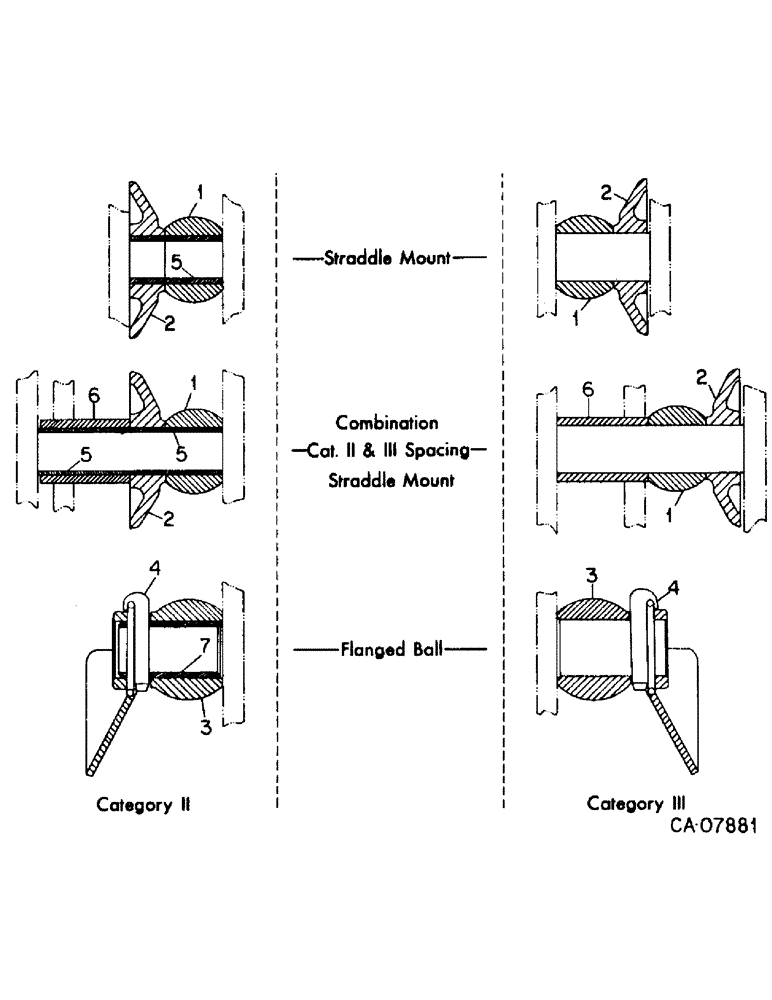

Запчасти Case IH 3688HC (09-13) - FRAME, THREE POINT HITCH BALLS, CAT. III (12) - FRAME

1

224783C1

BALL

cat III plain

2шт.

2

1263454C1

FLANGE

CONE, guide

2шт.

3

224742C2

BALL

ASSY, cat III flange

2шт.

4

224781C1

PIN,11.13mm OD

ASSY, ball retainer

2шт.

5

1263456C1

SPACER

ball, cat 2/3 bushing, For use w/cat. II tools

4шт.

6

1252271C1

BUSHING

cat III spacer

2шт.

7

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

ball, cat 2/3 bushing, For use w/cat II tools

2шт.

1252021C92

BALL

PARTS ACCESSORY, cat III plain ball, Consists of Ref. 1, 2, 5 and 6

1шт.

1252023C91

BALL

PARTS ACCESSORY, cat III flanged ball, Consists of Ref. 3, 4 and 7

1шт.
