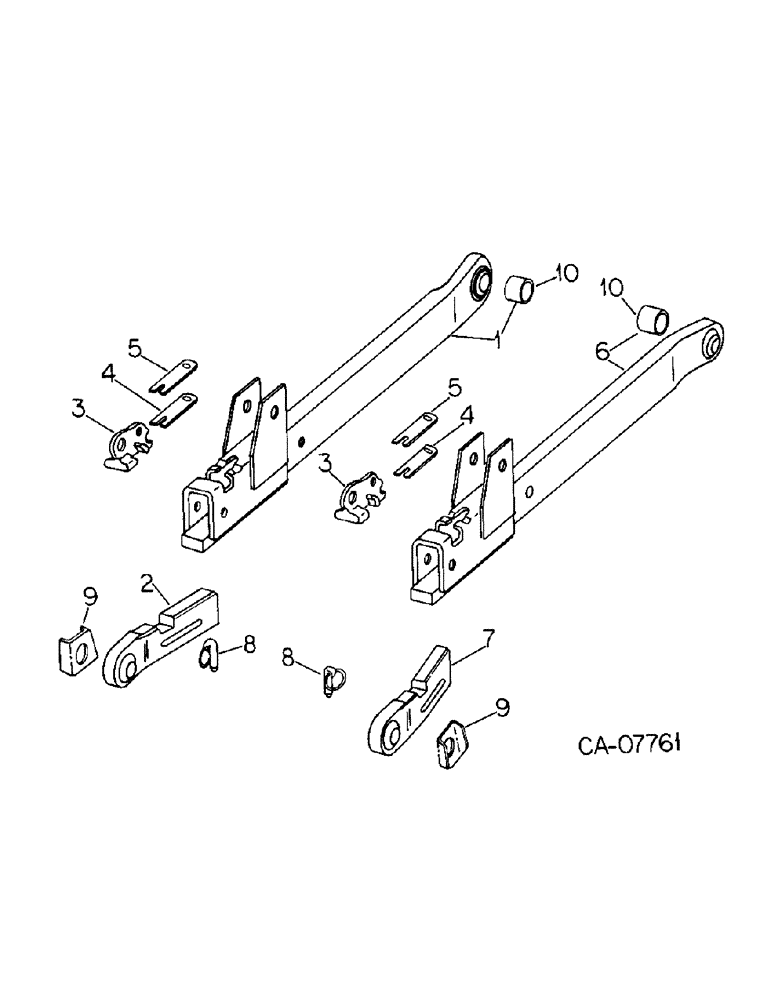

Запчасти Case IH 3688HC (09-09) - FRAME, THREE POINT HITCH, CAT. II, TELESCOPING LOWER LINK (12) - FRAME

1

1255280C91

LINK

W/BUSHING, front section, LH

1шт.

2

398371R11

DRAG LINK

LINK ASSY, rear section, LH

1шт.

20126R1

PIN,1/2" x 2", Coiled

1шт.

3

398373R1

LATCH

2шт.

4

382192R1

SPRING

loader link latch

2шт.

5

382193R1

SPRING

stiffener

2шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

5/16-NF x 1/2 pln type 5

2шт.

6

1255281C91

LINK

W/BUSHING, front section, RH

1шт.

7

398372R11

DRAG LINK

LINK ASSY, rear section, RH

1шт.

20126R1

PIN,1/2" x 2", Coiled

1шт.

8

517758R91

SPLIT PIN/SAFETY PIN

PIN ASSY, drawbar

2шт.

9

404787R1

SHIELD

linch pin

2шт.

10

71807C1

BUSHING,25.5mm ID x 32mm OD x 41.4mm L

front ball, part of Ref. 1 and 6

2шт.
