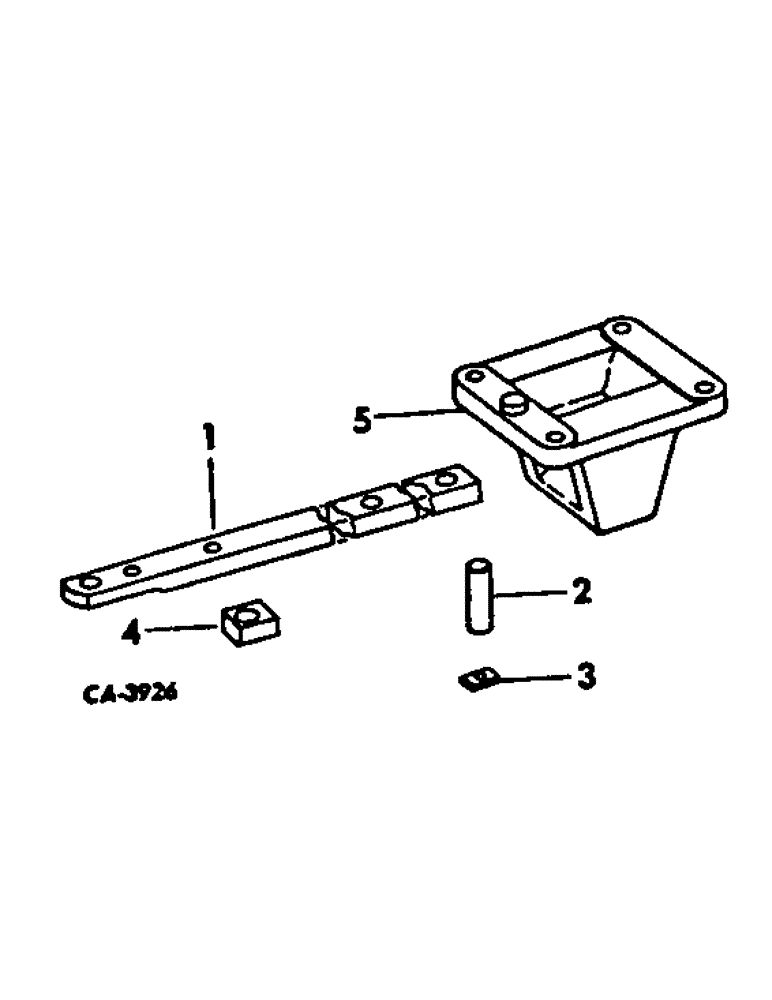

Запчасти Case IH 3688HC (09-08) - FRAME, SWINGING DRAWBAR, ONE PIECE, PART OF THREE POINT HITCH ATTACHMENT (12) - FRAME

1

1252172C1

BAR

DRAWBAR, swinging, 1616 mm

1шт.

2

108505C1

PIN

swinging drawbar

1шт.

3

67828C1

RETAINER

swinging drawbar pin

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

108507C1

BLOCK

swinging drawbar stop

2шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

3/4 x 1-3/4 pln type 5

2шт.

271734

ROTOR,Hex, 5/8" - 11 x 4 3/4", Gr 5

5/8 x 4-3/4 type 5

2шт.

125489

NUT, 5/8 type 5

2шт.

5

SUPPORT ASSY, swinging drawbar pivot, Refer to rear frame and covers, group 7

1шт.
