(09-05) - FRAME, THREE POINT HITCH BALLS, CAT II

Запчасти Case IH 3688HC (09-05) - FRAME, THREE POINT HITCH BALLS, CAT II (12) - FRAME

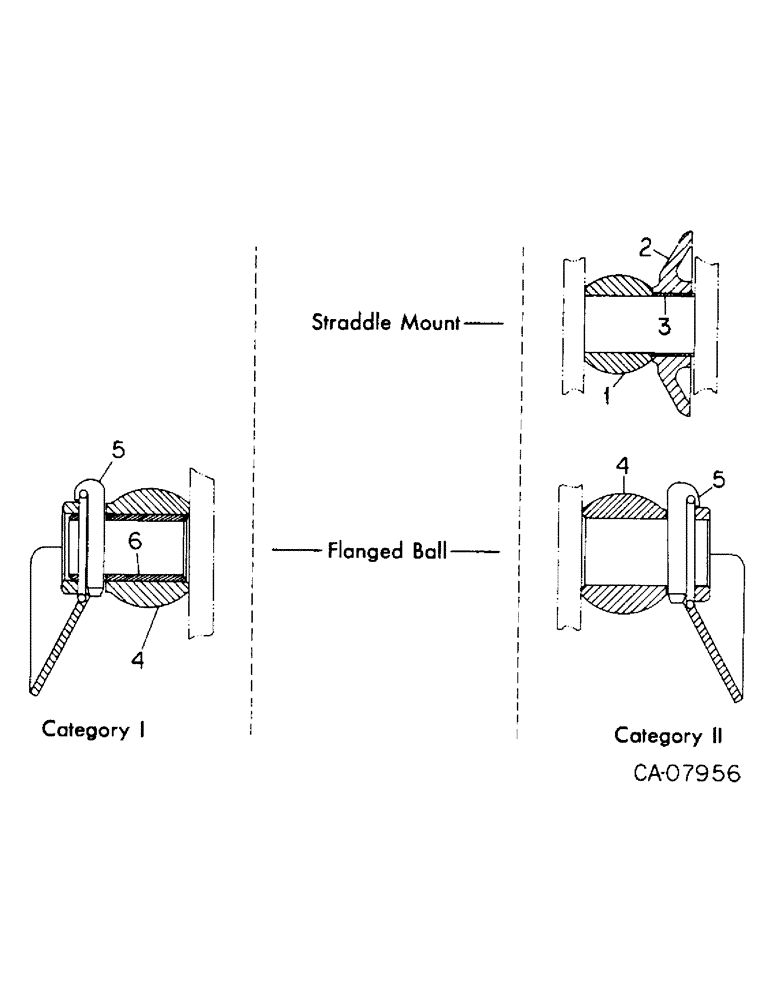

Схема запчастей Case IH 3688HC - (09-05) - FRAME, THREE POINT HITCH BALLS, CAT II (12) - FRAME
5
2
5
3
4
1
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1252047C1

BALL

cat II plain

2шт.

2

1263454C1

FLANGE

CONE, guide

2шт.

3

1263458C1

SPACER

guide cone

2шт.

4

1252044C1

BALL

ASSY, cat II flanged

2шт.

5

224781C1

PIN,11.13mm OD

ASSY, ball retainer

2шт.

6

380583R1

BUSHING

cat II ball spacer, Used w/cat I implements

2шт.

1252102C92

BALL

PARTS ACCESSORY, cat II plain, Consists of Ref. 1, 2 and 3

1шт.

1252104C91

BALL

PARTS ACCESSORY, cat II flanged, Consists of Ref. 4 and 5

1шт.
