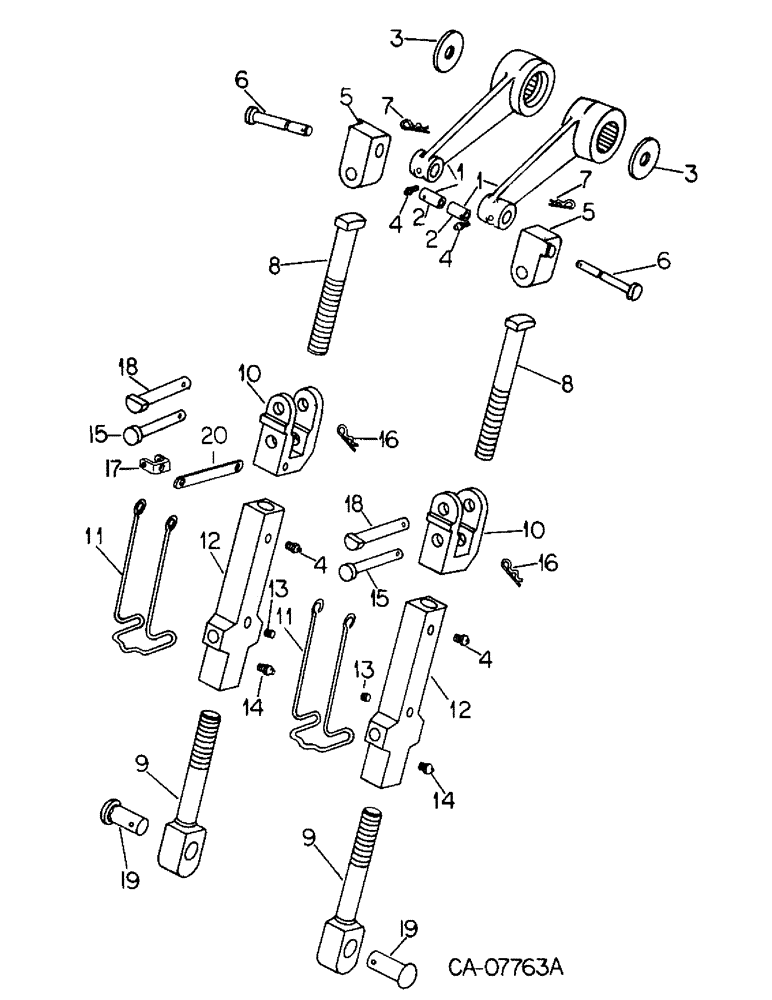

Запчасти Case IH 3688HC (09-03) - FRAME, THREE POINT HITCH ATT, CAT. II, LIFT LINK ASSEMBLIES (12) - FRAME

1

382156R11

ARM

ASSY, rockshaft, Includes Ref. 2

2шт.

2

383357R1

BUSHING,28.56mm ID x 33.38mm OD x 63.5mm L

rockshaft arm

2шт.

3

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retainer

2шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 1-1/4 pln type 5

2шт.

4

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 hole lub

4шт.

5

71434C1

TRUNNION

SWIVEL, lift link

2шт.

6

108603C1

AXLE PIN

PIN, leveling screw pivot

2шт.

Q3482

WASHER

1.156 x 1.750 x .105 pln

2шт.

7

520175R1

CLIP

PIN, quick att. cotter

2шт.

8

108584C1

ROD

upper leveling

2шт.

9

108583C1

ROD

lower leveling

2шт.

10

108585C1

YOKE

lift link

2шт.

11

123464C1

CLAMP

turnbuckle lock, bail

2шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 type 5

2шт.

120394

WASHER,3/8", SAE

WASHER, 3/8 cad p/t lock type 5

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

2шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 type 5

1шт.

12

72877C1

TURNBUCKLE

lift link

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

13

444691

PLUG

1/4-18 pln hex/skt auto pipe

2шт.

14

273349

FITTING

1/4 ptf x/short lub

2шт.

15

27357R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3.750 pln hd type 5

1шт.

16

480523R1

HAIR PIN COTTER

quick attachable

2шт.

17

1252260C1

BRACKET

spring assy storage, Not required with telescoping lower link

1шт.

18

108582C1

PIN

3/4 x 3-3/4 headed

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

19

109088C3

CARRIAGE BOLT

PIN, leveling screw housing sq neck

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

20

1263344C1

BAR

spring storage bracket

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

380579R91

BUSHING

PARTS ACCESSORY, bushing and pin adapter, For use w/category I tools and implements when mounted on a category II three point hitch, Consists of

1шт.

380580R91

PIN

1шт.

PIN (NSS)

1шт.

HANDLE (NSS)

1шт.

380581R1

BUSHING

1шт.

380582R1

BUSHING

1шт.

380583R1

BUSHING

2шт.

380584R1

BUSHING

2шт.

11484R

BUSHING

SPACER

2шт.
