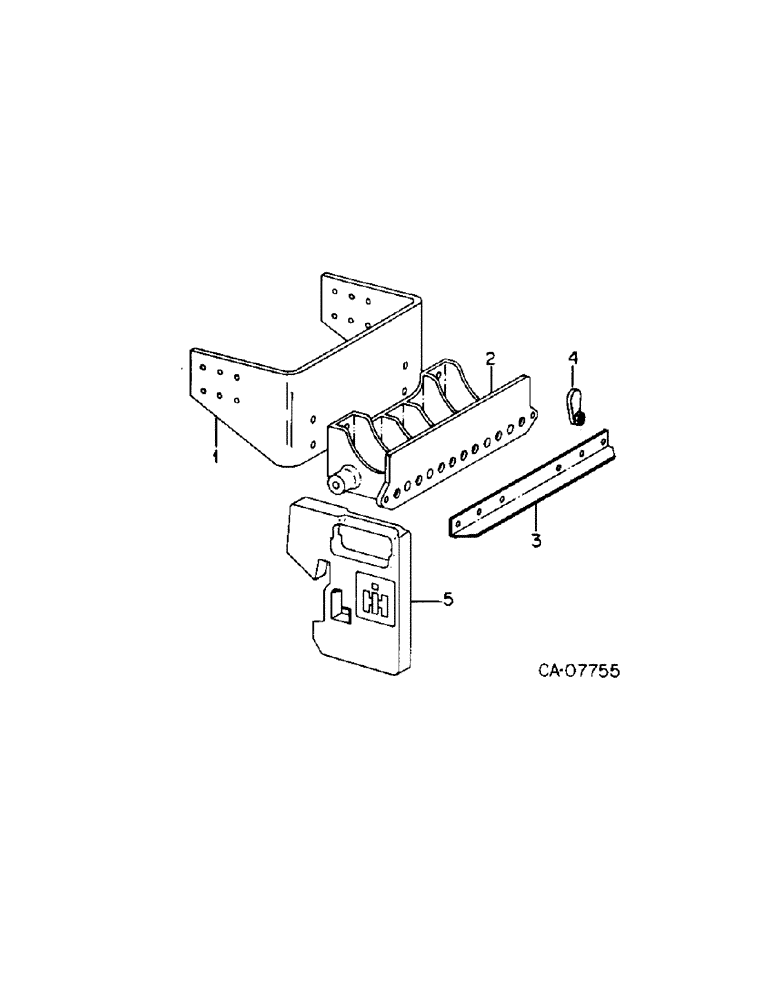

Запчасти Case IH 3688HC (09-02) - FRAME, FRONT END WEIGHT BRACKET AND WEIGHTS (12) - FRAME

1

130235C1

ADAPTER

bracket

1шт.

30170R1

NUT,M16, Cl 10

M16 phc class 10

12шт.

934738R1

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

12шт.

30178R1

WASHER,M17.5 x 30 x 4, HT

17.8 x 30 x 4 mm phc

24шт.

2

1280669C1

BRACKET

front weight, Replaces 120428C1 by also ordering (4) washers, 636946R1

1шт.

30555R1

BOLT,Hex, M20 x 75, 8.8

M20 x 75 mm class 8.8

4шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga. hard

2шт.

933815R1

LOCK WASHER,M20

WASHER, 20 mm lock

2шт.

30171R1

NUT,M20, Cl 10

M20 phc class 10

4шт.

636946R1

WASHER

.81 x 2.0 x .25

4шт.

3

536043R1

BAR

frt weight retaining

1шт.

4

74202C1

CAM

frt weight locking

2шт.

930145R1

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

2шт.

30178R1

WASHER,M17.5 x 30 x 4, HT

17.8 x 30 x 4 mm phc

2шт.

30170R1

NUT,M16, Cl 10

M16 phc class 10

2шт.

5

148347C1

WEIGHT,100 LB

WEIGHT, 100 lb., weights serviced only as machine attachment

1шт.

108511C91

PACKAGE

PARTS ACCESSORY, hammer strap, For tractors equipped with one- piece swinging drawbar

1шт.
