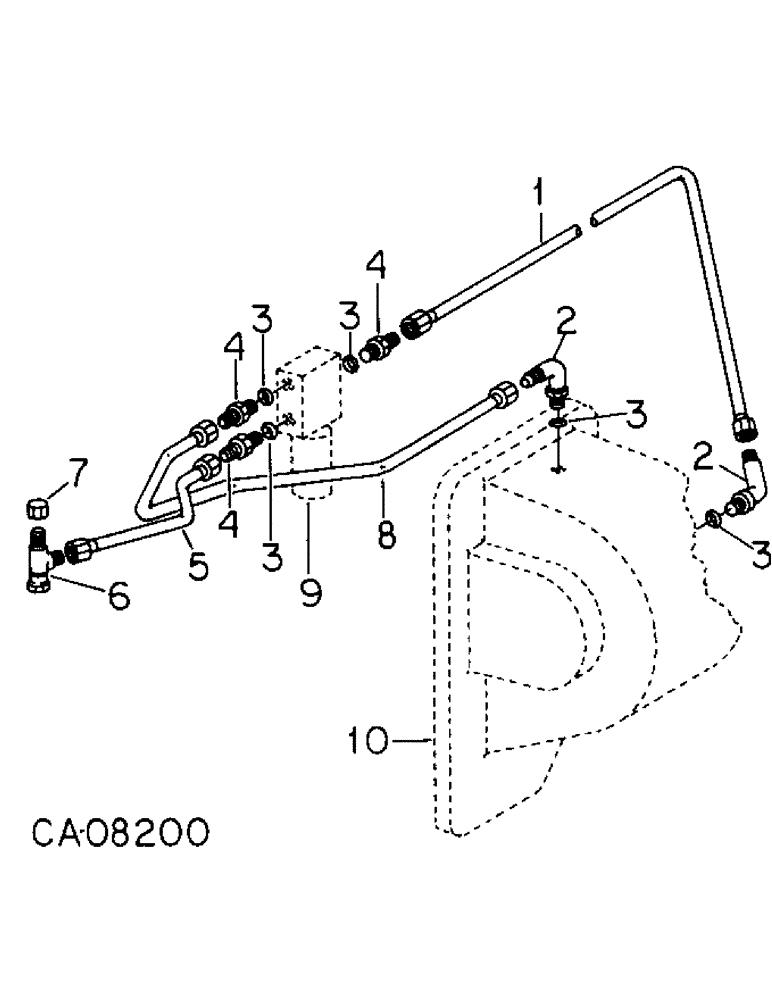

Запчасти Case IH 3688HC (10-61) - HYDRAULICS, ALL WHEEL DRIVE CONTROLS, HYD., FOR TRACTORS W/ ALL WHEEL DRIVE W/ TWO PIECE DRIVE SHAFT (07) - HYDRAULICS

1

1264596C1

TUBE

ASSY, AWD gear box pressure

1шт.

2

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90 deg.

2шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

5шт.

4

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

3шт.

5

1259696C1

HYD TUBE

TUBE ASSY, solenoid valve supply

1шт.

6

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

3/8 C-Z hyd fld tube swivel

1шт.

7

9403371

CAP,37 Degree, 9/16"-18

3/8 C-Z hyd flared tube, For tractors equipped w/vertical acting seat

1шт.

8

1264595C1

HYD TUBE

TUBE ASSY, solenoid valve dump

1шт.

9

VALVE ASSY, block and solenoid, Refer to block and solenoid valve trans brake valve, group 7

1шт.

10

HOUSING, transfer case, Refer to transfer case listing, group 7

1шт.
