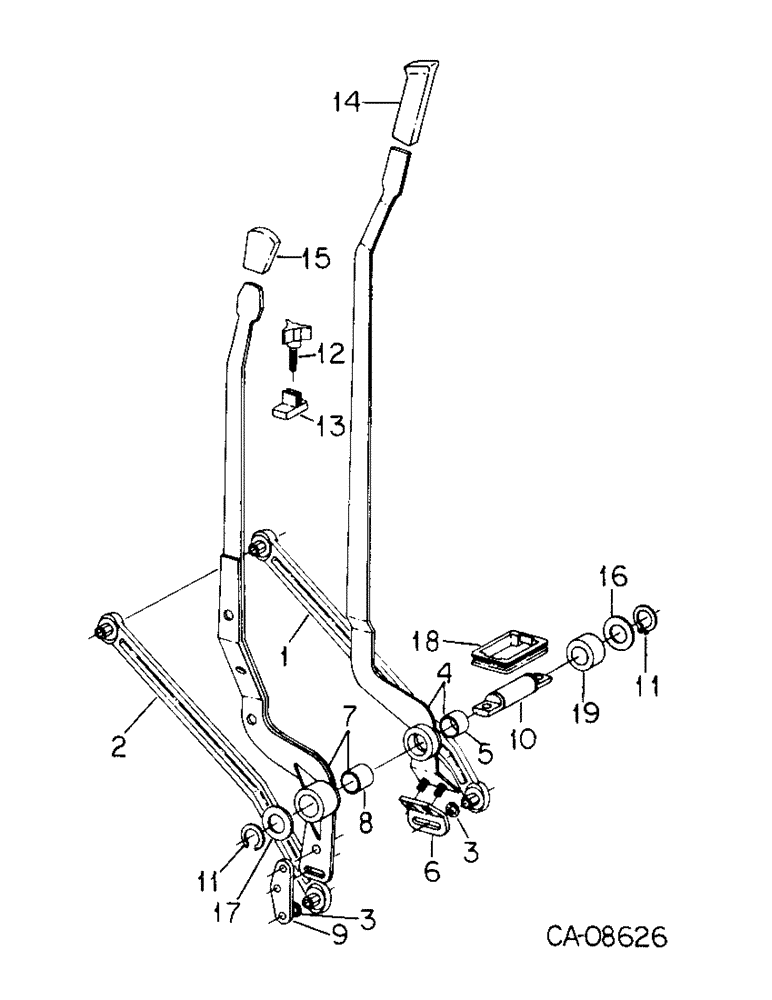

Запчасти Case IH 3688HC (10-55) - HYDRAULICS, HYDRAULIC DRAFT CONTROL LINKAGE, CAT. III, 3088, 3288 AND 3688HC TRACTORS (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
120314C2
ROD
ASSY, position control
1шт.
180080
BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd
5/16 x 1-1/8 type 5
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
2
1258035C1
ROD
ASSY, draft control
1шт.
180080
BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd
5/16 x 1-1/8 type 5
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
3
532409R1
SPRING WASHER
serrated spring steel, handle slots
2шт.
4
1280102C91
HANDLE
ASSY, position control, Includes Ref. 5
1шт.
5
144003C1
BUSHING
position control handle
1шт.
6
1253150C1
SUPPORT
position handle extension
1шт.
30986R1
NUT,M8 x 1.25, Flg, Cl 8
M8 class 10 h/flg
2шт.
7
1258033C1
HANDLE
ASSY, draft control, Includes Ref. 8
1шт.
8
383236R1
BUSHING,19.15mm ID x 20.65mm OD x 25.4mm L
draft control handle
1шт.
9
1258076C1
SUPPORT
PLATE, draft control
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
2шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
4шт.
10
104532C2
SHAFT
control pivot
1шт.
931143R1
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
M10 x 20 pln class 8.8
2шт.
11
661652R1
SNAP RING,#75, Ext
2шт.
12
1259821C1
KNOB
fluted
1шт.
20600R1
WASHER
.281 x .750 x .105
1шт.
13
1259806C1
BAR
ASSY, position control handle
1шт.
14
1259765C1
GRIP
position control handle, Use w/handle, 1280102C91
1шт.
14
1259760C1
BALL KNOB
KNOB, position control handle, Use w/handle, 1253118C93
1шт.
15
1259760C1
BALL KNOB
KNOB, draft control handle
1шт.
16
16066R1
WASHER
.781 x 1.500 x .054 pln, 1 required for inner position
1шт.
17
16066R1
WASHER
.781 x 1.500 x .054 pln, As required for outer position
1шт.
18
135877C2
SEAL, control
1шт.
19
130702C1
SPACER
pivot shaft
1шт.
Выбрано товаров: 32
