(02-03[A]) - MISCELLANEOUS, TOOL BOX

Запчасти Case IH 3688HC (02-03[A]) - MISCELLANEOUS, TOOL BOX Accessories & Attachments / Miscellaneous

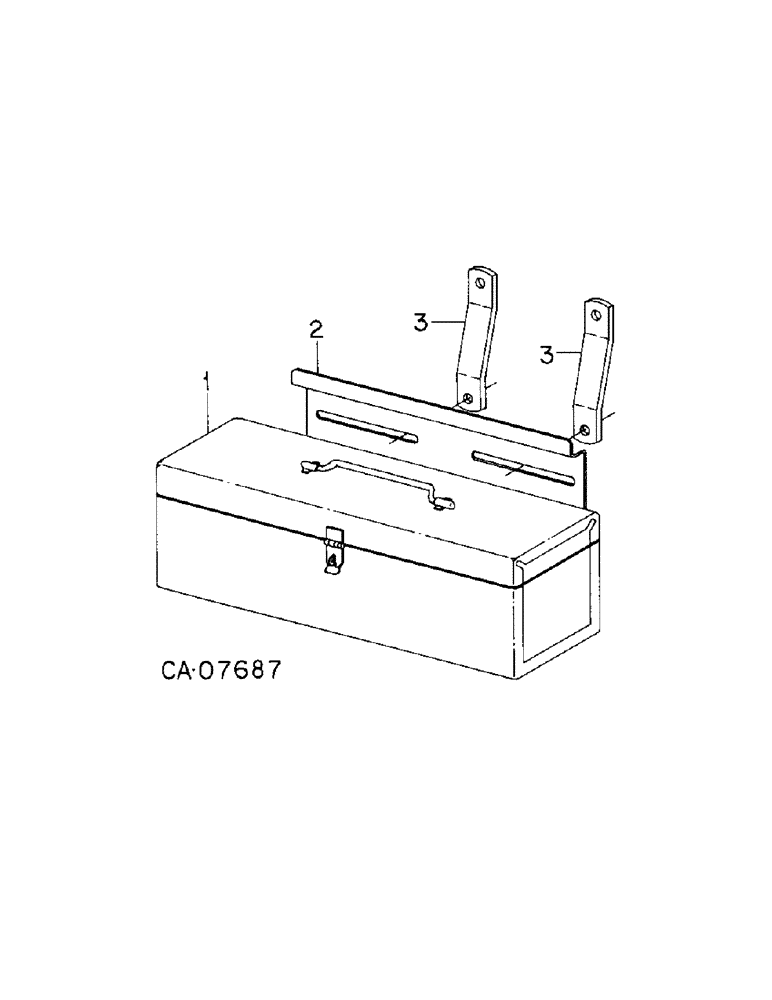

Схема запчастей Case IH 3688HC - (02-03[A]) - MISCELLANEOUS, TOOL BOX Accessories & Attachments / Miscellaneous
3
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1251868C1

BOX

ASSY

1шт.

2

1251869C1

BRACKET

SUPPORT

1шт.

3

1259591C1

SUPPORT

STRAP, tool box mounting

2шт.

30066R1

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

934185R1

LOCK WASHER,M16

WASHER, 16 mm lock

4шт.

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

17.8 x 30 x 3 mm

2шт.

30170R1

NUT,M16, Cl 10

M16 phc class 10

4шт.
