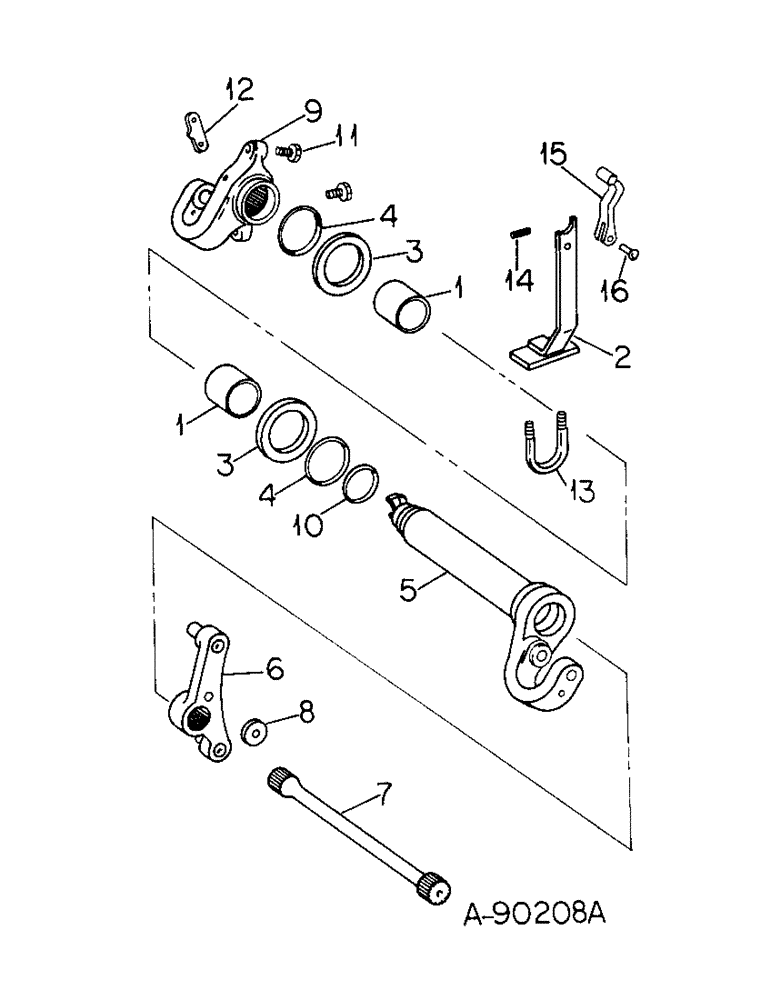

Запчасти Case IH 3688HC (10-51) - HYDRAULICS, DRAFT SENSING, TRACTOR WITH CATEGORY II, THREE POINT HITCH (07) - HYDRAULICS

1

394838R91

BUSHING

ASSY, lining and case

2шт.

2

391055R11

ARM

ASSY, sensing lower

1шт.

3

385099R2

RETAINER

crank arm o-ring

2шт.

4

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

3-3/8 x 3-3/4 x 3/16, crank arm o-ring retiner

2шт.

5

64835C1

ARM

ASSY, RH crank

1шт.

6

64837C1

BRACKET

ASSY, torsion bar anchor

1шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8 x 3-3/4 pln type 5

2шт.

400839R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 pln hdn

2шт.

7

393243R1

SHAFT

BAR, torsion spring

1шт.

8

354617R1

WASHER

RETAINER, torsion bar

1шт.

179882

PIN

1/2 x 1-1/8 pln type 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

9

398097R1

ARM

LH crank

1шт.

10

383260R1

O-RING,0.21" Thk x 2.475" ID, -333, Cl 5, 75 Duro

2-1/2 x 2-7/8 x 3/16 LH crank arm

1шт.

11

383261R2

ADJUSTMENT SCREW

stop adjusting

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

12

383262R1

SUPPORT

RETAINER, crank arm

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

381931R1

BOLT (SPREADER),3/8" - 16 x 3.05" W x 3.40" L

U-BOLT, sensing arm

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

14

138632

SET SCREW,Hex Soc, 1/4"-20 x 1 1/2"

SCREW, 1/4 x 1-1/2 pln o/pt hdl/hs set

1шт.

109084

NUT,1/4"-20, G5

1шт.

15

390118R1

ARM

sensing, upper

1шт.

16

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.
