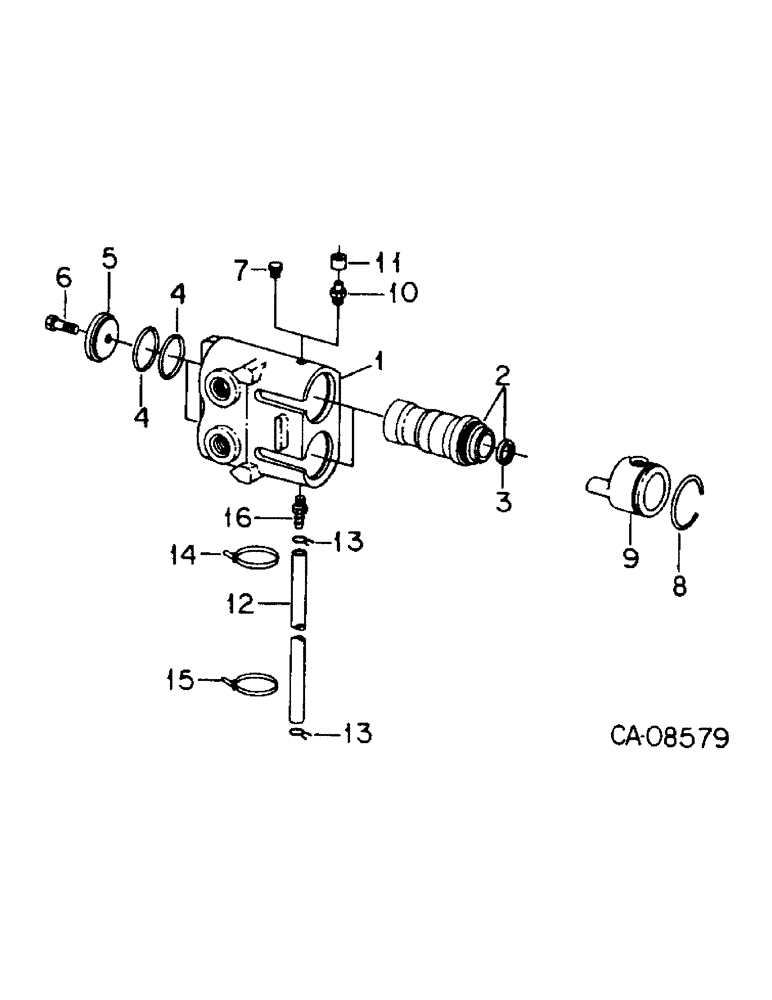

Запчасти Case IH 3688HC (10-39) - HYDRAULICS, FEMALE COUPLER, ISO (07) - HYDRAULICS

1272192C91

COUPLING

COUPLER ASSY, female, ISO coupler, Includes Ref. 1 - 6

1шт.

1

1272470C1

VALVE BODY

BODY, coupler

1шт.

2

1272489C91

ELEMENT

cartridge, Includes Ref. 3

2шт.

3

1282217C1

SEALING RING

RING, sealing

2шт.

4

25173R1

O-RING,-130, 90 Duro, 1.612" ID x .103" Thk

1-5/8 x 1-13/16 class 6

4шт.

5

1272490C1

WASHER

WASHER, cartridge retaining

2шт.

6

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

7

FOR444613

PLUG

1/8-27 pln h/hd auto pipe

1шт.

8

1272197C1

RING, SNAP

RING, retaining

2шт.

9

1272196C1

CAP

coupler dust

2шт.

10

1272765C1

FITTING,1/8" - 27 NPT

coupler drain

1шт.

11

1272764C1

SEAL

SEAL, coupler drain

1шт.

12

1272488C1

HYDRAULIC HOSE,6.35 mm ID x 736.00 mm, SAE 30R6 or SAE 30R7

Coupler drain 6.35 mm ID x 736.00 mm, SAE 30R6 or SAE 30R7

1шт.

13

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP, no. 8 type E spring wire hose

1шт.

14

291207C1

CLAMP

STRAP, hose

1шт.

15

289862C1

CABLE TIE,3/16" x 7"

STRAP, hose

1шт.

16

1282227C1

FITTING

drain hose

1шт.

1282456C1

KIT

coupler identification product graphic

1шт.
