Запчасти Case IH 3688HC (10-24) - HYDRAULICS, POWER STEERING CYLINDER & CONNECTIONS,TRACTORS W/ALL WHEEL DRIVE W/TWO PIECE DRIVE SHAFT (07) - HYDRAULICS

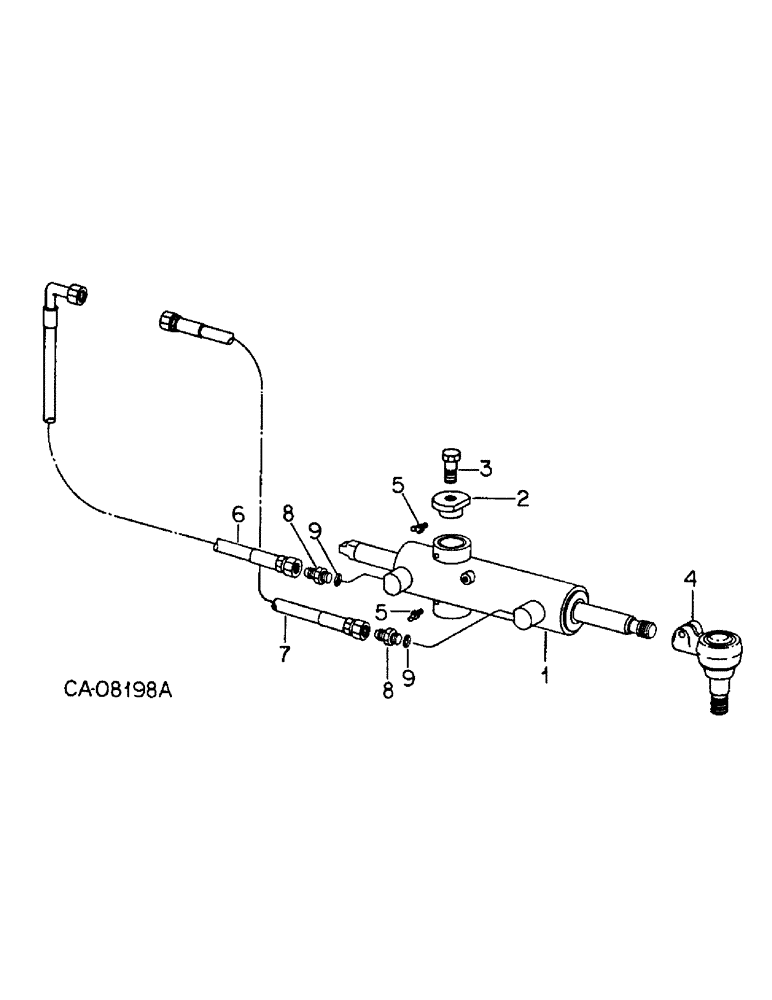

Схема запчастей Case IH 3688HC - (10-24) - HYDRAULICS, POWER STEERING CYLINDER & CONNECTIONS,TRACTORS W/ALL WHEEL DRIVE W/TWO PIECE DRIVE SHAFT (07) - HYDRAULICS
3
8
5
4
7
2
1
9
5
8
6
9

Артикул

Название

Примечание

Количество

1

145411C92

CYLINDER BLOCK

CYLINDER ASSY, hyd steering, Refer to power steering cylinder this group for list of components

1шт.

2

531237R1

CAP

trunnion

2шт.

3

531238R1

BOLT,Hex, 5/8" - 18 x 1.6", Cl 8

trunnion cap

2шт.

1270887C1

WASHER

trunnion cap bolt

2шт.

4

1264690C1

END

steering cylinder

1шт.

614451R1

WASHER

1.031 x 1.750 x .105

1шт.

272322

WASHER

7/8-NF pln slt-thick type 5

1шт.

103399

PIN,5/32" x 1 3/4"

Split (Cotter), 5/32" x 1 3/4"

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

69981R1

LOCK NUT,3/8"-16, GB

NUT, 3/8 p/t lock type 5

1шт.

5

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 ptf short 65 deg. lub

2шт.

6

1251871C1

HYDRAULIC HOSE

HOSE, LH steering

1шт.

7

1251872C1

HOSE

RH steering

1шт.

8

148831C1

FITTING

hose

2шт.

9

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 class 5

2шт.

Выбрано товаров: 15
