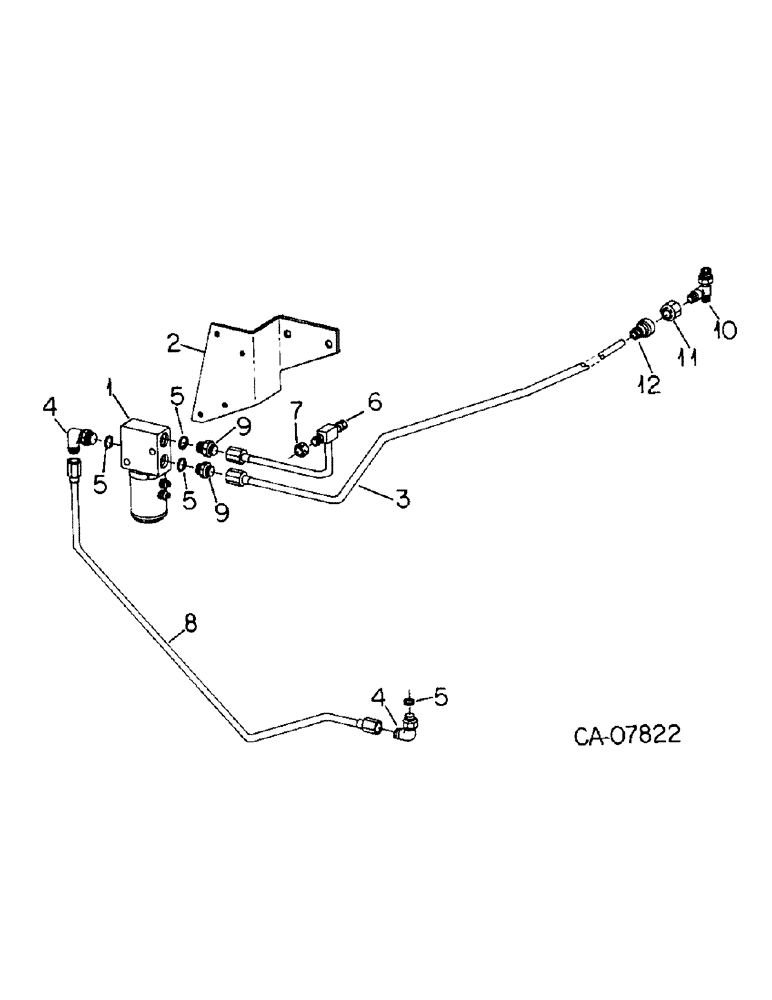

Запчасти Case IH 3688HC (10-20) - HYDRAULICS, TRANS BRAKE VALVE AND CONNECTIONS (07) - HYDRAULICS

1

VALVE ASSY, block and solenoid, Refer to block and solenoid valve listing this group

1шт.

2

1250148C1

BRACKET

solenoid mounting

1шт.

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 phc p/t type 8

2шт.

3

1250167C1

TUBE,0.375" OD, 596.754" Length

ASSY, trans brake solenoid supply

1шт.

4

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90 deg.

2шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

4шт.

6

1250144C1

TUBE

ASSY, dump

1шт.

7

9403371

CAP,37 Degree, 9/16"-18

3/8 C-Z hyd flared tube

1шт.

8

130379C2

HYD TUBE

TUBE ASSY, piston supply

1шт.

9

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

2шт.

10

673526R1

TEE

1/2 OD tube

1шт.

11

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 C-Z hyd fld tube style B

1шт.

12

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING, 1/2 x 3/8 C-Z hyd fld tube redr

1шт.
