Запчасти Case IH 3688HC (10-19[A]) - HYDRAULICS, BLOCK & SOLENOID VALVE, FOR DIFFERENTIAL LOCK, FOR TRANS BRAKE, FOR ALL WHEEL DRIVE ATT. (07) - HYDRAULICS

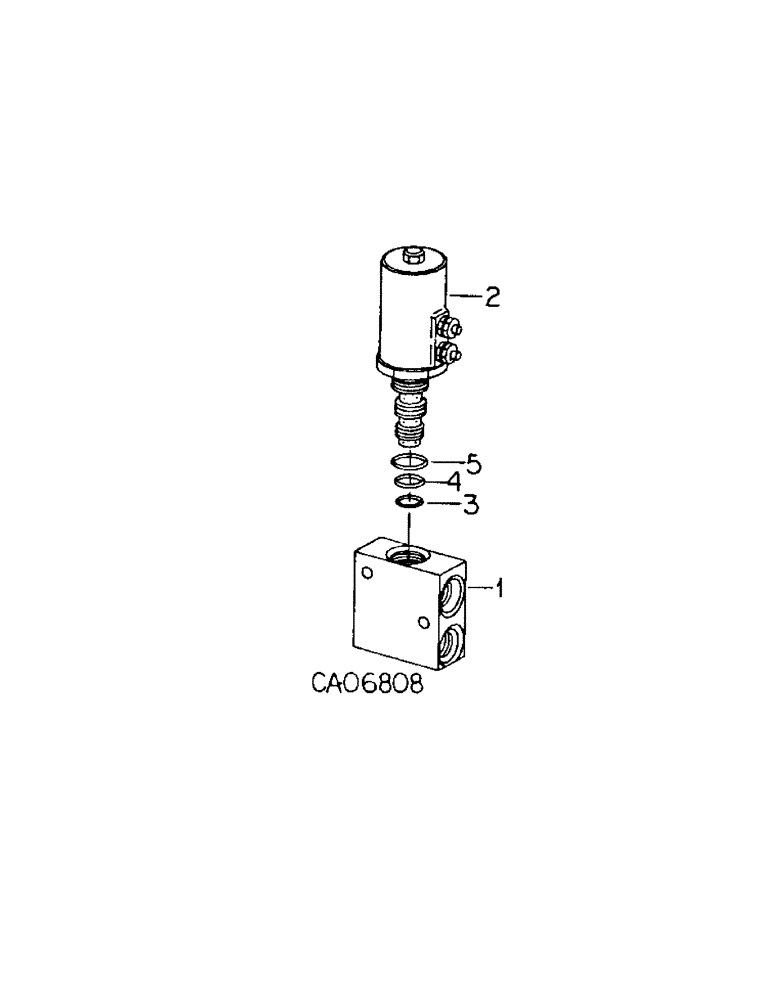

Схема запчастей Case IH 3688HC - (10-19[A]) - HYDRAULICS, BLOCK & SOLENOID VALVE, FOR DIFFERENTIAL LOCK, FOR TRANS BRAKE, FOR ALL WHEEL DRIVE ATT. (07) - HYDRAULICS
5
2
4
3
1

Артикул

Название

Примечание

Количество

137767C94

VALVE

ASSY, block and solenoid, 1000 PSI, or

1шт.

1272538C91

VALVE

ASSY, block and solenoid, 400 PSI

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK

1шт.

2

NSS

NOT SOLD SEPARAT

SOLENOID

1шт.

Not serviced separately, Order complete valve assy.

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

4

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 x 9/16 class 6

1шт.

Use w/valve assy. 137767C94

1шт.

5

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 class 6

1шт.

Use w/valve assy. 137767C94

1шт.

1272698C1

PACKAGE

KIT, seal, Includes: Parts Listed Below

1шт.

Use w/ valve assy, 1272538C91

1шт.

NSS

NOT SOLD SEPARAT

GASKET

1шт.

NSS

NOT SOLD SEPARAT

O-RING

1шт.

NSS

NOT SOLD SEPARAT

O-RING

1шт.

NSS

NOT SOLD SEPARAT

RING, back-up

2шт.

NSS

NOT SOLD SEPARAT

RING, back-up

2шт.

Выбрано товаров: 17
