Запчасти Case IH 3688HC (10-18) - HYDRAULICS, HYDROSTATIC POWER STEERING HAND PUMP (07) - HYDRAULICS

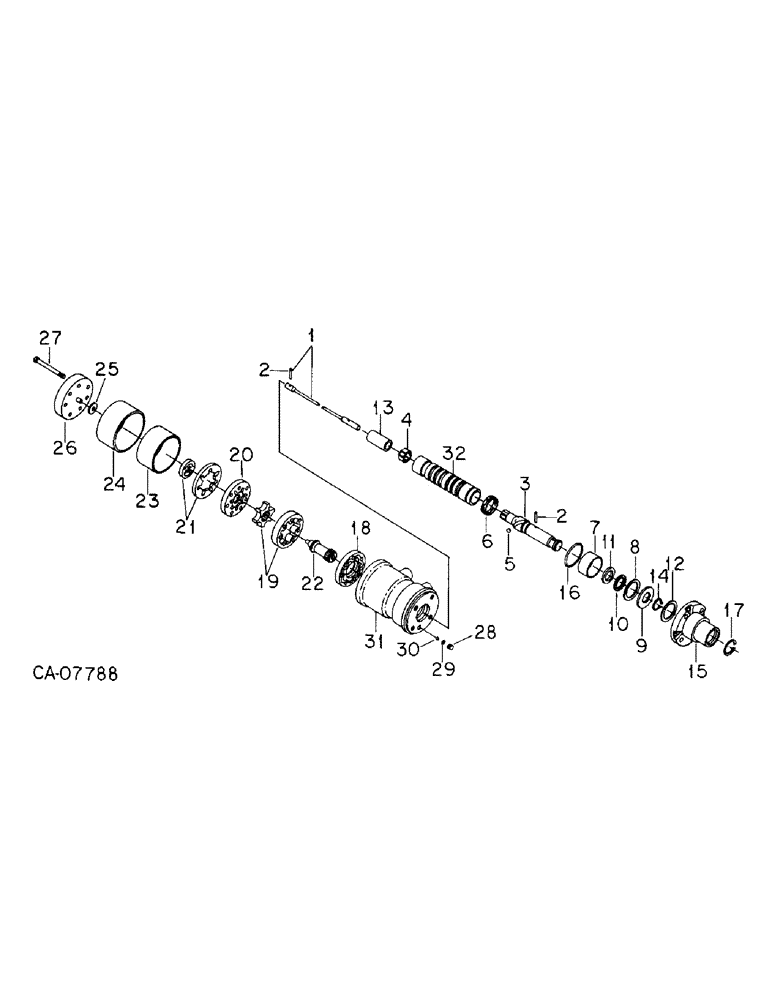

Схема запчастей Case IH 3688HC - (10-18) - HYDRAULICS, HYDROSTATIC POWER STEERING HAND PUMP (07) - HYDRAULICS
8
16
27
13
18
5
31
25
9
14
15
2
24
10
30
20
22
23
28
1
29
2
21
7
17
32
12
19
3
4
6
11
26

Артикул

Название

Примечание

Количество

*

1263446C91

PUMP

ASSY, internal hydrostatic steering, Replaces 224675C91

1шт.

*

1263446C91R

REMAN-STEERING VALVE

3088, 3288, 3688, 3688HC, All INTERNATIONAL DIESEL TRACTOR, ASSY, internal hydrostatic steering (1/81-12/86)

1шт.

*

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

1

224713C1

BAR

ASSY, torsion, Use w/pump, 224675C91

1шт.

1

535055R1

BAR

ASSY, torsion, Use w/pump, 1263446C91

1шт.

2

535056R1

PIN

torsion bar needle

1шт.

3

924665C2

SHAFT

input

1шт.

4

535058R1

RING

drive

1шт.

5

17010R1

BALL,5/16" Dia

1шт.

6

79012C1

PACKAGE

KIT, ball retainer

1шт.

7

79013C1

SPACER

1шт.

8

928469C1

WAVE WASHER

wave

1шт.

9

535087R1

THRUST WASHER

thrust

1шт.

10

379783R91

THRUST BEARING

BEARING, thrust

1шт.

11

379785R1

THRUST WASHER

WASHER, thrust

1шт.

12

67567C1

PACKAGE

KIT, shim

1шт.

13

537277R1

SPACER

drive link

1шт.

14

928752C1

RING

retaining

1шт.

15

70115C1

COVER

upper

1шт.

*

27586R1

12 PT SCREW,Flg, 5/16"-18 x 3/4"

SCREW, 5/16 x .750 PHC AST 12PT FLG

4шт.

16

535091R1

RING

seal

1шт.

17

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

18

535093R1

SPACER

1шт.

19

537282R1

ROTOR

SET

1шт.

20

535096R1

MANIFOLD

1шт.

21

535097R1

ROTOR

COMMUTATOR ASSY

1шт.

22

538069R1

DRIVE

GEAR, drive link

1шт.

23

537279R1

SEAL

SEAL, rotor

1шт.

24

71360C1

RETAINER

seal

1шт.

25

535100R1

THRUST WASHER

1шт.

26

535101R1

COVER

PLATE ASSY, end, cover

1шт.

27

535102R1

BOLT,Spcl, Hex, 5/16" - 18 x 2.50", Gr 5

end cover

7шт.

29

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD tube class 6

1шт.

28

71085C1

PLUG

W/O-RING

1шт.

30

17008R1

BALL,1/4" Dia

Grade 25 metal 1/4" Dia

1шт.

31

BODY ASSY, Not serviced separately, Order pump assy 1263446C91

1шт.

32

SPOOL, body, Not serviced separately, Order pump assy 1263446C91

1шт.

*

405788R91

PACKAGE

vane and spring

1шт.

*

224712C1

SEAL KIT

PACKAGE, hydrostatic steering assy service, Consists of

1шт.

*

SEAL (NSS)

1шт.

*

WASHER (NSS)

1шт.

*

SEAL (NSS)

1шт.

Выбрано товаров: 42
