Запчасти Case IH 3688HC (10-12) - HYDRAULICS, SEQUENCE RAISE PARTS ACCESSORY, 3088, 3288 AND 3688HC TRACTORS WITH DRAFT CONTROL (07) - HYDRAULICS

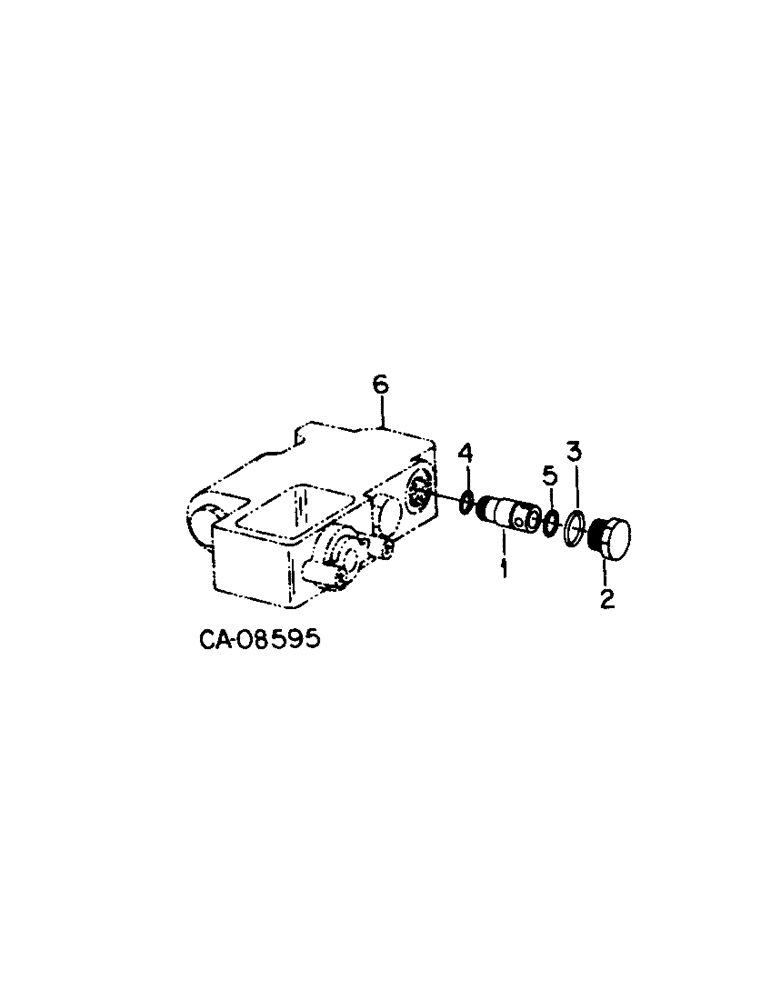

Схема запчастей Case IH 3688HC - (10-12) - HYDRAULICS, SEQUENCE RAISE PARTS ACCESSORY, 3088, 3288 AND 3688HC TRACTORS WITH DRAFT CONTROL (07) - HYDRAULICS
6
2
3
1
5
4

Артикул

Название

Примечание

Количество

63737C91

KIT

PARTS ACCESSORY, sequence raise, To permit simultaneous raising of tractor hitch and operating implement assist wheels, Consists of Ref. 1 - 5 and

1шт.

INSTRUCTIONS (NSS)

1шт.

1

SLEEVE, sequence raise, Not serviced separately, Order parts accessory, 63737C91

1шт.

2

9410361

PLUG

3/4 C-Z str thd o-ring boss

1шт.

3

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

4

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Class 6

1шт.

5

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 x 15/16 class 6

1шт.

6

VALVE ASSY, unloading, Refer to unloading valve listing, this group

1шт.

127925C92

VALVE

ASSY, priority

1шт.

Выбрано товаров: 9
