Запчасти Case IH 3688HC (10-11[A]) - HYDRAULICS, UNLOADING VALVE, 3088, 3288 AND 3688HC TRACTORS WITH DRAFT CONTROL (07) - HYDRAULICS

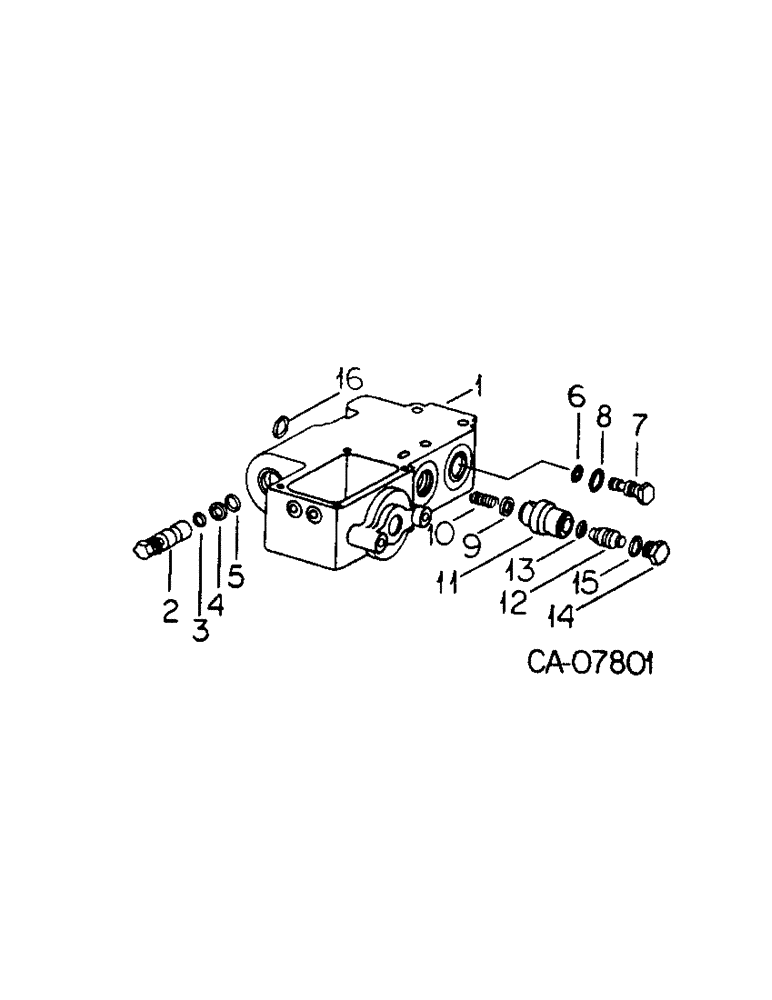

Схема запчастей Case IH 3688HC - (10-11[A]) - HYDRAULICS, UNLOADING VALVE, 3088, 3288 AND 3688HC TRACTORS WITH DRAFT CONTROL (07) - HYDRAULICS
6
10
12
16
14
5
2
1
3
11
15
13
4
8
9
7

Артикул

Название

Примечание

Количество

1

108520C1

BODY

unloading valve

1шт.

2

396729R93

VALVE

relief, 2300 PSI

1шт.

3

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 class 5

1шт.

4

378985R2

BACK-UP RING

back-up

1шт.

5

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 class 6

1шт.

6

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Class 6

1шт.

7

108519C1

PLUG

simulataneous lift

1шт.

8

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 class 6

1шт.

9

108522C1

WASHER

unloading valve seal

1шт.

10

128100C1

SPRING

unloading valve

1шт.

11

108610C1

HOUSING

BODY ASSY, unloading

1шт.

12

108715C1

PISTON

ASSY, unloading valve

1шт.

13

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

13/16 x 1-1/16 clas 6

1шт.

14

324605R1

PLUG

unloading valve

1шт.

15

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

Выбрано товаров: 16
