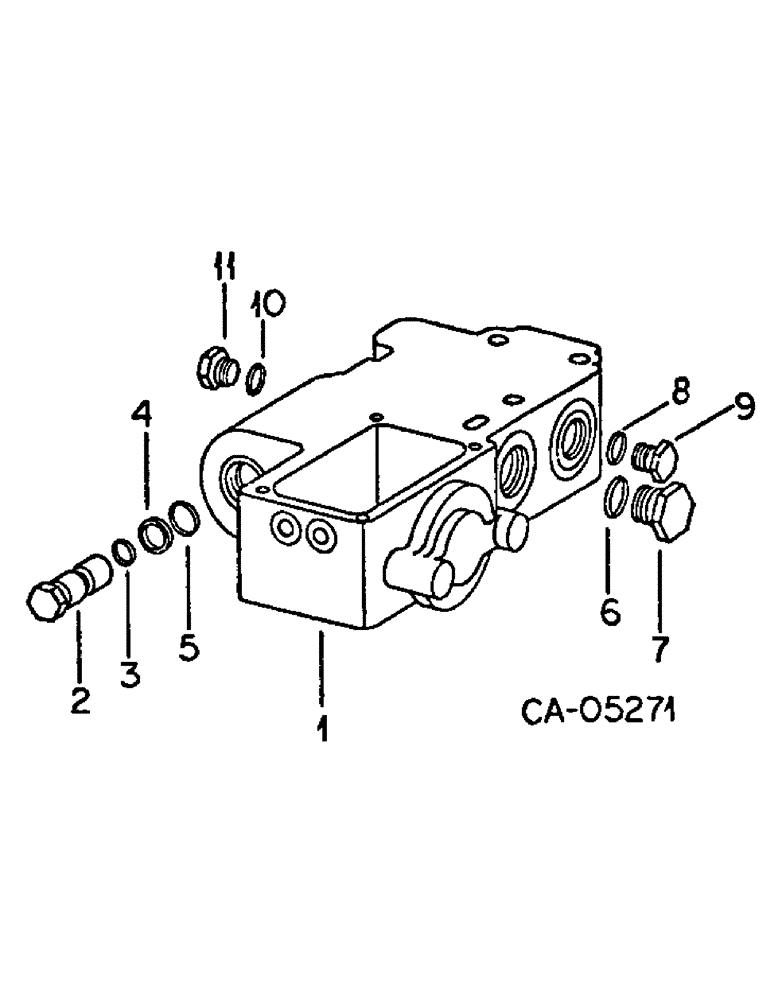

Запчасти Case IH 3688HC (10-10) - HYDRAULICS, RELIEF VALVE MANIFOLD, 3088, 3288 AND 3688HC TRACTORS WITHOUT DRAFT CONTROL (07) - HYDRAULICS

108554C92

MANIFOLD

relief valve, 2300 PSI

1шт.

1

BODY, relief valve manifold, Not serviced separately, Order valve assy 108554C92

1шт.

2

396729R93

VALVE

pilot relief

1шт.

3

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 class 5

1шт.

4

378985R2

BACK-UP RING

back-up rev chamber

1шт.

5

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 class 5

1шт.

6

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

1шт.

7

324605R1

PLUG

str thd o-ring boss

1шт.

8

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

9

9410361

PLUG

3/4 C-Z str thd o-ring boss

1шт.

10

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

11

9410358

PLUG

3/8 C-Z str thd o-ring boss

1шт.
