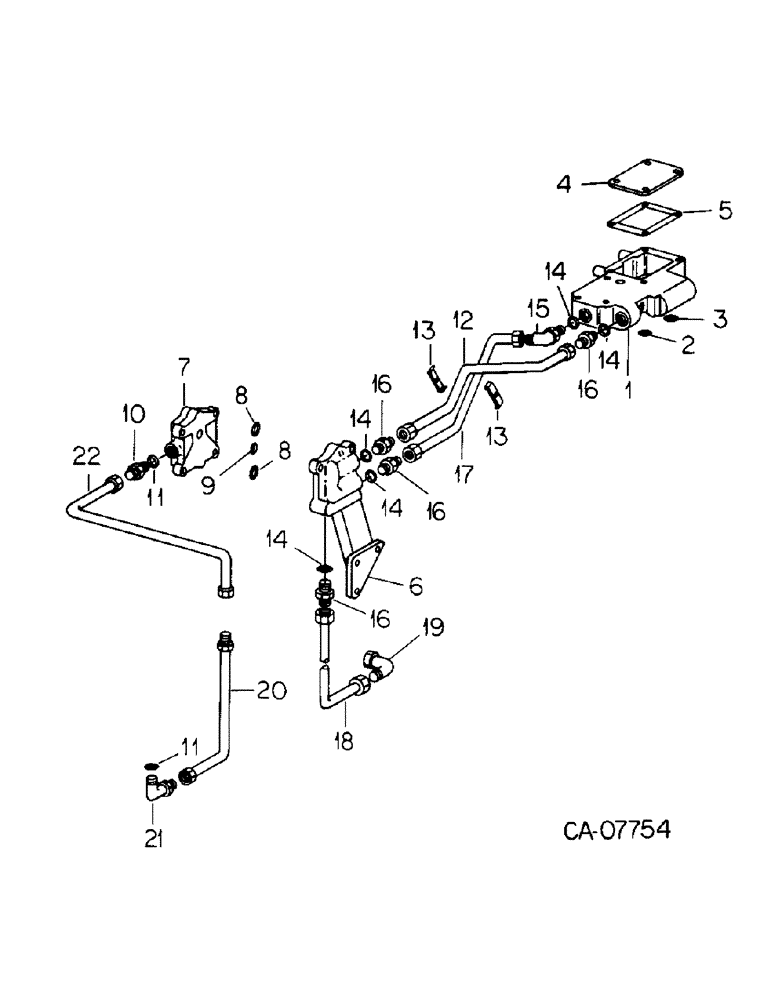

Запчасти Case IH 3688HC (10-02) - HYDRAULICS, MANIFOLD RELIEF VALVE AND CONNECTIONS, 3088, 3288 AND 3688HC TRACTORS (07) - HYDRAULICS

1

108554C92

MANIFOLD

ASSY, relief valve, 2300 PSI, Refer to relief valve manifold this group for list of components

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

2

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 class 6

1шт.

3

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 class 6

1шт.

4

108514C1

COVER

linkage access

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

5

108515C1

GASKET

cover

1шт.

6

104573C1

BRACKET

aux valve mounting

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

7

123081C1

COVER

valve mounting bracket

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 class 6

2шт.

9

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 class 6

1шт.

10

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short swivel

1шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

12

104620C2

HYD TUBE

TUBE ASSY, hyd tandem supply

1шт.

13

139099C1

CLAMP

tube

2шт.

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4 phc p/t lock type 5

1шт.

14

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

5шт.

15

9411107

ELBOW,45 Degree, 1 1/16"-12 x 1 1/16"-12, O-Ring

3/4 C-Z hyd fld adj 45 deg.

1шт.

16

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 C-Z hyd fld short swivel

4шт.

17

139085C1

HYD TUBE

TUBE ASSY, hyd open supply

1шт.

18

104629C1

HYD TUBE

TUBE ASSY, aux valve return

1шт.

19

9402867

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, NPTF

3/4 C-Z hyd flared tube 90 deg.

1шт.

20

104811C3

HYD TUBE

TUBE ASSY, supercharger LH

1шт.

21

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

5/8 C-Z hyd fld adj 90 deg.

1шт.

22

104814C1

HYD TUBE

TUBE ASSY, supercharger RH, tractors w/double aux valve

1шт.

22

104813C1

HYD TUBE

TUBE ASSY, supercharger RH, tractors w/triple aux valves

1шт.
