Запчасти Case IH 3688HC (13-36) - SUPERSTRUCTURE, COMPRESSOR, PULLEYS AND BELTS (05) - SUPERSTRUCTURE

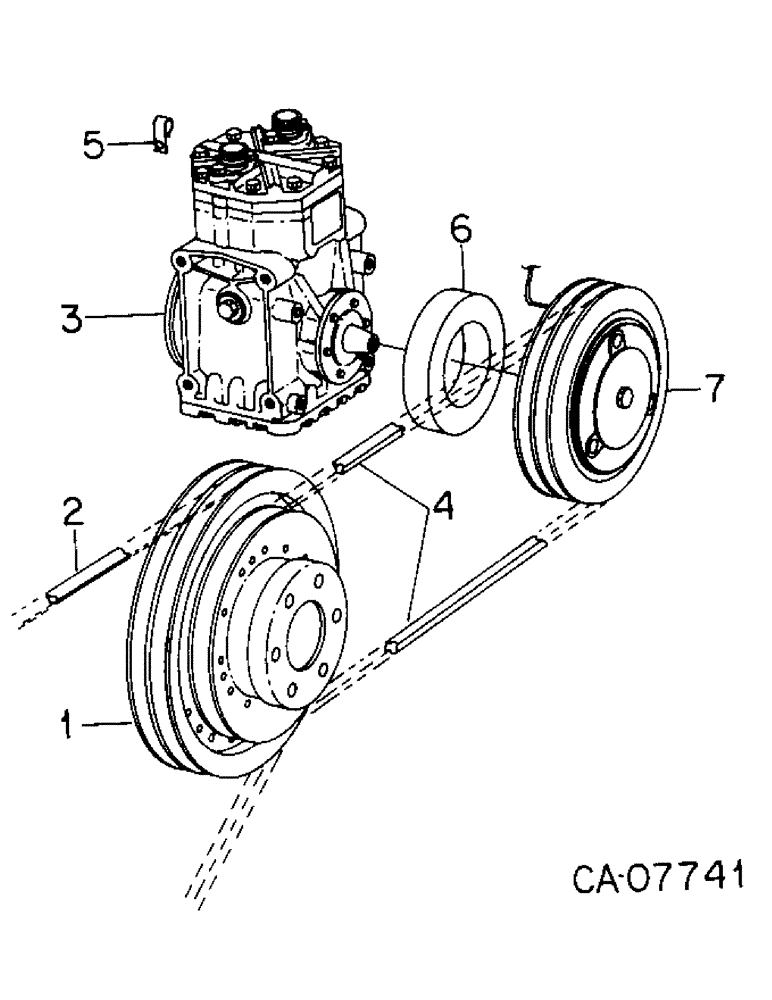

Схема запчастей Case IH 3688HC - (13-36) - SUPERSTRUCTURE, COMPRESSOR, PULLEYS AND BELTS (05) - SUPERSTRUCTURE
3
7
6
2
1
4
5

Артикул

Название

Примечание

Количество

1

537071R1

PULLEY

PULLEY, fan, water pump and compressor, 3 belt grooves, 3688 and 3688HC tractors, 3288 tractors, Use crankshaft pulley, See ENG-5 catalog

1шт.

2

1213572C1

V-BELT

Fan Drive matched dual set, 3288 tractors

1шт.

2

131201C91

BELT

BELT, fan drive V-matched dual set, 3688 and 3688HC tractors

1шт.

3

1255750C91

COMPRESSOR

COMPRESSOR ASSY, air conditioner, Refer to compressor listing this group for list of components

1шт.

3

1924008C2

REMAN-A/C COMPRESSOR

Remanufactured Compressor Assy

1шт.

3

1924009C1

CORE-A/C COMPRESSOR

Return Number

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

BOLT, 3/8 x 1-1/8 type 5, 3288 tractors

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

WASHER, .406 x 1.000 x .056, 3288 tractors

4шт.

19571R1

BOLT,Hex, 3/8"-16 x 1 1/8", G2

BOLT, 3/8 x 1-1/8 type 1, 3688 and 3688HC tractors

4шт.

4

280210C2

BELT,53.50" L

Compressor drive, 3288 tractor

1шт.

4

1250587C1

V-BELT,0.50" W

Compressor Drive, 3688 and 3688HC Tractors

1шт.

5

366460R1

CABLE CLIP

CLIP, wire harness

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT, 3/8 x 1/2 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

70833C1

SEAL

SEAL, foam dust

1шт.

7

143405C91

PULLEY

CLUTCH ASSY, compressor, 7.00 in. dia., Service parts are

1шт.

143406C1

PULLEY ASSY.

PULLEY

1шт.

28598R1

BOLT,Hex, 5/16" - 24 x 1 1/4", Gr 5

BOLT, no substitute

1шт.

1283257C1

WASHER

WASHER, no substitute

1шт.

143407C1

COIL ASSY.

COIL

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

BOLT

4шт.

221438H1

BEARING ASSY,29.99mm ID x 62mm OD x 26.99mm W

BEARING

1шт.

Выбрано товаров: 23
