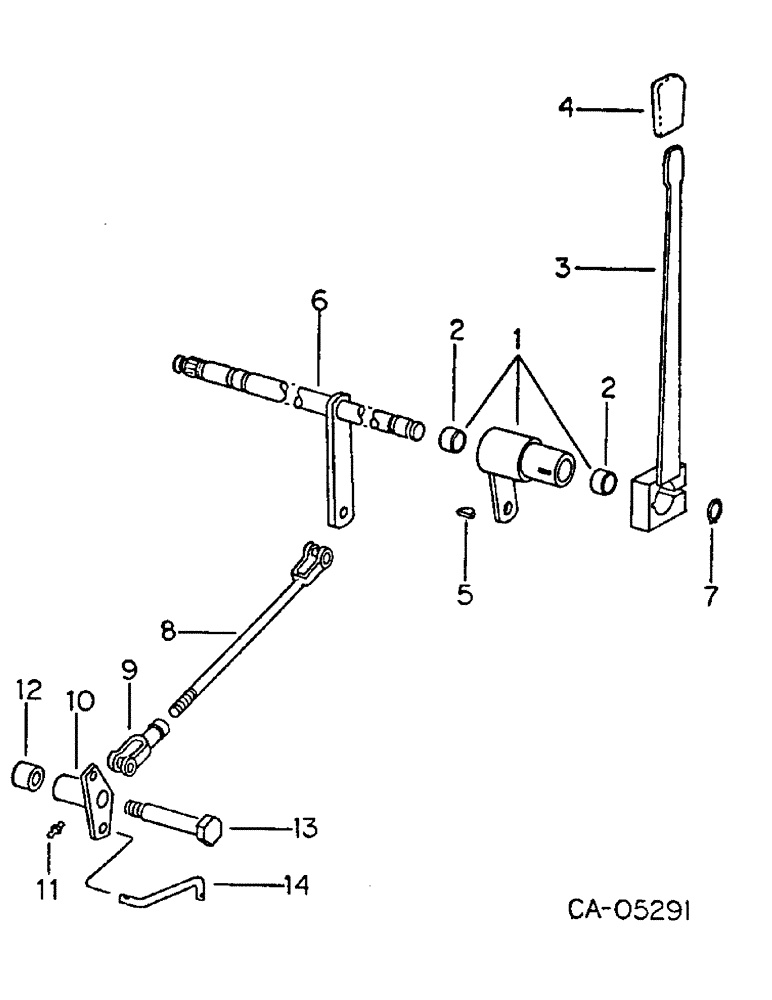

Запчасти Case IH 3688 (07-43) - DRIVE TRAIN, ALL WHEEL DRIVE CONTROLS, TRACTORS WITH ALL WHEEL DRIVE, WITH ONE PIECE DRIVE SHAFT (04) - Drive Train

1

104685C91

SHAFT

HUB ASSY, trans rod actuating

1шт.

2

363768R1

BUSHING

Optional w/142373C1

2шт.

2

142373C1

BUSHING

Optional w/363768R1

2шт.

3

1252993C3

LEVER

AWD control

1шт.

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

M10 x 35 class 8.8

1шт.

30284R1

NUT,M10, Cl 10

M10 class 10

1шт.

933965R1

LOCK WASHER,M10

1шт.

4

1253018C2

KNOB

AWD lever

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

5

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

6

1252770C2

SHAFT

ASSY, park interlock

1шт.

7

23090R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

2шт.

8

104693C1

ROD

ASSY, AWD actuating

1шт.

9

116537

SPACER

CLEVIS, 7/16-20 x 2-1/2 pln sht adj

1шт.

271505

BODY

7/16-NF pln type 5

1шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, 7/16 x 1.190 pln clevis

2шт.

61252H

WASHER

.469 x .750 x .105 pln

4шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

10

144274C1

LEVER

BELLCRANK ASSY, trans drive

1шт.

11

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 hole lub

1шт.

12

385822R1

SPACER, bellcrank

1шт.

13

385827R1

BOLT,Hex, 5/8" - 11 x 3 3/4"

bellcrank pivot

1шт.

14

144275C1

ROD

trans drive shifter

1шт.

496-21047

WASHER

.469 x .922 x .051 pln

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.
