Запчасти Case IH 3688 (07-40) - DRIVE TRAIN, SADDLE ASSY, TRACTORS WITH ALL WHEEL DRIVE, WITH ONE PIECE DRIVE SHAFT (04) - Drive Train

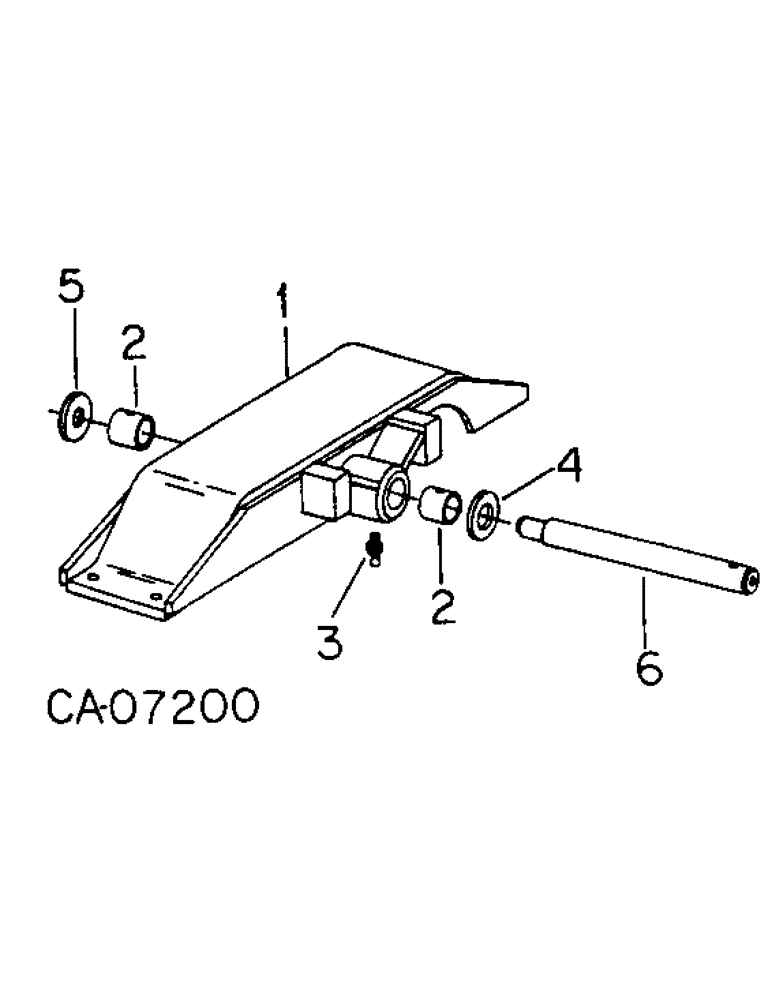

Схема запчастей Case IH 3688 - (07-40) - DRIVE TRAIN, SADDLE ASSY, TRACTORS WITH ALL WHEEL DRIVE, WITH ONE PIECE DRIVE SHAFT (04) - Drive Train
5
1
2
4
2
3
6

Артикул

Название

Примечание

Количество

1

1259667C1

SADDLE

axle mounting

1шт.

20523R1

BOLT,5/8" x 2 1/2", Gr 8

5/8-NF x 2-1/2 type 8

4шт.

144423H

LOCK NUT,5/8" - 18, GC

NUT, LOCK, 5/8"-18, GC

4шт.

2

1251734C1

BUSHING

pivot pin

2шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

4

1251735C1

WASHER

pivot tube frt

1шт.

5

1251736C1

WASHER

pivot tube rear

1шт.

6

1251737C1

AXLE PIN

PIN, pivot

1шт.

28431R1

HEADED PIN,3/8" x 6 1/8"

PIN, 3/8 x 6-1/8 hd type 5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Выбрано товаров: 10
