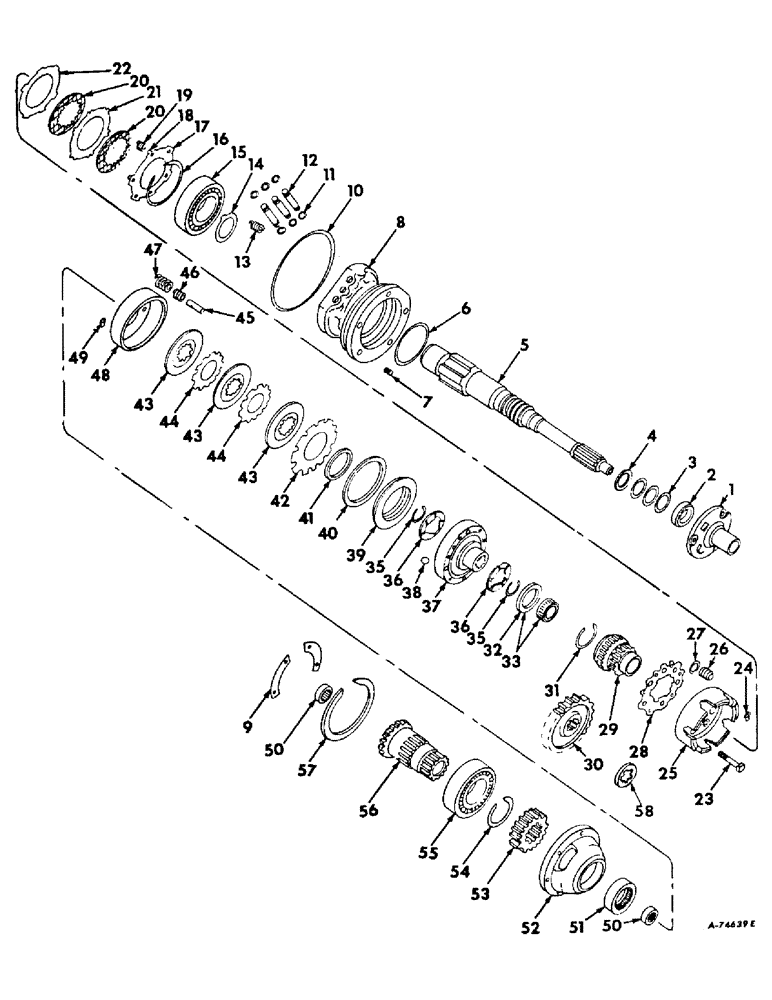

Запчасти Case IH 3688 (07-29) - DRIVE TRAIN, TORQUE AMPLIFIER (04) - Drive Train

234574A2

REMAN-TORQUE AMPLIF

IER

1шт.

1944123C1

CORE-TORQUE AMPLIF

Return Part Number

1шт.

1944122C3R

REMAN-TORQUE AMPLIF

IER

1шт.

1944039C2

CORE-TORQUE AMPLIF

IER Return Part Number, Torque Amplifier

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8 x 7/8 pln type 5

3шт.

1

380101R2

CAGE

CAGE, IPTO drive shaft brg

1шт.

2

535209R92

SEAL,49.02mm ID x 66.72mm OD x 7.92mm Thk

SEAL, IPTO shaft brg cage oil

1шт.

3

380234R1

RING

RING, clutch shaft seal

3шт.

4

384182R1

RETAINER

RETAINER, IPTO drive shaft brg

1шт.

5

SHAFT ASSY, clutch, Includes Ref. 7

1шт.

Not serviced separately, Order package 1252884C91.

1шт.

6

22414R1

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

O-RING, 5 x 5-1/4 class 5

1шт.

7

138666

SCREW,Hdls Hex Skt, 5/16" - 18 x 5/16"

SCREW, 5/16 x 5/16 o/pt hdl/hs set, or

1шт.

7

222459

SCREW

SCREW, 5/16 x 5/16 pln f/pt hdl/hs set

3шт.

8

380235R11

HOUSING

CARRIER ASSY, torque amplifier and IPTO

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8 x 7/8 pln type 5

5шт.

9

380081R1

PLATE

PLATE, drive gear bearing lock

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

BOLT, 3/8 x 1-1/8 pln type 5

4шт.

10

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

O-RING, 7-1/2 x 7-3/4 class 5, TA and IPTO drive carrier

1шт.

11

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O-RING, 1/2 x 5/8 class 6, oil inlet tube

6шт.

12

382353R1

HYD TUBE,0.625" OD, 4.32" Length

TUBE, oil inlet

3шт.

13

382337R1

SPRING

SPRING, torque amplifier drive gear lub baffle

2шт.

14

380238R4

BAFFLE

BAFFLE, torque amplifier drive gear lub

1шт.

15

ST3025

BALL BEARING,75mm ID x 130mm OD x 22mm W

BEARING, torque amplifier drive gear

1шт.

16

382346R1

RING, SNAP

RING SNAP RING, TA lock-up clutch internal snap

1шт.

17

PLATE ASSY, TA lock-up clutch backing

1шт.

Not serviced separately, Order package 75036C92.

1шт.

18

19841R1

DOWEL,1/4" x 1/2"

PIN, 1/4 x .500 pln hdn dowel

6шт.

19

382666R1

VALVE SPRING

SPRING, lock-up clutch

6шт.

20

PLATE, TA lock-up clutch driven

1шт.

Not serviced separately, Order package 75036C92.

1шт.

21

PLATE, TA lock-up clutch driving

1шт.

22

PLATE, TA lock-up clutch driving

1шт.

Not serviced separately, Order package 75036C92.

1шт.

23

860300R1

BOLT,Hex, 7/16" - 20 x 2 3/4", Gr 8

BOLT, 7/16-NF x 2-3/4 type 8

3шт.

24

382339R1

LOCK WASHER

WASHER, TA clutch carrier lock

3шт.

25

CARRIER, TA lock-up clutch

1шт.

Not serviced separately, Order package 1252884C91.

1шт.

181335

BOLT,Hex, 5/16" - 24 x 11/16", Gr 5

BOLT, Hex, 5/16"-24 x 11/16", G5, Full Thd

3шт.

26

382341R1

PISTON

PISTON, torque amplifier lock-up clutch

6шт.

27

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING, 3/4 x 1 class 5, lock-up clutch piston

6шт.

28

382340R2

GASKET

GASKET, TA lock-up clutch carrier

1шт.

29

GEAR ASSY, torque amplifier drive

1шт.

Not serviced separately, Order package 1252884C91.

1шт.

30

529093R2

GEAR

GEAR, torque amplifier driven, 51T

1шт.

31

382665R1

RING

RING, one way clutch retainer internal snap

1шт.

32

381086R1

RING

RING, sprag clutch seal

1шт.

33

73935C91

PACKAGE

PACKAGE, TA clutch service

1шт.

34

NOT USED THIS APPLICATION

1шт.

35

336000R1

SNAP RING,#175, 1.640", Ext

RING, 1.640 ext rect sect ret

2шт.

36

380240R1

THRUST WASHER

WASHER, hyd clutch carrier thrust

2шт.

37

CARRIER ASSY, hyd clutch

1шт.

Not serviced separately, Order package 1252884C91.

1шт.

38

17006R1

BALL

BALL, 3/16 grade 25 metal

1шт.

39

380242R1

PISTON

PISTON, hydraulic clutch

1шт.

40

380244R1

SEALING RING

RING, hyd clutch piston outer seal

1шт.

41

380243R1

RING

RING, hyd clutch piston inner seal

1шт.

42

PLATE, hyd clutch piston backing

1шт.

43

PLATE, hyd clutch driven

3шт.

Not serviced separately, Order package 75036C92.

1шт.

44

PLATE, hyd clutch driving

2шт.

Not serviced separately, Order package 75036C92.

1шт.

45

380245R2

PIN

PIN, hyd clutch spring guide

9шт.

46

380246R1

SPRING

SPRING, hyd clutch small

9шт.

47

380247R1

SPRING

SPRING, hyd clutch large

9шт.

48

PLATE, hyd clutch backing

1шт.

Not serviced separately, Order package 1252884C91.

1шт.

49

382347R2

LOCK WASHER

WASHER, hyd clutch backing plate lock

3шт.

50

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

BEARING, clutch shaft rear needle

2шт.

51

380078R91

NEEDLE BEARING

BEARING, drive gear front needle

1шт.

52

380253R1

CAGE

CAGE, drive gear bearing

1шт.

53

528670R1

GEAR WHEEL

GEAR, constant mesh drive, 26T

1шт.

54

381330R1

RING

RING, drive gear external snap

1шт.

55

ST3025

BALL BEARING,75mm ID x 130mm OD x 22mm W

BEARING, drive gear

1шт.

56

382349R1

SHAFT

SHAFT, constant mesh gear quill

1шт.

57

392683R1

RING

RING, drive gear internal snap

1шт.

58

71147C2

SPACER

SPACER, TA driver gear

1шт.

79020C93

GASKET KIT

PACKAGE, torque amplifier seal, Consists of

1шт.

.

INSTRUCTIONS (NSS)

1шт.

535208R92

SEAL,30.23mm ID x 44.6mm OD x 7.92mm Thk

SEAL

1шт.

535209R92

SEAL,49.02mm ID x 66.72mm OD x 7.92mm Thk

SEAL

1шт.

22414R1

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

O-RING

1шт.

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O-RING

6шт.

224903C1

GASKET

GASKET

1шт.

380067R4

GASKET

GASKET

1шт.

384078R1

GASKET

GASKET

1шт.

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

O-RING

1шт.

380112R1

GASKET

GASKET

1шт.

380081R1

PLATE

PLATE

2шт.

382335R3

GASKET

GASKET

2шт.

382336R4

GASKET

GASKET

2шт.

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

O-RING

4шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

O-RING

4шт.

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

O-RING

2шт.

354057R2

VALVE

VALVE

1шт.

382334R1

SPRING

SPRING

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-RING, 6-1, 90 Duro, .468" ID x .078" Thk

2шт.

380091R2

THRUST WASHER,59.51mm ID x 82.55mm OD x 1.52mm Thk

WASHER

1шт.

362796R1

O-RING,0.924" ID x 0.103" Width

O-RING

1шт.

380315R1

GASKET

GASKET

1шт.

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

O-RING

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O-RING

1шт.

75036C92

KIT

PACKAGE, TA clutch and plate overhaul, Consists of

1шт.

380234R1

RING

RING

3шт.

22414R1

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

O-RING

1шт.

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

O-RING

1шт.

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O-RING

6шт.

380238R4

BAFFLE

BAFFLE

1шт.

382339R1

LOCK WASHER

WASHER

1шт.

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING

6шт.

381086R1

RING

RING

1шт.

380244R1

SEALING RING

RING

1шт.

380243R1

RING

RING

1шт.

.

PLATE (NSS)

3шт.

382347R2

LOCK WASHER

WASHER

3шт.

.

PLATE (NSS)

2шт.

382340R2

GASKET

GASKET

1шт.

.

PLATE (NSS)

1шт.

.

PLATE (NSS)

1шт.

.

PLATE (NSS)

1шт.

.

PLATE (NSS)

1шт.

.

PLATE (NSS)

2шт.

19841R1

DOWEL,1/4" x 1/2"

PIN

6шт.

1277209C91

PUMP

PACKAGE, TA assy service, or

1шт.

1252884C91

SERVICE KIT

PACKAGE, TA assy service, renewed, Consists of

1шт.

.

INSTRUCTIONS (NSS)

1шт.

.

SHAFT (NSS)

1шт.

138666

SCREW,Hdls Hex Skt, 5/16" - 18 x 5/16"

SCREW, or

3шт.

222459

SCREW

SCREW

3шт.

380234R1

RING

RING

3шт.

.

CARRIER ASSY, renewed (NSS)

1шт.

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

O-RING

1шт.

382337R1

SPRING

SPRING

2шт.

380238R4

BAFFLE

BAFFLE

1шт.

.

GEAR ASSY (NSS)

1шт.

ST3025

BALL BEARING,75mm ID x 130mm OD x 22mm W

BEARING

1шт.

.

CLUTCH (NSS)

1шт.

382665R1

RING

RING

1шт.

381086R1

RING

RING

1шт.

.

CARRIER ASSY (NSS)

1шт.

17006R1

BALL

BALL

1шт.

380240R1

THRUST WASHER

WASHER

2шт.

336000R1

SNAP RING,#175, 1.640", Ext

RING

2шт.

.

CARRIER (NSS)

1шт.

181335

BOLT,Hex, 5/16" - 24 x 11/16", Gr 5

BOLT, Hex, 5/16"-24 x 11/16", G5, Full Thd

3шт.

382339R1

LOCK WASHER

WASHER

3шт.

382340R2

GASKET

GASKET

1шт.

382341R1

PISTON

PISTON

6шт.

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING

6шт.

.

PLATE (NSS)

1шт.

.

PLATE (NSS)

2шт.

.

PLATE (NSS)

1шт.

.

PLATE (NSS)

1шт.

19841R1

DOWEL,1/4" x 1/2"

PIN

6шт.

382666R1

VALVE SPRING

SPRING

6шт.

382346R1

RING, SNAP

RING SNAP RING

1шт.

380242R1

PISTON

PISTON

1шт.

380243R1

RING

RING

1шт.

380244R1

SEALING RING

RING

1шт.

380245R2

PIN

PIN

9шт.

380246R1

SPRING

SPRING

9шт.

380247R1

SPRING

SPRING

9шт.

.

PLATE (NSS)

1шт.

.

PLATE (NSS)

3шт.

.

PLATE (NSS)

2шт.

.

PLATE (NSS)

1шт.

382347R2

LOCK WASHER

WASHER

3шт.

860300R1

BOLT,Hex, 7/16" - 20 x 2 3/4", Gr 8

BOLT

3шт.

.

CLAMP (NSS)

1шт.
