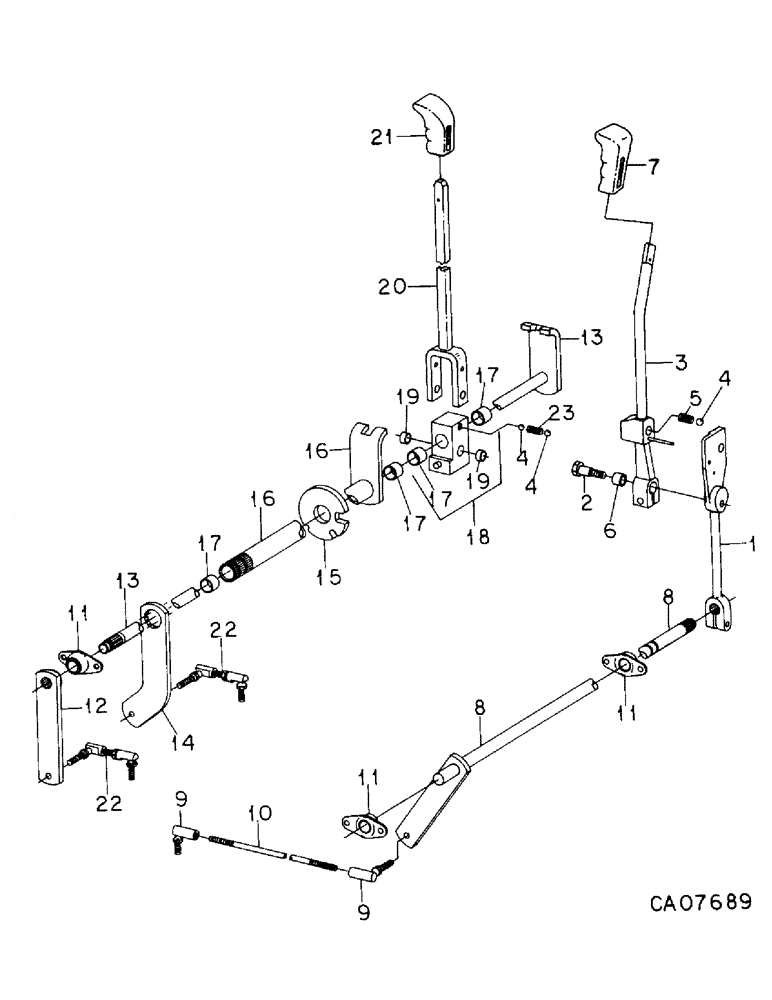

Запчасти Case IH 3688 (07-14) - DRIVE TRAIN, TRANSMISSION CONTROL, EXTERNAL (04) - Drive Train

1

1251580C3

HANDLE

lower speed

1шт.

2

1251579C1

STEP BOLT,Hex, M12 x 1.75 x 61mm, Cl 8.8

BOLT, shoulder speed shift

1шт.

933966R1

LOCK WASHER,M12

WASHER, 12 mm lock

1шт.

30274R1

JAM NUT,M12, Cl 10

M12 class 10

1шт.

931312R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

3

1251581C93

HANDLE

ASSY, speed shift upper

1шт.

30224R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

M10 x 30 phc p/t class 10.9

1шт.

30818R1

LOCK PIN,M4 x 50, Slotted

PIN, 4 x 50 mm pln slt-spr

1шт.

4

30453R1

BALL

no. 10 grade 28 metal

3шт.

5

454098R1

SPRING

detent ball

1шт.

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

M12 x 25 class 8.8

1шт.

6

1251578C1

BUSHING

speed handle pivot

1шт.

7

1259590C2

KNOB

speed trans shift

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

8

130698C3

SHAFT

ASSY, trans shift, pivot

1шт.

23090R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

2шт.

9

158397H1

BALL JOINT

JOINT, 3/8 C-Z type A ball

2шт.

118625

NUT

3/8-NF phc jam type 5

2шт.

144419H

LOCK NUT,3/8"-24, GB

NUT, 3/8-NF cad p/t lock type 5

2шт.

10

104100C1

ROD

speed transmission

1шт.

11

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING ASSY, flange mtg

3шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

6шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

6шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

6шт.

12

1252709C1

ARM

ASSY, rev shift

1шт.

21018R1

WASHER

.781 x 1.500 x .027 pln (Or as required)

1шт.

16066R1

WASHER

.781 x 1.500 x .054 pln (Or as required)

1шт.

384098R1

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

13

1252711C3

SHAFT

ASSY, rev shift, plate

1шт.

14

1252865C1

SUPPORT

hi-lo pivot, lever

1шт.

454319R1

RING

1.041 ext ret

2шт.

15

1252714C2

SPACER

range spacer interlock, washer

1шт.

16

1252715C92

SHAFT

ASSY, hi-lo shift, plate

1шт.

17

363768R1

BUSHING

4шт.

18

1252718C91

HUB

ASSY, range shift

1шт.

19

1252720C1

BUSHING

2шт.

20

1252721C3

HANDLE

ASSY, range shift

1шт.

931722R1

BOLT, M14 x 75 pln class 8.8

1шт.

30928R1

NUT, M14 phc p/t lock class 10

1шт.

30453R1

BALL

no. 10 grade 28 metal

2шт.

21

1259589C3

KNOB

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

22

104110C1

BALL JOINT

JOINT, adjustable ball

2шт.

144419H

LOCK NUT,3/8"-24, GB

NUT, 3/8-NF cad p/t lock type 5

4шт.

23

1253130C1

SPRING

1шт.
