Запчасти Case IH 3688 (07-01) - DRIVE TRAIN, CLUTCH HOUSING AND TRANSMISSION BRAKE HOUSING (04) - Drive Train

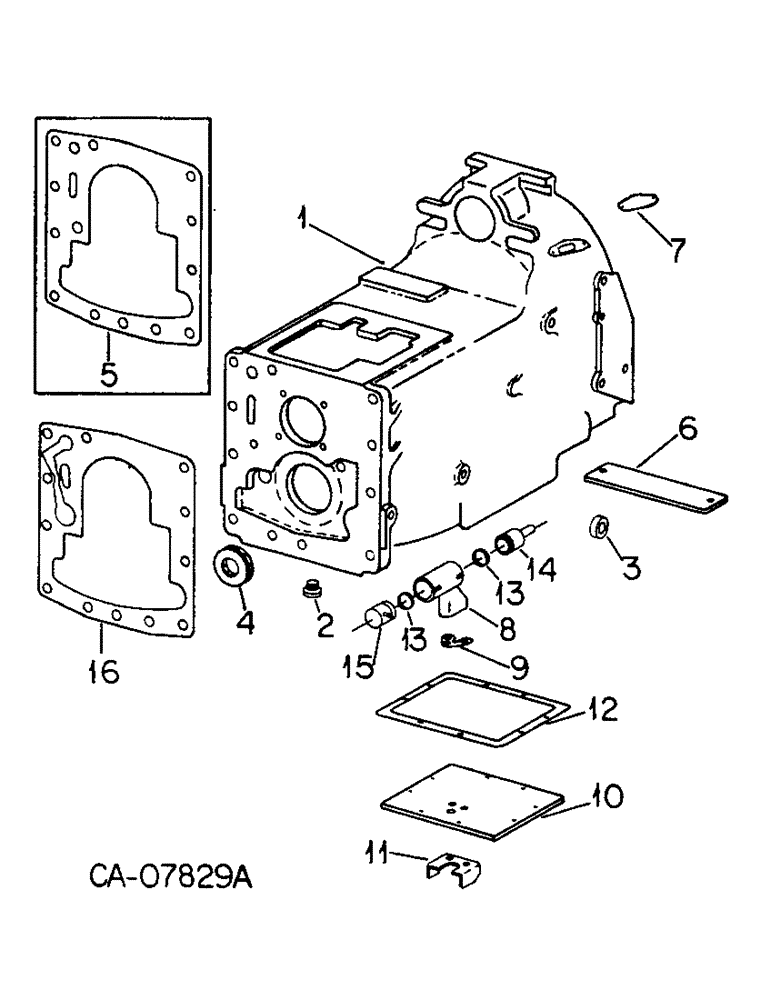

Схема запчастей Case IH 3688 - (07-01) - DRIVE TRAIN, CLUTCH HOUSING AND TRANSMISSION BRAKE HOUSING (04) - Drive Train
5
13
8
12
16
2
3
9
13
1
10
15
4
11
6
7
14

Артикул

Название

Примечание

Количество

1

139156C93

HOUSING

ASSY, clutch

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 3 pln type 5

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

24877R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

7шт.

26166R1

12 PT SCREW,Flg, 5/8" - 11 x 2 1/4"

SCREW, 5/8 x 2.250 phc ast 12pt flg

1шт.

28592R1

HEX SOC SCREW,5/8" - 11 x 2"

SCREW, 5/8 x 2 phc h/shd cap

2шт.

25711R1

WASHER

.656 x 1.312 x .150 hdn

10шт.

2

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 pln sq/skt auto drain

1шт.

3

381611R1

SEAT

valve

1шт.

4

384114R91

NEEDLE BEARING

countershaft frt needle

1шт.

5

380067R4

GASKET

clutch housing, For use w/clutch housing, 139156C91

1шт.

6

380068R1

BAR

COVER, clutch compartment

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

104402C1

COVER

engine timing opening

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

130589C1

HOUSING

ASSY, speed trans brake

1шт.

9

130578C1

GASKET

speed trans brake hsg

1шт.

10

130588C1

COVER

clutch housing bottom

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

11

130334C1

PROTECTOR

SUPPORT, hyd fitting, protector

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1/2 x 1-3/4 pln type 5

2шт.

12

384078R1

GASKET

clutch housing cover

1шт.

13

116797C2

RING

SEAL, teflon, or

2шт.

13

148944C2

RING

SEAL, teflon

2шт.

14

130557C3

PISTON

ASSY, trans brake front, without torque amplifier

1шт.

14

130550C3

PISTON

ASSY, trans brake front, with torque amplifier

1шт.

15

130550C3

PISTON

ASSY, trans brake rear

1шт.

16

224903C1

GASKET

clutch housing, For use w/clutch housing, 139156C92 and 139156C93

1шт.

Выбрано товаров: 30
