(06-02) - COOLING, OIL COOLER, 3688 TRACTOR

Запчасти Case IH 3688 (06-02) - COOLING, OIL COOLER, 3688 TRACTOR Cooling

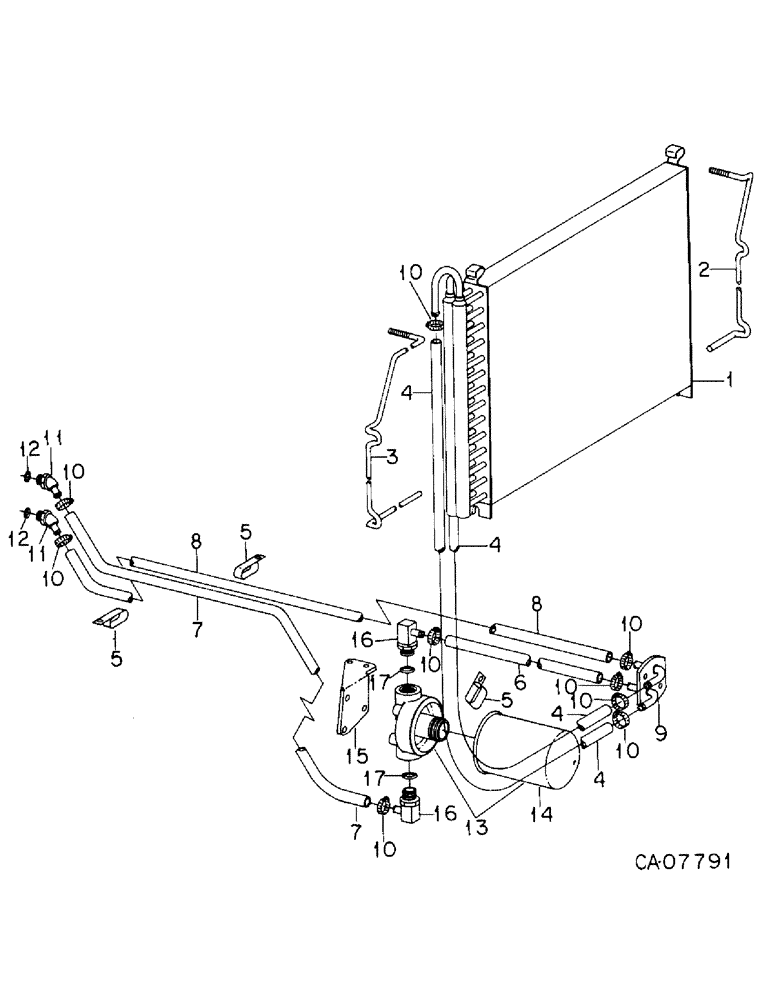

Схема запчастей Case IH 3688 - (06-02) - COOLING, OIL COOLER, 3688 TRACTOR Cooling
4
11
15
8
4
5
7
7
17
16
10
10
2
16
10
14
9
1
13
6
10
8
17
4
5
10
11
5
10
4
3
10
10
12
10
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

146416C1

COOLER

COOLER ASSY, oil

1шт.

2

148995C1

BRACKET

SPARE PART BRACKET, oil cooler mtg, LH

1шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

WASHER, 8.8 x 21 x 2.5 mm phc

2шт.

30002R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

BOLT, M8 x 20 phc class 10.9

2шт.

3

148994C1

BRACKET

BRACKET, oil cooler ntg, RH

1шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

WASHER, 8.8 x 21 x 2.5 mm phc

6шт.

30002R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

BOLT, M8 x 20 phc class 10.9

2шт.

934309R1

LOCK WASHER,M8

LOCK WASHER, M8

2шт.

30167R1

NUT,M8, Cl 10

NUT, M8 phc class 10

2шт.

934900R1

WING NUT

NUT, M8 znp wing

2шт.

4

HOSE, oil cooler outlet and inlet oil cooler to elbow, Furnish 1055 mm from bulk roll marked 73199C1

2шт.

5

104773C3

CLAMP

CLIP, oil cooler hose

3шт.

615031R1

WASHER

WASHER, .375 x .875 x .064 pln

1шт.

930244R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT, M8 x 25 pln class 8.8

1шт.

934309R1

LOCK WASHER,M8

LOCK WASHER, M8

1шт.

30167R1

NUT,M8, Cl 10

NUT, M8 phc class 10

1шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

BOLT, 5/8 x 1 pln type 5

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

WASHER, .656 x 1.312 x .074 pln

1шт.

6

HOSE, oil cooler elbow to filter, Furnish 710 mm from bulk roll marked 73199C1

1шт.

7

HOSE, filter to MCV, Furnish 940 mm from bulk roll, marked 73199C1

1шт.

8

HOSE, elbow to MCV, Furnish 1570 mm from bulk roll marked 73199C1

1шт.

9

130298C1

ELBOW

SPARE PART ELBOW ASSY, oil cooler

1шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 16, 8.8

2шт.

10

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, no. 10 type F hose

10шт.

11

104776C3

ELBOW

ELBOW

2шт.

12

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O-RING, 1/2 OD tube class 6

2шт.

13

137938C91

HYDRAULIC OIL FILTER

FILTER, OIL FILTER AND BASE ASSY

1шт.

14

1282428C1

FILTER, ELEMENT

ELEMENT, FILTER FILTER, Replaces 137939C1

1шт.

15

138047C1

SUPPORT

BRACKET, filter

1шт.

930244R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT, M8 x 25 pln class 8.8

2шт.

30167R1

NUT,M8, Cl 10

NUT, M8 phc class 10

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

16

133824C1

ELBOW

ELBOW, 90 deg special

2шт.

17

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING, 3/4 OD tube class 6

2шт.
