Запчасти Case IH 3688 (10-54) - HYDRAULICS, HYDRAULIC DRAFT CONTROL LINKAGE, CAT. II, 3688 TRACTORS (07) - HYDRAULICS

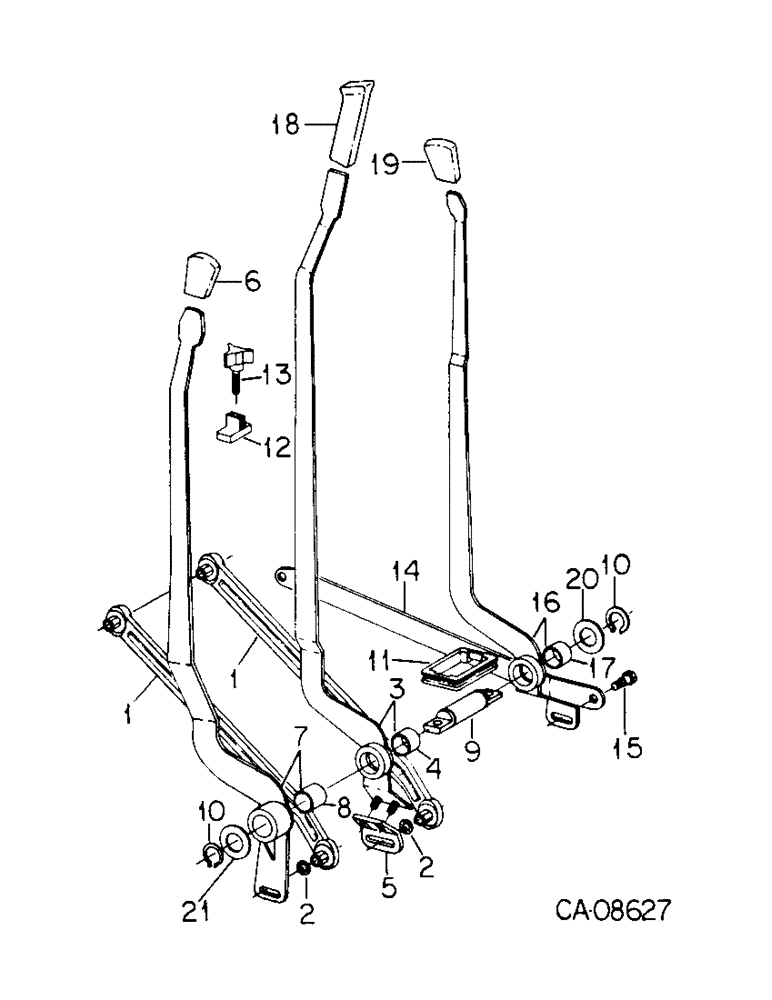

Схема запчастей Case IH 3688 - (10-54) - HYDRAULICS, HYDRAULIC DRAFT CONTROL LINKAGE, CAT. II, 3688 TRACTORS (07) - HYDRAULICS
14
1
12
13
20
2
16
18
1
2
5
10
21
4
11
17
15
19
7
10
3
9
6

Артикул

Название

Примечание

Количество

1

120314C2

ROD

ASSY, draft and position control

2шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

5/16 x 1-1/8 type 5

4шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16 phc p/t lock type 5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 serrated washer hd

2шт.

2

532409R1

SPRING WASHER

serrated spring steel

2шт.

3

1280102C91

HANDLE

ASSY, position control, Includes Ref. 4

1шт.

4

144003C1

BUSHING

valve operating lever

1шт.

5

1253150C1

SUPPORT

position handle extension

1шт.

30986R1

NUT,M8 x 1.25, Flg, Cl 8

M8 class 10 h/flg

2шт.

6

1259760C1

BALL KNOB

KNOB, draft control handle

1шт.

7

130696C91

HANDLE

ASSY, draft control, Includes Ref. 8

1шт.

8

383236R1

BUSHING,19.15mm ID x 20.65mm OD x 25.4mm L

draft control handle shaft

1шт.

9

104532C2

SHAFT

control pivot

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

2шт.

10

661652R1

SNAP RING,#75, Ext

2шт.

11

135877C1

SEAL

control

1шт.

12

1259806C1

BAR

ASSY, position control handle

1шт.

20600R1

WASHER

.281 x .750 x .105

1шт.

13

1259821C1

KNOB

fluted

1шт.

14

120498C2

LINK

raise rate connecting

1шт.

Q3817

WASHER

.344 x .656 x .021 pln

1шт.

103363

PIN, SPLIT (COTTER)

PIN, 1/16 x 1 pln cot

1шт.

21903R1

WASHER

.531 x .750 x .054

1шт.

15

400862R1

BOLT,Hex, 5/16" - 18 x 0.85"

5/16-18 shoulder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

16

130694C91

HANDLE

ASSY, raise rate control, Serial no. 1800 and below

1шт.

16

1267381C91

HANDLE

ASSY, raise rate control, Serial no. 1801 and above

1шт.

17

144003C1

BUSHING

rate control handle

1шт.

18

1259765C1

GRIP

position control handle, Use w/handle, 1280102C91

1шт.

18

1259760C1

BALL KNOB

KNOB, position control handle, Use w/handle, 1253118C93

1шт.

19

1259760C1

BALL KNOB

KNOB, raise rate control handle, Serial no. 1800 and below

1шт.

19

1267352C1

KNOB

raise rate control handle, Serial no. 1801 and above

1шт.

20

16066R1

WASHER

.781 x 1.500 x .054 pln, 1 required for inner position

1шт.

21

16066R1

WASHER

.781 x 1.500 x .054 pln, As required for outer position

1шт.

Выбрано товаров: 34
