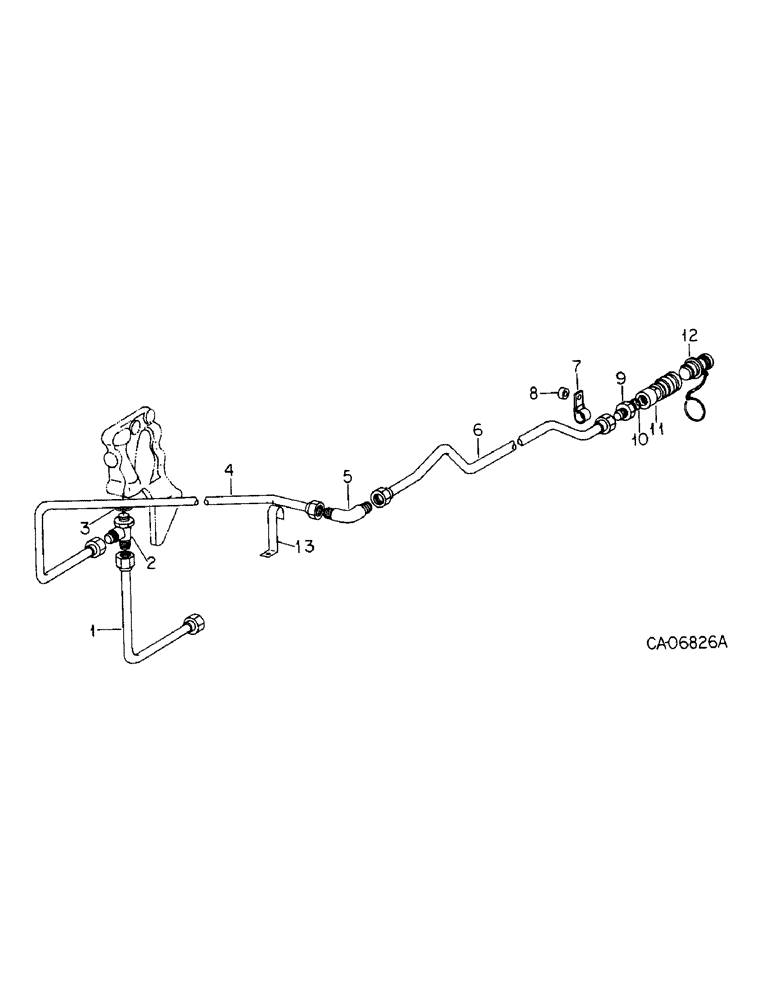

Запчасти Case IH 3688 (10-44) - HYDRAULICS, HYDRAULIC MOTOR RETURN, 3688 TRACTORS (07) - HYDRAULICS

77878C91

KIT

PARTS ACCESSORY, hyd motor return

1шт.

1

139253C1

HYD TUBE

TUBE ASSY, aux valve return

1шт.

2

9411133

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring run

3/4 C-Z hyd fld tube adj

1шт.

3

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

4

139225C1

HYD TUBE

TUBE ASSY, motor return front

1шт.

5

9402945

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

UNION, 3/4 C-Z hyd fld tube 90 deg. elbow

1шт.

6

139224C1

HYD TUBE

TUBE ASSY, motor return rear

1шт.

7

1259662C1

CLAMP

motor return

1шт.

8

139254C1

SPACER

clamp

1шт.

271722

TIP,Hex, 5/8" - 11 x 1 7/8", Gr 5

BOLT, 5/8 x 1-7/8 type 5

1шт.

9

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, C-Z hyd fld 3/4 to 5/8 sht

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

11

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, hyd self sealing str thd, IH coupler

1шт.

11

1272400C91

COUPLING

ASSY, hyd self sealing str thd, ISO coupler, Only serviceable part is

1шт.

1282217C1

SEALING RING

RING, sealing

1шт.

12

401757R1

PLUG ASSY, coupling dust

1шт.

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

1шт.

13

1259661C1

CLAMP

CLIP, motor return

1шт.
