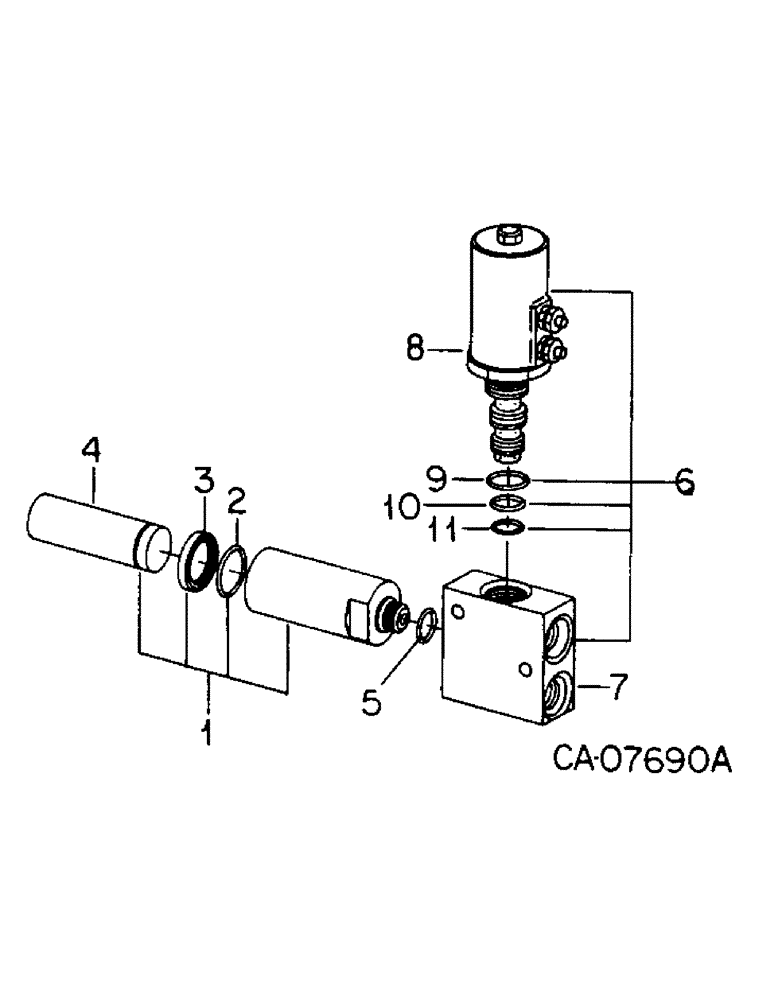

Запчасти Case IH 3688 (10-22) - HYDRAULICS, TORQUE AMPLIFIER CYLINDER AND VALVE ASSEMBLY (07) - HYDRAULICS

VALVE AND CYLINDER ASSY, torque amplifier

1шт.

1

1252071C92

CYLINDER

ASSY, torque amplifier, Includes Ref. 2, 3 and 4

1шт.

2

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

7/8 x 1 class 5

1шт.

3

127145R91

OIL SEAL

cylinder rop lip

1шт.

4

ROD, TA cylinder, Not serviced separately, Order cylinder assy, 1252071C92

1шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

6

137767C94

VALVE

ASSY, block and solenoid, or

1шт.

6

1272538C91

VALVE

ASSY, block and solenoid

1шт.

7

BLOCK, valve

1шт.

Not serviced separately, Order valve assy, 137767C94 or valve assy, 1272538C91.

1шт.

8

SOLENOID

1шт.

Not serviced separately, Order valve assy, 137767C94 or valve assy, 1272538C91.

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

Use w/valve assy, 137767C94.

1шт.

10

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 x 9/16 class 6

1шт.

Use w/valve assy, 137767C94.

1шт.

11

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 class 6

1шт.

Use w/valve assy, 137767C94.

1шт.

1272698C1

PACKAGE

KIT, seal, Consists of

1шт.

Use w/valve assy, -1272538C91.

1шт.

GASKET (NSS)

1шт.

O-RING (NSS)

1шт.

O-RING (NSS)

1шт.

RING, back-up (NSS)

2шт.

RING, back-up (NSS)

2шт.
