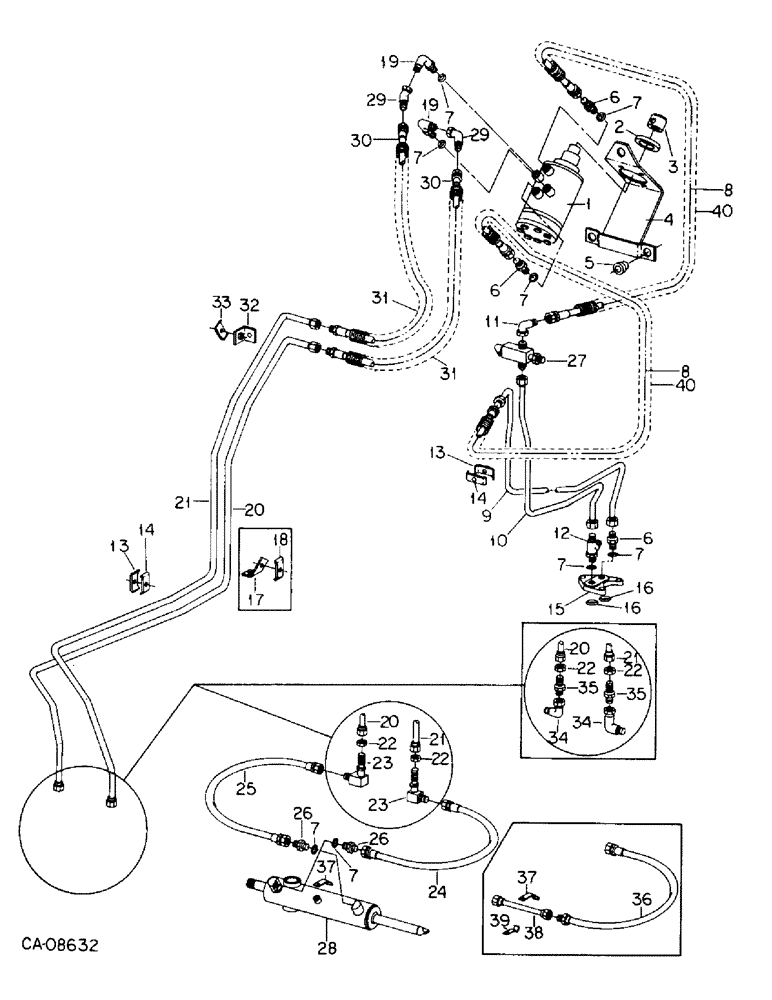

Запчасти Case IH 3688 (10-16) - HYDRAULICS, HYDRAULIC POWER STEERING CONNECTIONS, 3688 AND 3688HC TRACTORS (07) - HYDRAULICS

1

1263446C91

PUMP

ASSY, power steering hand, Replaces 224675C91, Refer to power steering hand pump this group for components

1шт.

1

1263446C91R

REMAN-STEERING VALVE

3688, 3688HC, Both INTERNATIONAL DIESEL TRACTOR, ASSY, power steering hand (1/81-12/86)

1шт.

1

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

*

617944R1

PIN,3/8" x 1 3/4", Coiled

1шт.

2

104007C1

SEAL

hand pump shaft dust, tractors w/o tilt steering

1шт.

2

148481C1

SEAL,40mm ID x 58mm OD x 8mm Thk

hand pump shaft dust, tractors w/tilt steering

1шт.

3

104008C1

RUBBER INSULATOR

INSULATOR, pump shaft vibration

1шт.

4

104853C1

BRACKET

ASSY, pump mtg

1шт.

*

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5, Pump mounting

4шт.

5

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

bracket

3шт.

*

536642R1

WASHER

3шт.

*

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

3шт.

6

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht

3шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

8шт.

8

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

ASSY, power steering pressure and return

2шт.

9

120052C3

HYD TUBE,0.5" OD, 389.64, 352.24 mm Length

TUBE ASSY, power steering pressure

1шт.

10

120051C1

HYD TUBE

TUBE ASSY, power steering return

1шт.

11

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1/2 C-Z hyd fld 90 deg. swivel

2шт.

12

673526R1

TEE

3/4-16 37 deg. hyd flared tube

1шт.

13

384855R1

CLAMP

ASSY, steering tubes

1шт.

14

384855R1

CLAMP

steering tubes

1шт.

*

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

1шт.

*

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

537840R1

BLOCK

power steering manifold

1шт.

*

NLS

NO LONGER SERVICED

3шт.

16

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 class 5

2шт.

17

537844R2

BRACKET

ASSY, power steering tube

1шт.

18

535307R1

CLAMP

tube

1шт.

*

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

*

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

*

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

*

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

19

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90 deg.

2шт.

20

1270508C2

HYD TUBE

TUBE ASSY, right turn steering, Replaces 120443C2

1шт.

21

1270507C2

HYD TUBE

TUBE ASSY, left turn steering, Replaces 120444C2

1шт.

22

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 3/8 C-Z bulkhead union lock

2шт.

23

1272240C1

ELBOW

3/8 C-Z hyd fld 90 deg. bulkhead, Serial no. 2493 and above

2шт.

24

148487C1

HOSE

ASSY, power steering LH, 736 mm (29.00 inc.) long

1шт.

25

74871C1

HOSE,9.53mm ID x 22.75mm L, SAE 100R7

ASSY, power steering RH

1шт.

26

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

2шт.

27

108863C91

VALVE

ASSY, brake check, Refer to check valve, this group, for list of components

1шт.

28

CYLINDER ASSY, power steering, Refer to power steering cylinder, this group for list of components

1шт.

29

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 45 deg. swivel

2шт.

30

1270510C1

HOSE,9.53mm ID x 515mm L, SAE 100R1

ASSY, steering

2шт.

31

TUBING, corrugated, Use 600 mm from bulk roll marked 1266755C1

2шт.

32

1270445C2

SUPPORT TUBE

SUPPORT ASSY, strg tubes

1шт.

33

535307R1

CLAMP

strg tubes

1шт.

*

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

34

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90 deg. swivel, Serial no. 2493 and below

2шт.

35

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 3/8 C-Z hyd fld tube bulkhead, Serial no. 2493 and below

2шт.

36

70312C1

HOSE,9.53mm ID x 577.85mm L, SAE 100R7

ASSY, power steering LH, 578 mm (22.75 in.) long

1шт.

37

533578R2

CLAMP

tube, For use w/hose assy, 70312C1

1шт.

38

533579R2

TUBE

ASSY, cyl to LH strg hose, For use w/hose assy, 70312C1

1шт.

39

533577R2

CLAMP

hose

1шт.

*

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

5/16-NF x 1/2 pln type 5

1шт.

40

CONDUIT, convoluted, Use 787 mm from bulk roll marked 1266755C1

2шт.

*

1270513C92

TUBE

PACKAGE, left and right steering lines, Consists of

1шт.

*

1270508C2

HYD TUBE

TUBE ASSY, right turn

1шт.

*

1270507C2

HYD TUBE

TUBE ASSY, left turn

1шт.

*

1270510C1

HOSE,9.53mm ID x 515mm L, SAE 100R1

ASSY, steering

2шт.

*

TUBING, corrugated, 600 mm

2шт.

*

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

45 deg.

2шт.

*

1270445C2

SUPPORT TUBE

SUPPORT ASSY, steering tubes

1шт.

*

535307R1

CLAMP

1шт.

*

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

*

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

1шт.

*

INSTRUCTIONS (NSS)

1шт.
