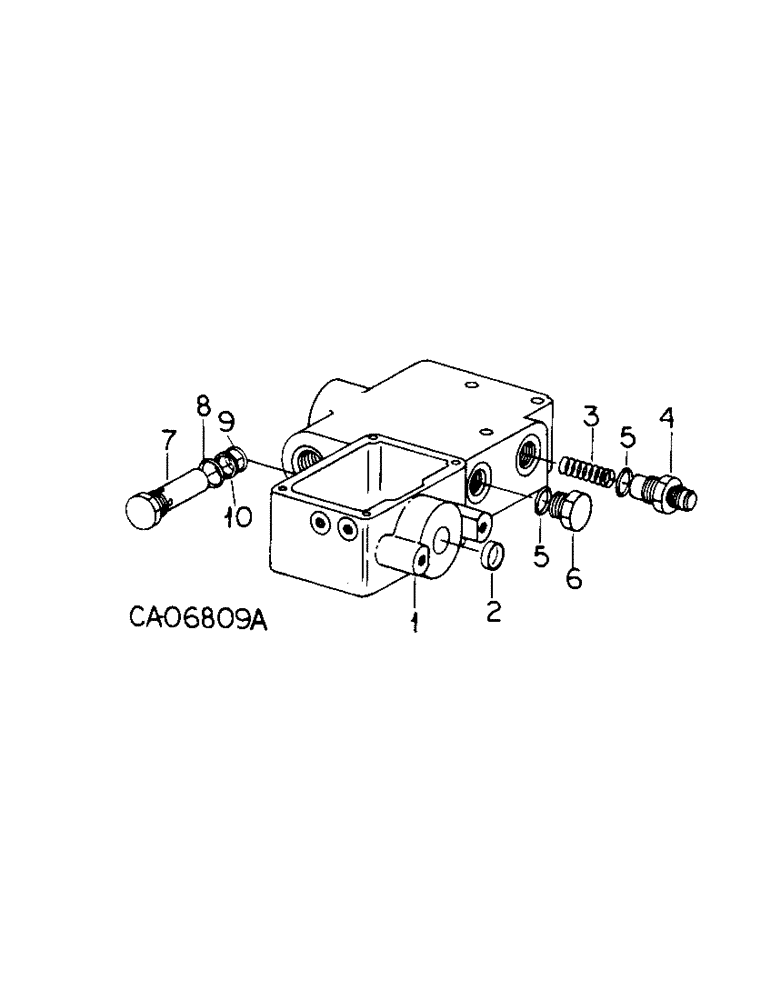

Запчасти Case IH 3688 (10-11) - HYDRAULICS, PRIORITY VALVE ASSY, 3688 TRACTORS WITHOUT DRAFT CONTROL (07) - HYDRAULICS

133799C91

VALVE

ASSY, priority

1шт.

1

BODY, priority valve, Not serviced separately, Order priority valve assy 133799C91

1шт.

2

327412R1

PLUG,Cup, 13/16"

13/16 cup

1шт.

3

127880C1

SPRING

motor priority valve

1шт.

4

127883C1

PLUG

motor priority valve

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube clas 6

2шт.

6

9410360

PLUG

5/8 C-Z str thd o-ring boss

1шт.

7

138046C91

VALVE

ASSY, cushion relief

1шт.

8

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 class 5

1шт.

9

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8

1шт.

10

378985R2

BACK-UP RING

relief valve o-ring back-up

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 type 1, For mounting priority valve body

2шт.

108516C92

VALVE

ASSY, unloading

1шт.
