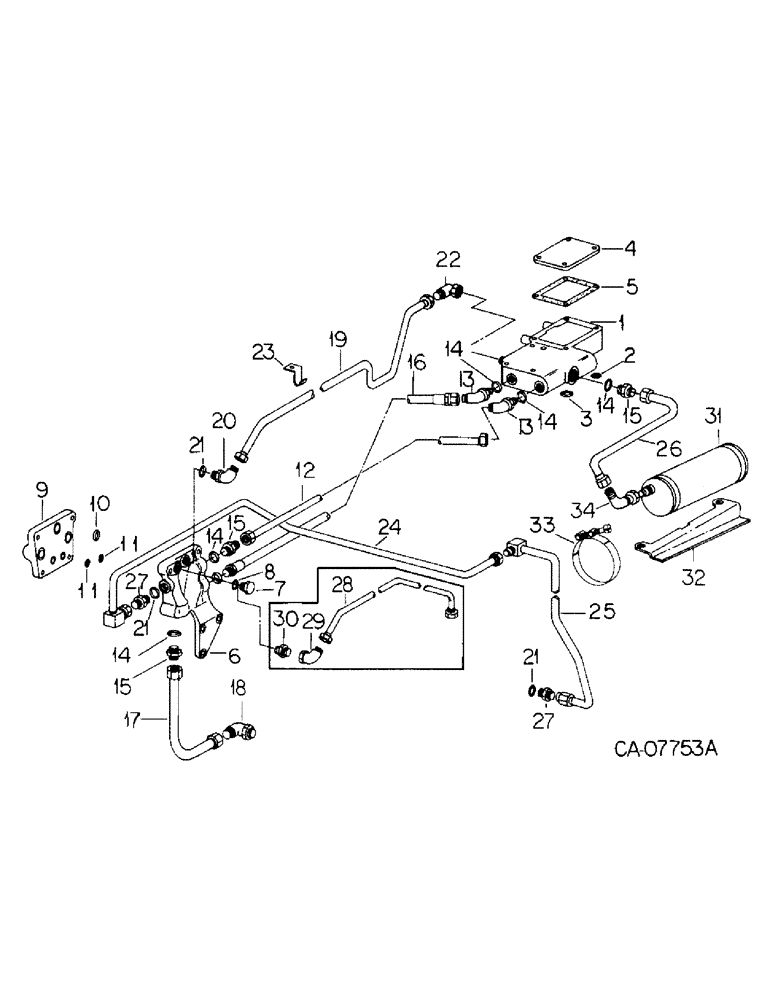

Запчасти Case IH 3688 (10-03) - HYDRAULICS, PRIORITY VALVE AND CONNECTIONS, 3688 TRACTORS (07) - HYDRAULICS

1

133799C91

VALVE

ASSY, priority, Refer to priority valve this group for list of components

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

186279

BOLT,Hex, 3/8" - 16 x 3 1/8", Gr 5

3/8 x 3-1/8 pln type 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

2

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 class 6

1шт.

3

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 class 6

1шт.

4

108514C1

COVER

linkage access

1шт.

5

108515C1

GASKET

cover

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

6

127841C1

BRACKET

aux valve mounting

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

7

9410357

PLUG

5/16 C-Z str thd o-ring boss, tractors w/o draft control

1шт.

9

127896C1

COVER

aux valve end

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

4шт.

10

391912R1

O-RING,0.737" ID x 0.103" Width

3/4 x 15/16 class 6

3шт.

11

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 class 6

2шт.

12

1253004C1

HYD TUBE

TUBE ASSY, motor supply

1шт.

13

9411107

ELBOW,45 Degree, 1 1/16"-12 x 1 1/16"-12, O-Ring

3/4 C-Z hyd fld adj 45 deg.

2шт.

14

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

5шт.

15

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 C-Z hyd fld short swivel

3шт.

16

142508C3

HOSE,15.88mm ID x 641.4mm L, SAE 100R2

auxiliary supply

1шт.

17

127939C1

HYD TUBE

TUBE ASSY, aux valve bracket return

1шт.

18

9402867

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, NPTF

3/4 C-Z hyd flared tube 90 deg.

1шт.

19

148895C1

HYD TUBE

TUBE ASSY, motor priority signal

1шт.

20

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90 deg.

1шт.

21

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

3шт.

22

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90 deg. swivel

1шт.

23

145330C1

CLAMP

CLIP, tube

1шт.

24

1253218C1

HYD TUBE

TUBE ASSY, pump signal upper

1шт.

25

1253219C1

HYD TUBE

TUBE ASSY, pump signal lower

1шт.

26

1252168C1

HYD TUBE

TUBE ASSY, attenuator

1шт.

27

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

2шт.

28

127936C2

HYD TUBE,0.312" OD, 257.05, 291.08 mm Length

TUBE ASSY, draft control signal, For tractors w/draft control only.

1шт.

29

9410279

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

5/16 C-Z hyd fld 90 deg. swivel, For tractors w/draft control only.

1шт.

30

127866C1

VALVE

ASSY, draft control signal check, For tractors w/draft control only.

1шт.

31

1252167C1

CYLINDER

TANK ASSY, hyd pressure, attenuator

1шт.

32

1252169C1

BRACKET

mounting

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

BOLT, 5/8 x 4-1/4 pln type 5

2шт.

390309C1

WASHER

.656 x 1.312 x .095 hdn

2шт.

33

336257R1

CLAMP

4.50 min hvy/duty t-bolt

1шт.

34

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3/4 C-Z hyd fld 90 deg. swivel

1шт.

8

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, class 6

1шт.
