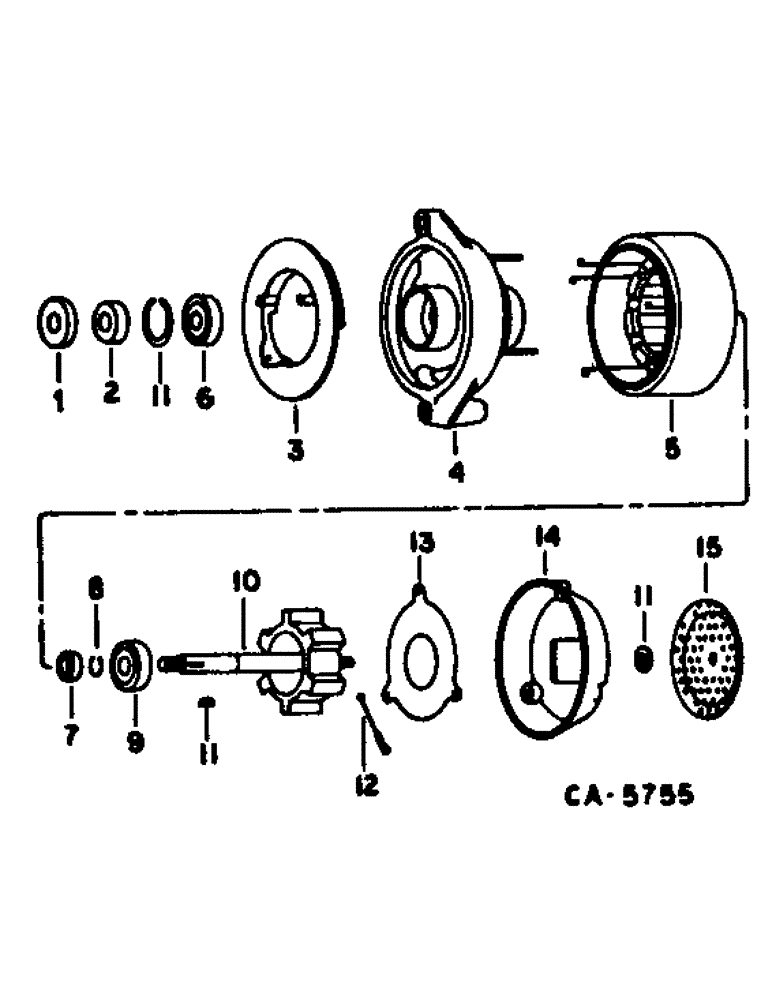

Запчасти Case IH 3688 (08-27) - ELECTRICAL, HEAVY DUTY ALTERNATOR, NIEHOFF (06) - ELECTRICAL

146472C91

GENERATOR

ALTERNATOR-GENERATOR ASSY, heavy duty 100 amp, Metric

1шт.

1

130991C1

CUP WASHER

front spring and bearing cover

1шт.

2

130992C1

SPACER

front

1шт.

3

77791C1

AMPLIFIER

ASSY, rectifier and heat sink

1шт.

4

77792C1

FRAME

ASSY, field winding and end

1шт.

5

77793C1

NO LONGER SERVICED

SHELL AND STATOR ASSY

1шт.

6

131097C91

BALL BEARING,0.6693" ID x 1.8504" OD x 0.5512"

front

1шт.

7

130998C1

CUP WASHER

retainer cup

1шт.

8

130993C1

RING

retainer

1шт.

9

131098C91

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

rear

1шт.

10

130999C1

ROTOR

ASSY

1шт.

11

77795C1

KIT

PACKAGE, miscellaneous hardware service

1шт.

12

131003C1

CABLE ASSY.

CABLE ASSY, ground

1шт.

13

77794C1

REGULATOR

ASSY, voltage

1шт.

14

131006C1

COVER

voltage regulator

1шт.

15

NOT USED THIS APPLICATION

1шт.

146553C1

CABLE ASSY.

CABLE ASSY, alternator

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, cable lock

4шт.
