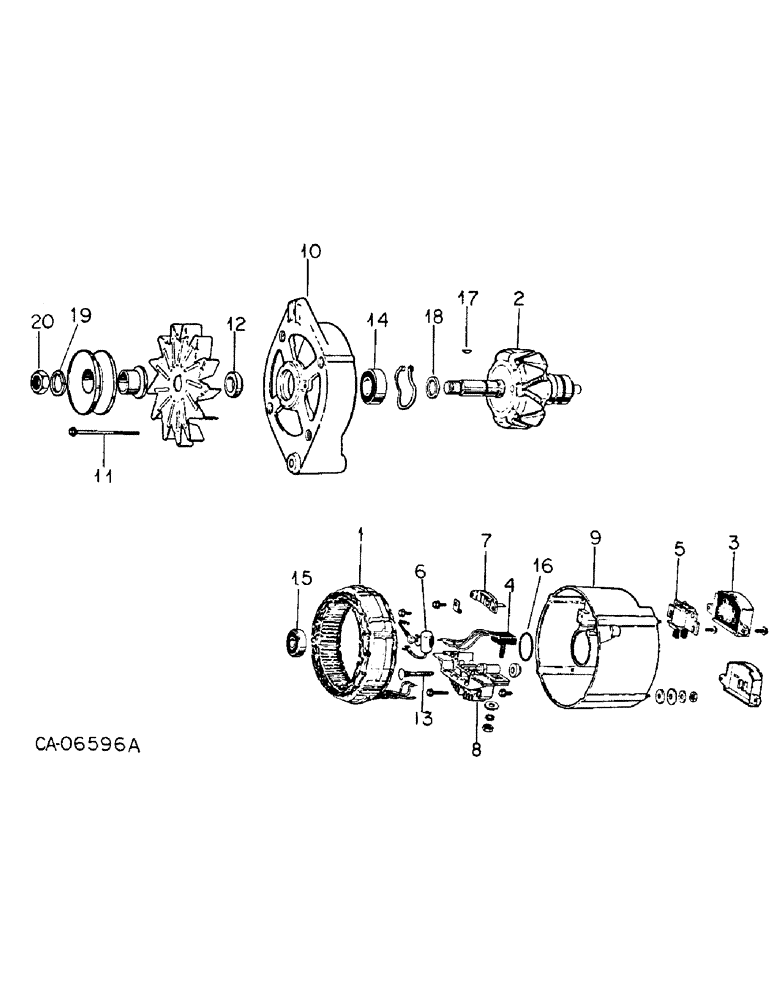

Запчасти Case IH 3688 (08-26) - ELECTRICAL, ALTERNATOR-GENERATOR, 62 AMPS MOTOROLA (06) - ELECTRICAL

107560C91

ALTERNATOR

ALTERNATOR-GENERATOR, 62 amps Motorola

1шт.

87297244

REMAN-ALTERNATOR

Reman For New PN 107560C91

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number 12 Volt, 61 Amp Alternator

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 Amp Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New PN 107560C91

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 100 Amp Alternator

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12A, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman For New PN A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

103807A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 105 Ampere

1шт.

103807A1C

CORE-ALTERNATOR

Return Number

1шт.

103808A1GV

ALTERNATOR

Value, 12V, 105A

1шт.

103808A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 105 Ampere

1шт.

103808A1C

CORE-ALTERNATOR

Return Number

1шт.

1

497688C1

STATOR

STATOR ASSY

1шт.

2

497686C1

ROTOR

ROTOR ASSY

1шт.

3

496686C1

REGULATOR

REGULATOR, voltage

1шт.

4

497689C1

RECTIFIER

DIODE, trio

1шт.

5

497691C1

BRUSH, COMMUTATOR

BRUSH BRUSH AND HOLDER ASSY

1шт.

6

497692C1

CAPACITOR

CAPACITOR ASSY

1шт.

7

497693C1

TERMINAL CONNECTOR

TERMINAL ASSY

1шт.

8

497690C1

RECTIFIER

RECTIFIER ASSY, bridge

1шт.

9

76670C1

HOUSING

HOUSING, rear

1шт.

10

76671C1

HOUSING

HOUSING, front

1шт.

11

76672C1

BOLT

BOLT, thru forn tand rear

4шт.

12

76673C1

SPACER

SPACER, outer, alternator fan

1шт.

13

STUD, battery outlet, Not serviced separately, Order battery output stud package 77696C1

1шт.

14

76675C91

BALL BEARING,0.6693" ID x 1.5748" OD x 1.724"

BEARING, front

1шт.

15

76696C91

SPARE PART BEARING, rear

1шт.

16

77797C1

RETAINER

RETAINER, bearing, rear

1шт.

17

77863C1

SPACER

SPACER, rotor assy

1шт.

18

382550C1

RETAINER

RETAINER, bearing, front

1шт.

19

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

25148R1

NUT

NUT, 5/8-NF cad type 5

1шт.

77796C1

PACKAGE

PACKAGE, battery output stud, Consists of

1шт.

.

STUD, battery outlet (NSS)

1шт.

.

INSULATOR WASHER (NSS)

2шт.

.

WASHER (NSS)

1шт.

.

NUT (NSS)

1шт.
