Запчасти Case IH 3688 (08-23) - ELECTRICAL, ALTERNATOR-GENERATOR MOUNTING (06) - ELECTRICAL

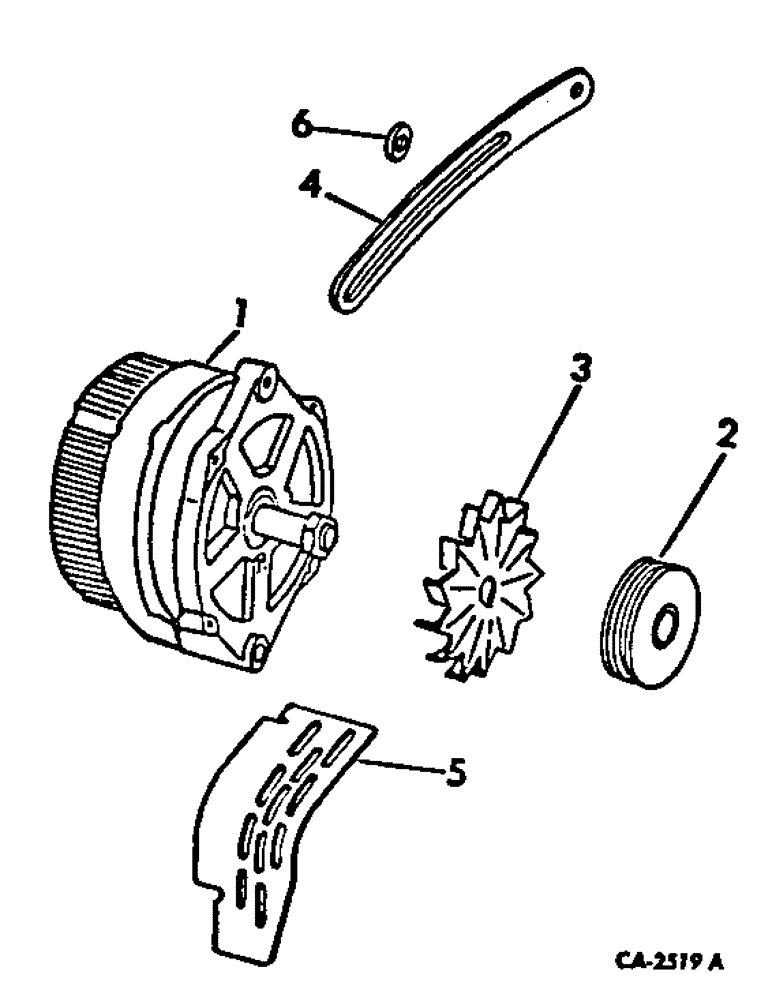

Схема запчастей Case IH 3688 - (08-23) - ELECTRICAL, ALTERNATOR-GENERATOR MOUNTING (06) - ELECTRICAL
6
1
5
3
2
4

Артикул

Название

Примечание

Количество

1

1105164

ALTERNATOR

ALTERNATOR-GENERATOR, 61 amp, Delco, Replaces 1103183, tractors w/rops or non-rops, or

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt, 61 Ampere

1шт.

1

87297245

CORE-ALTERNATOR

Return Part Number

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 Amp Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 63 Amp Alternator

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Part Number 12 Volt, 61 Amp Alternator

1шт.

1

107560C91

ALTERNATOR

ALTERNATOR-GENERATOR, 62 amp, Motorola, tractors w/rops or non-rops

1шт.

1

ALTERNATOR-GENERATOR, 72 amp, Delco, tractors w/black trim cab, For service replacement, Order 1105538

1шт.

1

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 72 Ampere

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

1105538

GENERATOR

ALTERNATOR-GENERATOR, 105 amp, Delco, Replaces 1101440, tractors w/burgundy or western cab, Service replacement for 1105178 or 1103184 on tractors w/black trim cab

1шт.

1

87297246

REMAN-ALTERNATOR

Reman For New PN 1105538

1шт.

1

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New PN 1105538

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

1

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

1

104024A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 100 Amp Alternator

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Reman For New PN 146472C91

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

1

103807A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 105 Ampere

1шт.

1

103807A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103808A1GV

ALTERNATOR

Value, 12V, 105A

1шт.

1

103808A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 105 Ampere

1шт.

1

103808A1C

CORE-ALTERNATOR

Return Part Number

1шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

BOLT, M10 x 90 pln class 8.8

1шт.

25709R1

WASHER

WASHER, .406 x .812 x .089 hdn

2шт.

30327R1

WASHER,M10 x 21.5 x 2.5, HT

WASHER, 10 mm type B hdn

2шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, M10 phc p/t class 10

1шт.

30281R1

NUT,M6, Cl 10

NUT, M6 class 10, attaching cable to alt. "Bat." ter

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

1шт.

30476R1

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT, M10 x 100 pln class 8.8

1шт.

2

131042C1

PULLEY

PULLEY, alternator-generator, 3688 and 3688HC tractors equipped w/cab

1шт.

2

528173R2

PULLEY

PULLEY, alternator-generator, 3088 and 3288 tractors

1шт.

2

384645R1

PULLEY

PULLEY, alternator-generator, 3688 and 3688HC tractors equipped w/rops

1шт.

3

1970765

FAN

FAN, alternator-generator, 3088 tractors and 3288 tractor equipped w/black cab or rops

1шт.

3

1984165

FAN

FAN, alternator-generator, 3288 tractors equipped w/western or burgundy cab

1шт.

3

221425R1

FAN

FAN, alternator-generator, 3688 and 3688HC tractors equipped w/black cab or rops

1шт.

3

1978-026

FAN, alternator-generator, 3688 and 3688HC tractors equipped w/western or burgundy cab

1шт.

4

146489C1

BRACE

BRACE, alternator-generator, Replaces 532418R1, 3688 and 3688HC tractors

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, M8 x 30 pln class 8.8

1шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

WASHER, 8.8 x 21 x 2.5 mm phc

1шт.

5

NOT USED THIS APPLICATION

1шт.

6

SEE HARDWARE LISTED UNDER ALTERNATOR-GENERATOR BRACE

1шт.

Выбрано товаров: 51
