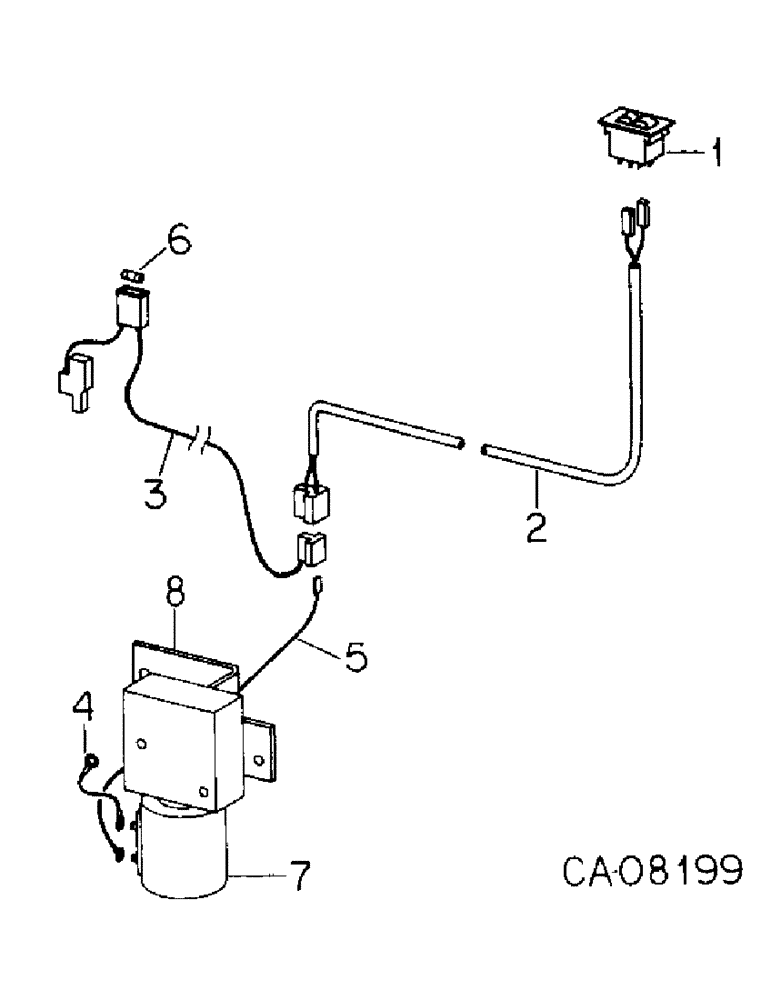

Запчасти Case IH 3688 (08-18) - ELECTRICAL, ALL WHEEL DRIVE CONTROLS, ELECTRICAL, TRACTORS W/ALL WHEEL DRIVE W/TWO-PIECE DRIVE SHAFT (06) - ELECTRICAL

1

1264637C1

SWITCH

ASSY, AWD actuating

1шт.

2

1264633C1

CABLE

ASSY, AWD, Serial Range: junction-switch

1шт.

3

1265634C1

ARM

CABLE ASSY, fuse block to AWD switch junction

1шт.

4

139138C1

CABLE

ASSY, solenoid, Serial Range: valve-ground

1шт.

5

139153C1

CABLE

ASSY, actuating, Serial Range: switch-solenoid

1шт.

6

131222C1

FUSE

10 amp, red

1шт.

7

VALVE ASSY, block and solenoid, For details see block and solenoid valve listing, group 10

1шт.

8

139005C2

BRACKET

ASSY, solenoid valve

1шт.

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 phc p/t type 8

2шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

2шт.
