Запчасти Case IH 3688 (08-16) - ELECTRICAL, TORQUE AMPLIFIER AND TRANSMISSION BRAKE WIRING (06) - ELECTRICAL

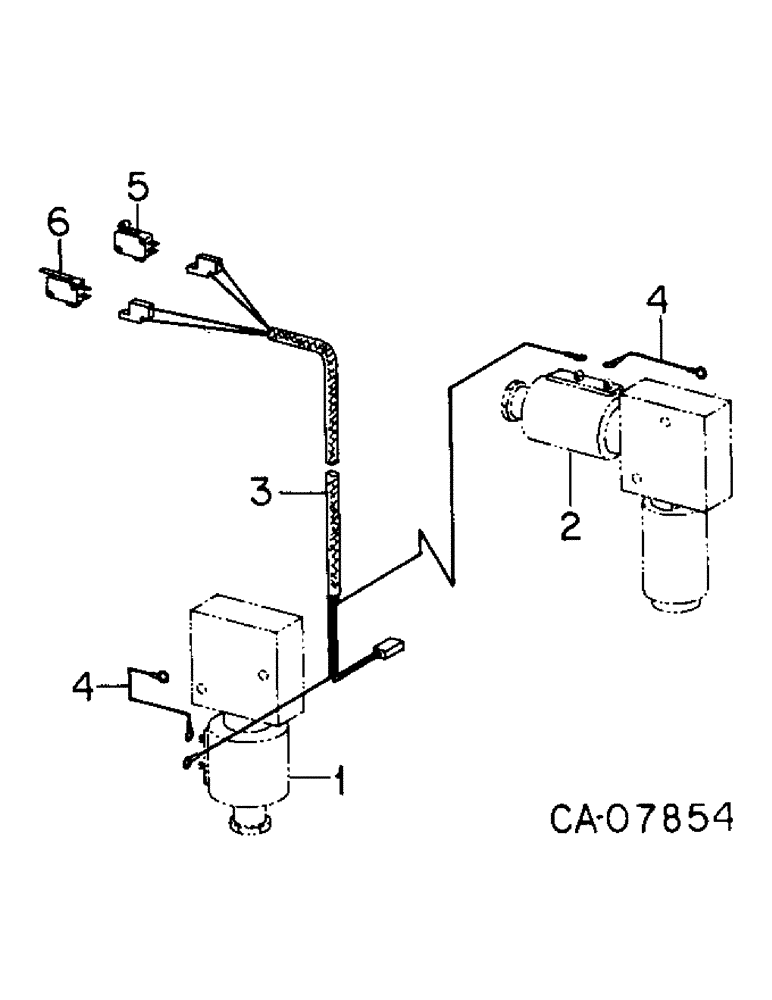

Схема запчастей Case IH 3688 - (08-16) - ELECTRICAL, TORQUE AMPLIFIER AND TRANSMISSION BRAKE WIRING (06) - ELECTRICAL
6
4
1
2
5
3
4

Артикул

Название

Примечание

Количество

1

VALVE ASSY, block and solenoid, trans brake, For components see block and solenoid valve listing, group 10, See group 10 for components

1шт.

2

VALVE & CYLINDER ASSY, torque amplifier, For components see torque amplifier valve and cylinder listing, group 10

1шт.

3

1252453C6

HARNESS

ASSY, TA and trans brake

1шт.

CONDUIT, convoluted, Use 8.0 in. from bulk roll marked 2643048R1

1шт.

117966

GROMMET,5/8" ID x 1 11/64" x .188"

5/8 x 1-11/64 x 7/16 d/c rub

1шт.

4

138842C1

CABLE

ASSY, TA and trans brake solenoid ground

2шт.

5

134437C1

SWITCH

ASSY, trans brake, on range lever

1шт.

6

1253023C1

SWITCH

ASSY, torque amplifier, on speed shift lever

1шт.

1252834C1

BLOCK

BRACKET, switch

1шт.

9416674

SCREW, no. 4 x 1 znp h/hds mach

2шт.

Procure locally 4-40 x 1" Hex head machine screw cam

1шт.

1967604C1

OIL SEAL

.156 x .375 x .036 phc

1шт.

134524

SHAFT

no. 4 mach screw type 1

2шт.

118674

WASHER

.156 x .375 x .036 phc

1шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

370383R1

CLIP

solenoid switch cables

2шт.

148855C2

CLAMP

CLIP, solenoid switch cables, Replaces 362666R1

1шт.

1251744C2

CLAMP

CLIP, TA and trans brake harness assy

1шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

934309R1

LOCK WASHER,M8

1шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

1шт.

Выбрано товаров: 21
