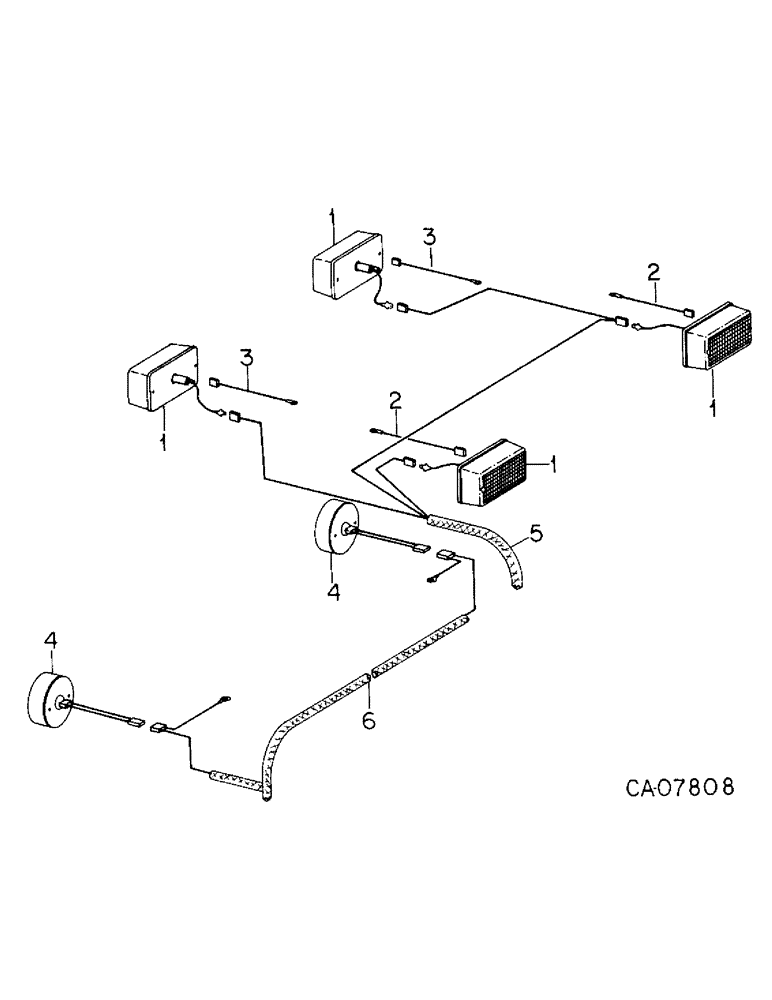

Запчасти Case IH 3688 (08-15) - ELECTRICAL, TRACTOR SAFETY LIGHTS AND CONNECTIONS (06) - ELECTRICAL

1

130882C91

LAMP

LIGHT ASSY, comb flash/turn signal, Only serviceable Refs are

4шт.

130883C1

LENS

comb flash/turn signal

4шт.

9417866

BULB,C6, #1156, 12.8V

LAMP, type C-6 trade #1156

4шт.

1276059C1

SELF-TAP SCREW,Pan HD, #10 - 16 x 3"

SCREW, SELF-TAPPING, , polyseal tap Cross Pan Hd, #10 x 2 1/2"

8шт.

2

111263C3

CABLE

ASSY, turn signal light frt gnd

2шт.

3

111264C3

CABLE

ASSY, turn signal light rear gnd

2шт.

456107C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10-16 x 1/2 phc c/r s/d tap

2шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 ext-int tooth lock

2шт.

4

131183C91

STOP LIGHT

LAMP ASSY, tail

2шт.

24396R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 p/hdcr tap

4шт.

5

111227C3

HARNESS

ASSY, main cab cable

1шт.

6

146513C2

HARNESS

ASSY, fender lights, 3088 w/Serial no. 1008 and below, 3288 w/Serial no. 1322 and below, 3688 w/Serial no. 2516 and below, 3688HC w/Serial no. 2516 and below

1шт.

6

245179C1

HARNESS

ASSY, fender lights, 3088 w/Serial no. 1009 and above, 3288 w/Serial no. 1323 and above, 3688 w/Serial no. 2517 and above, 3688HC w/Serial no. 2517 and above

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int tooth lock

2шт.

169850C1

CLIP

1шт.

370383R1

CLIP

rear lamp harness

1шт.

80561C91

LIGHT

PARTS ACCESSORY, rear fender mounted auxiliary lighting, Consists of

1шт.

131436C1

CABLE PULLING GRIP

CABLE ASSY

1шт.

9426333

FUSE,15 Amp, Type 3AG

1шт.

131319C1

SWITCH

ASSY

1шт.

1276080C1

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW

2шт.

131368C92

HEADLIGHT

LIGHT ASSY

2шт.

1267358C2

SEAT

2шт.

120371

NUT,1/2"-20, G5

2шт.

1105177

ALTERNATOR

-GENERATOR, 72 amp

1шт.

362667R1

CLIP

3шт.

405209R1

CABLE

ASSY

1шт.
