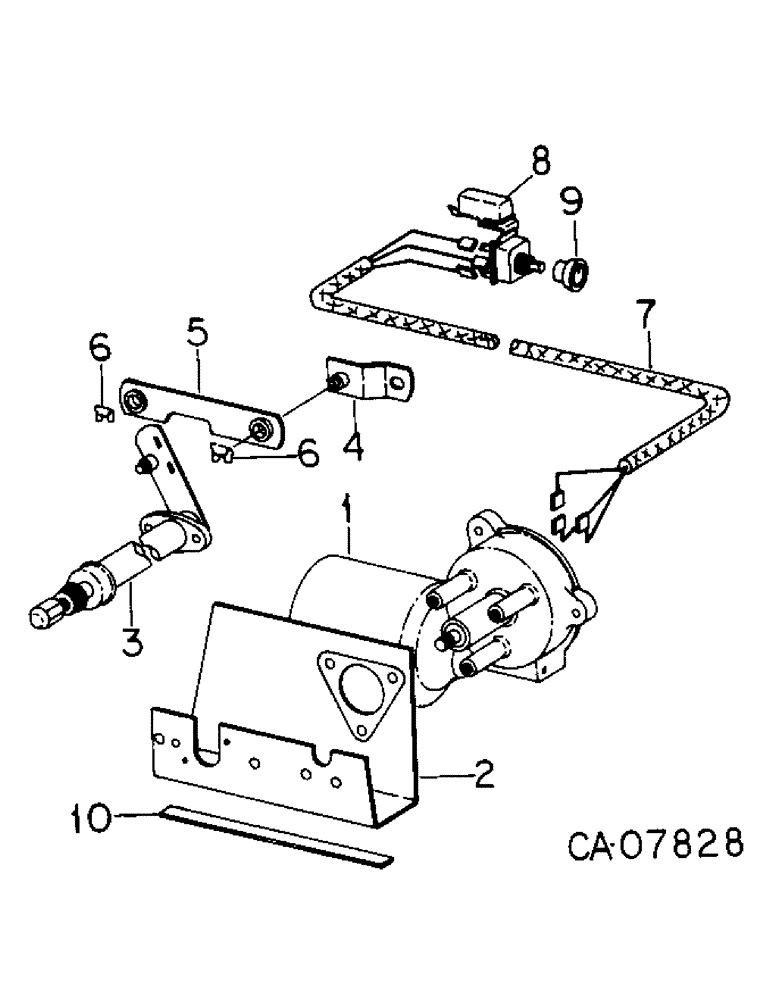

Запчасти Case IH 3688 (08-12) - ELECTRICAL, WINDSHIELD WIPER MOTOR AND CONNECTIONS, TRACTORS WITH DELUXE CONTROL CENTER (06) - ELECTRICAL

1267548C91

WIPER MOTOR

MOTOR ASSY, windshield wiper, Replaces motor, 143417C1 and bracket, 923480C1, Consists of Ref. 1 - 6

1шт.

1

MOTOR, windshield wiper, Not serviced separately, Order motor assy, 1267548C91

1шт.

2

BRACKET, mounting, Not serviced separately, Order motor assy, 1267548C91

1шт.

148074R1

WASHER

2шт.

3

SHAFT AND PIVOT ASSY, Not serviced separately, Order kit, 1267542C91

1шт.

1267556C1

BUTTON

NUT, knurled driver, Replaces 3016057R1

1шт.

4

ARM ASSY, drive, Not serviced separately, Order kit, 1267542C91

1шт.

5

LINK ASSY, connecting, Not serviced separately, Order kit, 1267542C91

1шт.

6

239487C1

CLIP, spring, Replaces 937547C1

2шт.

7

143340C1

HARNESS

ASSY, windshield wiper

1шт.

8

109222C1

SWITCH

windshield wiper w/circuit breaker

1шт.

109311H

JAM NUT

7/16-28 hex face

1шт.

9

111282C1

KNOB

wiper control

1шт.

10

118149C1

BAR

wiper mounting, shim

1шт.

117829C1

NUT

J-type retainer

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

23048R1

WASHER

.719 x 1.250 x .027 (Or as required)

4шт.

1267542C91

PACKAGE

KIT, wiper linkage service, Consists of Ref. 3 - 6 and instructions

1шт.

SCREW

3шт.

NUT, lock

1шт.

SCREW W/LOCKWASHER

2шт.
