Запчасти Case IH 3688 (08-09) - ELECTRICAL, TRACTOR FLOOD AND HEAD LIGHTS (06) - ELECTRICAL

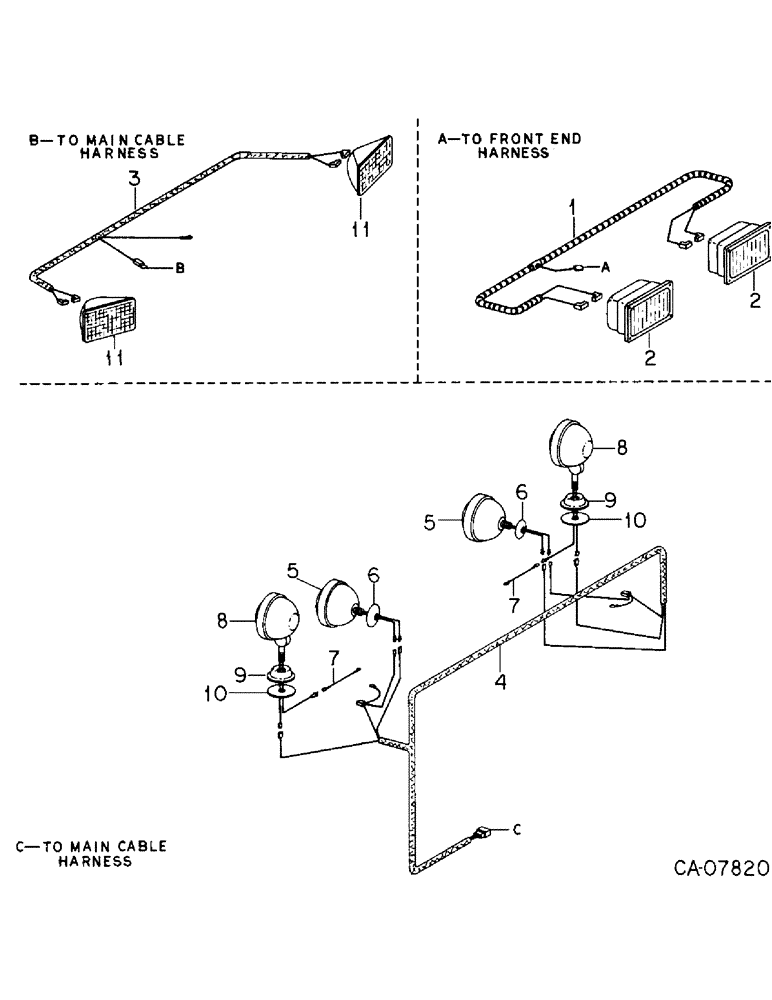

Схема запчастей Case IH 3688 - (08-09) - ELECTRICAL, TRACTOR FLOOD AND HEAD LIGHTS (06) - ELECTRICAL
5
8
11
9
10
1
2
7
2
7
11
10
3
5
9
4
8
6
6

Артикул

Название

Примечание

Количество

1

1251925C3

HARNESS

ASSY, headlight

1шт.

384554R1

CLIP

headlight and horn cable

1шт.

2

131227C92

HEADLIGHT

ASSY, 12-volt rectangular, Only serviceable Ref is

2шт.

1265547C1

LAMP

ASSY, rectangular

2шт.

144117C1

NUT

J type spring

8шт.

1270741C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW, SELF TAP, Cross Pan Hd, #8 x 1"

1шт.

3

148848C2

HARNESS

ASSY, front flood lights

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Ground to clutch housing Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

4

146513C2

HARNESS

ASSY, fender lights, 3088 w/Serial no. 1008 and below, 3288 w/Serial no. 1322 and below, 3688 w/Serial no. 2516 and below, 3688HC w/Serial no. 2516 and below

1шт.

4

245179C1

HARNESS

ASSY, fender lights, 3088 w/Serial no. 1009 and above, 3288 w/Serial no. 1323 and above, 3688 w/Serial no. 2517 and above, 3688HC w/Serial no. 2517 and above

1шт.

CONDUIT, convoluted, Use 26.0 in. from bulk roll marked 464835C1

2шт.

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

7/8 x 1-9/16 x 3/4

4шт.

5

388945R91

HEADLIGHT

LAMP ASSY, rear flood, Only serviceable Refs are

2шт.

373662R91

LAMP

type C-6 trade #4411, or

2шт.

131508C1

LAMP BASE

LAMP, replacement GE #H7610

2шт.

676078R1

RETAINER

shock proof light

2шт.

6

388947R1

RETAINER

lamp

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

2шт.

7

405209R1

CABLE

ASSY, aux light gnd

2шт.

362667R1

CLIP

aux lighting cable

3шт.

8

131368C92

HEADLIGHT

LIGHT ASSY, rear aux flood, Only serviceable Refs are

2шт.

131203C1

LAMP

ASSY, sealed beam

2шт.

676078R1

RETAINER

shockproof light, For J.W. Hobbs light assy

2шт.

1252609C1

RETAINER

shockproof light, For Midwest Mfg light assy

2шт.

9

1267358C1

SEAT

rear flood light mtg ball

2шт.

120371

NUT,1/2"-20, G5

2шт.

10

NOT USED THIS APPLICATION

1шт.

11

146479C1

HEADLIGHT

LIGHT, rectangular front flood, or

2шт.

11

1265547C1

LAMP

LIGHT, rect. trapezoidal lens

2шт.

Выбрано товаров: 30
