Запчасти Case IH 3688 (08-08) - ELECTRICAL, IMPLEMENT ELECTRIC REMOTE CONTROL (06) - ELECTRICAL

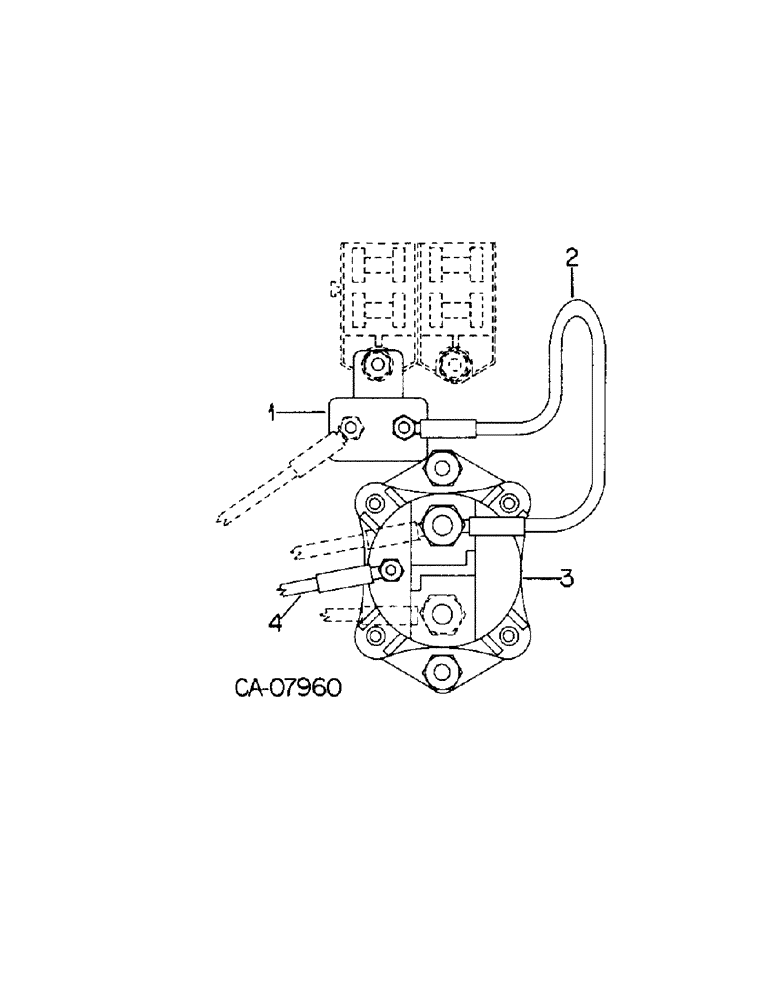

Схема запчастей Case IH 3688 - (08-08) - ELECTRICAL, IMPLEMENT ELECTRIC REMOTE CONTROL (06) - ELECTRICAL
2
3
1
4

Артикул

Название

Примечание

Количество

1265436C91

CONTROL

PARTS ACCESSORY, implement electric remote control, tractors w/cab, Consists of Ref. 1 and 2 plus instructions

1шт.

1265437C91

CONTROL

PARTS ACCESSORY, implement electric remote control, tractors w/rops, Consists of Ref. 1 - 4, instructions plus cable assy, 1255753C3, Not required this application

1шт.

1

403069R1

CIRCUIT-BREAKER,30A

BREAKER, circuit, 30 amp

1шт.

2

111322C1

CABLE

ASSY, solenoid switch to 30 amp circuit breaker

1шт.

3

107655C1

SOLENOID SWITCH

SWITCH ASSY, solenoid, tractors w/rops

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4 x 1/2 type 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

4

143420C2

CABLE

ASSY, mag. switch, key term, tractors w/rops

1шт.

Выбрано товаров: 12
