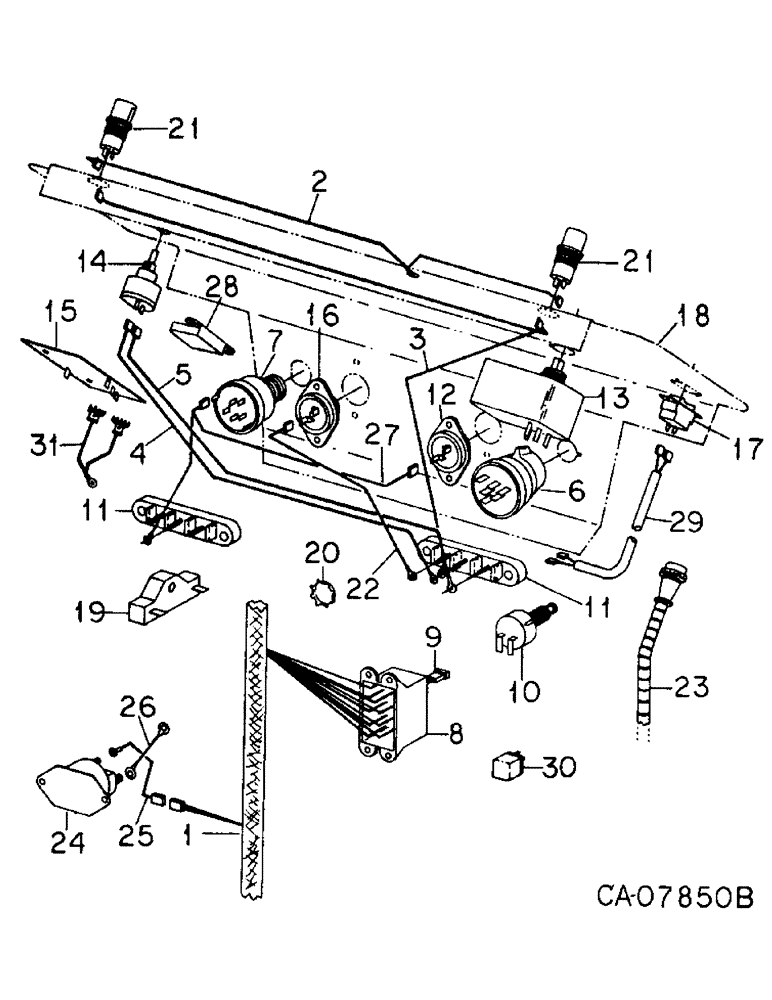

Запчасти Case IH 3688 (08-06) - ELECTRICAL, INSTRUMENT PANEL WIRING, SWITCHES AND RELATED PARTS (06) - ELECTRICAL

1

HARNESS ASSY, main cable, Refer to tractor chassis wiring, this group

1шт.

2

1251646C1

CABLE

ASSY, inst-lights to gnd, one 9 in. wire, one 11.8 in. wire

1шт.

2

104384C1

CABLE

ASSY, inst-lights to gnd, two 10 in. wires

1шт.

3

104385C1

CABLE

ASSY, inst-lights to junction blk

1шт.

104389C1

CLIP

instrument light cables

2шт.

4

120294C1

CABLE

ASSY, light switch to dimmer switch

1шт.

5

120295C1

CABLE

ASSY, dimmer switch to instrument lights

1шт.

CONDUIT, convoluted, For use on dimmer switch cables, Use 5.0 in. from bulk roll marked 2643122R1

1шт.

104389C1

CLIP

dimmer switch cable

1шт.

6

107200C2

LIGHT SWITCH

SWITCH ASSY, lighting

1шт.

7

1252476C1

SWITCH

ASSY W/ELECTRONIC CONNECTION, key start

1шт.

365502R1

NUT

switch mounting

2шт.

375431R1

LOCK WASHER

switch mounting

1шт.

131313C1

KEY, IGNITION

switch

1шт.

8

BLOCK, fuse, Not serviced separately, Order main cable harness

1шт.

30988R1

SCREW,Cross Pan Hd, M4 x 20

M4 x 20 mm class 4.8 p/hdcr

4шт.

30227R1

WASHER

4.3 x 9 x.8 mm pln

4шт.

933832R1

LOCK WASHER,M4

WASHER, 4 mm lock

4шт.

30267R1

NUT,M4, Cl 8

M4 phc class 10

8шт.

9

571691C1

FUSE

auto type ATC-30, lt green, headlights

1шт.

9

509080C1

FUSE,Lt Blue, 15 Amp

auto type ATC-15, lt blue, auxiliary lights

1шт.

9

131222C1

FUSE

auto type ATC-10, red, warning lights

1шт.

9

131220C1

FUSE

auto type ATC-5, tan, instrument gage cluster, XMSN brake solenoid

2шт.

9

131219C1

FUSE

auto type ATC-3, violet, digital data gage

1шт.

10

245183C91

SWITCH

neutral starting, Replaces 121629C2

1шт.

1252834C1

BLOCK

BRACKET, neutral starting switch

1шт.

245196C91

IGNITION SWITCH

PACKAGE, neutral start switch service, 3088 w/Serial no. 1008 and below, 3288 w/Serial no. 1322 and below, 3688 w/Serial no. 2516 and below, 3688HC w/Serial no. 2516 and below, Consists of

1шт.

561884C1

CONNECTOR, ELEC

CONNECTOR

1шт.

739675C2

IGNITION SWITCH

SWITCH, neutral start

1шт.

245184C1

CABLE

neutral start

1шт.

364910R1

BOOT

INSULATOR, terminal

1шт.

INSTRUCTIONS (NSS)

1шт.

11

107355C1

BLOCK

ASSY, instrument panel junction

1шт.

30208R1

NUT,M6, Cl 10

M6 phc clas 10

4шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

12

397940R93

SWITCH

ASSY, ether solenoid push button

1шт.

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10-NF x 1/2 polyseal p/hdcr mach

2шт.

138479

PLUG

WASHER, no. 10 ext tooth lock

2шт.

26303R1

HARDWARE,#10-24

NUT, no. 10 phc mach screw type 1

2шт.

13

131209C91

SWITCH

ASSY, turn signal and flasher

1шт.

71485C1

PACKAGE

KIT, turn signal switch handle and hardware service

1шт.

14

121705C91

SWITCH

ASSY, instrument light dimmer, Only serviceable Refs are

1шт.

146566C1

KNOB

inst-light dimmer switch

1шт.

109311H

JAM NUT

inst-light dimmer switch mounting

1шт.

15

130977C1

RECTIFIER

ASSY, indicator light

1шт.

24377R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW, no. 8-18 x 1/2 p/hdcr tap

2шт.

16

397940R93

SWITCH

horn button

1шт.

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10 x 1/2 polyseal mach

2шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 ext tooth lock

2шт.

26303R1

HARDWARE,#10-24

NUT, no. 10 phc mach screw type 1

2шт.

17

131319C1

SWITCH

ASSY, auxiliary light rocker, tractors w/rear fender aux lights

1шт.

260-1338

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

SCREW, no. 6 x 1/2 polyseal mach

2шт.

18

PANEL, instrument, Refer to group 11

1шт.

19

107558C1

RESISTOR

RESISTANCE UNIT, 25 OHM

1шт.

930693R1

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

M6 x 30 pln class 8.8

1шт.

933346R1

WASHER,M6 x 12 x 1.6

6.4 x 12.5 x 1.6 mm pln

1шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

1шт.

20

28370R1

PLUG, 29/32 hole dia znp button 29/32"

1шт.

21

107370C91

HOUSING

ASSY, instrument panel light, Only serviceable Refs are

2шт.

130894C1

LENS

instrument light

2шт.

200557H1

BULB,C2V, #1815, 14V

lamp no. 1815

2шт.

22

404397R1

CABLE

ASSY, horn switch to junction blk

1шт.

23

107238C2

HARNESS

ASSY, digital data gage, instrument panel

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, wiring

1шт.

24

107655C1

SOLENOID SWITCH

SWITCH ASSY, cab power solenoid

1шт.

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12 class 8.8

2шт.

30480R1

LOCK WASHER,Ext Tooth, M6

WASHER, no. 6 mm ext-tooth lock

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

25

143420C2

CABLE

ASSY, mag switch key terminal

1шт.

26

1255753C3

CABLE

ASSY, chassis cab power

1шт.

399470R1

BOOT

INSULATOR, terminal cover boot

2шт.

27

1252532C1

CABLE

ASSY, key switch, I, term

1шт.

28

121770C2

TRANSMITTER

MODULE ASSY, low coolant level

1шт.

24377R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW, no. 8-18 x 1/2 p/hdcr tap

2шт.

29

107330C1

CABLE

ASSY, aux lighting switch ext, For tractors w/tilt- telescoping steering wheel

1шт.

30

146461C1

RELAY

aux lights cutout, or

1шт.

30

3221235R1

RELAY

aux lights cutout

1шт.

31

104822C1

SOCKET

ASSY, tach inst light, tractors w/mechanical tachometer, speedometer

1шт.

9417863

BULB,C2F, #1895, 14V

#1895 12-volt light

2шт.

1265485C1

FUSE

measures about an 1" x 3"

1шт.
