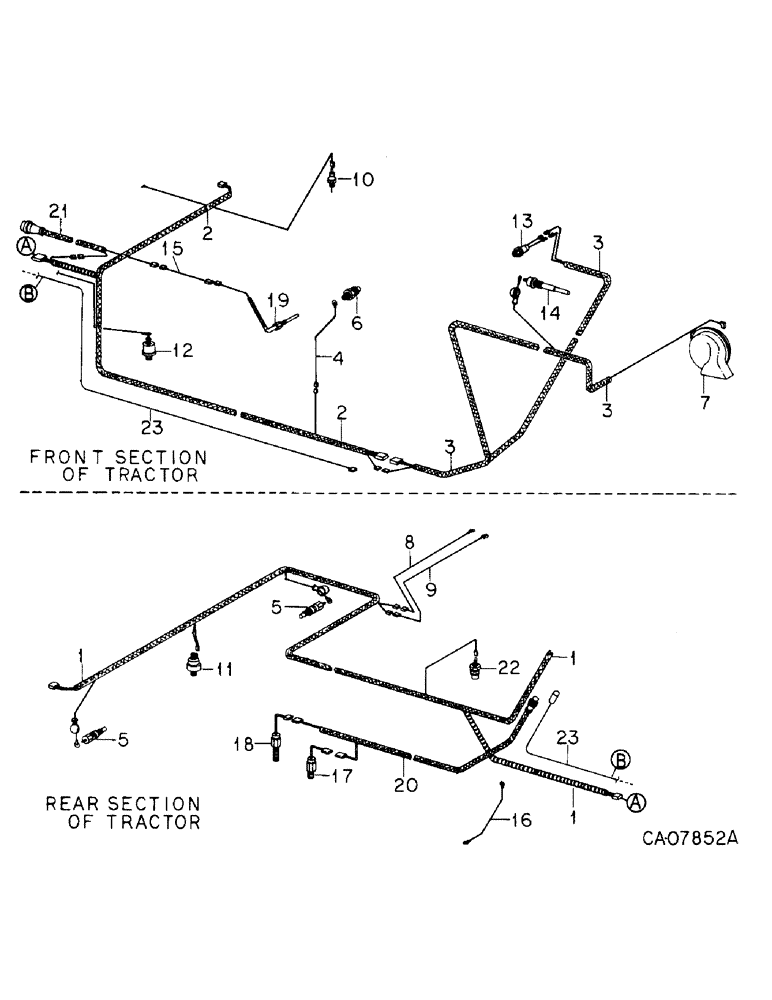

Запчасти Case IH 3688 (08-04) - ELECTRICAL, CHASSIS WIRING, PROBES, SWTICHES AND RELATED PARTS (06) - ELECTRICAL

1

245181C1

HARNESS

ASSY, main cable, Replaces 1252449C5

1шт.

12 pin connector at end of harness is P/N 475086C1. cam

1шт.

121597C1

CONNECTOR, ELEC

CONNECTOR, combination flasher and turn signal switch, Part of main harness

1шт.

109084

NUT,1/4"-20, G5

Main harness ground to instrument panel 1/4"-20, G5

1шт.

1253149C1

GROMMET

neutral switch cables, located in firewall LH side

1шт.

104363C2

GROMMET

main cable harness

1шт.

104393C2

CLAMP

CLIP, main cable harness

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

933348R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 mm pln

1шт.

363660R1

CLIP

main harness, twisted

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5/16 x 1/2 pln type 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

362126R1

CLIP

main harness

1шт.

384557R1

CLIP

main harness

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

1251744C2

CLAMP

CLIP, harness, subframe

1шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

934309R1

LOCK WASHER,M8

1шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

1шт.

384554R1

CLIP

ether solenoid cable

1шт.

670043C1

CLIP

neutral start cables

1шт.

2

1252747C4

HARNESS

ASSY, engine, 3088 and 3288 tractors

1шт.

2

1252439C4

HARNESS

ASSY, engine, 3688 and 3688HC tractors

1шт.

399470R1

BOOT

INSULATION, terminal cover boot, part of engine harness

1шт.

362126R1

CLIP

part lock neutral switch cables

1шт.

1255746C1

CLAMP

CLIP, engine harness

1шт.

1255747C1

CLAMP

CLIP, engine harness

1шт.

146422C1

CLAMP

CLIP, engine harness

1шт.

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP, engine cable harness, 3088 and 3288 tractors only

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

3

148622C1

HARNESS

front end

1шт.

1251658C2

GROMMET

front harness

2шт.

362123R1

CLIP

front harness, (1) used for 3088 and 3288 tractors, (2) used for 3688 and 3688HC tractors

1шт.

179812

GEAR

5/16 x 1/2 pln type 5, 1 per clip

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per clip 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1 per clip 5/16"-18, G5

1шт.

4

1252504C1

CABLE

ASSY, coolant temp sender jct.

1шт.

5

130979C1

SWITCH

brake warning

2шт.

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Part of brake warning switch

2шт.

121814C1

RETAINER

switch boot

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

383622R1

CLIP

brake switch cable

2шт.

6

121756C2

SENSOR

SENDER, coolant temperature

1шт.

444161

ELBOW

1/8-27 pln auto 90 deg. pipe street

1шт.

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

ADAPTER, 1/4 to 1/8 pln out/h/hd pipe

1шт.

7

9000239

HORN

ASSY, Delco-Remy

1шт.

931431R1

BOLT,Hex, M8 x 20, 8.8, Full Thd

M8 x 20 phc class 8.8

1шт.

934309R1

LOCK WASHER,M8

1шт.

934310R1

NUT,M8, Cl 8

M8 class 8

1шт.

8

104733C1

CABLE

ASSY, receiving unit to aux fuel tank

1шт.

9

104732C1

CABLE

ASSY, aux fuel sender to main tank

1шт.

10

3224405R91

RESTRICTION SWITCH

SWITCH ASSY, electric air cleaner

1шт.

11

376855R92

SWITCH

transmission lub oil pressure

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL, trans oil and coolant, (3) used on 3088 and 3288 tractors, (2) used on 3688 and 3688HC tractors

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

384556R1

CLAMP

CLIP, trans oil switch cable

1шт.

12

130707C3

SENDER UNIT

SENDER, engine oil pressure

1шт.

362667R1

CLIP

engine oil pressure switch cable

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

13

111266C1

SWITCH, A/C HIGH PRE

SWITCH ASSY, high pressure, located on a/c compressor

1шт.

362126R1

CLIP

a/c compressor cable

1шт.

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

M10 x 20 class 8.8

1шт.

30282R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 mm

1шт.

30284R1

NUT,M10, Cl 10

M10 class 10

1шт.

14

449791C1

SWITCH

PROBE ASSY, low coolant level

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

15

1252699C1

CABLE ASSY.

CABLE ASSY, EGT, extension, 3088 and 3288 tractors

1шт.

15

1252688C1

CABLE ASSY.

CABLE ASSY, EGT, extension, 3688 and 3688HC tractors

1шт.

16

537055R1

CABLE

ASSY, tractor to cab ground

1шт.

178556

WASHER,Ext-Int Tooth, 7/16"

3/8 ext-int tooth lock

1шт.

1265597C2

CABLE

ASSY, radiator ground

1шт.

17

1252495C1

TRANSMITTER

GAGE, RPM transducer-transmitter

1шт.

138506

LOCK WASHER,Ext Tooth, 3/4"

WASHER, 3/4 ext lock

1шт.

121786C2

COVER

RPM transducer mounting

1шт.

18

1252496C2

GAUGE

GAGE, MPH transducer transmitter

1шт.

138506

LOCK WASHER,Ext Tooth, 3/4"

WASHER, 3/4 ext lock

1шт.

362127R1

CLIP

MPH transducer wire

1шт.

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, MPH transducer wire

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 class 5

1шт.

19

146599C3

TEMPERATURE SENDER

GAGE, EGT, RTD temperature sensor

1шт.

20

1252529C3

HARNESS

ASSY, data center gage, chassis

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, wiring

7шт.

1251744C2

CLAMP

CLIP, harness

2шт.

21

1252534C3

HARNESS

ASSY, data center gage, engine

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, wiring

7шт.

22

245196C91

IGNITION SWITCH

SWITCH ASSY, park lock, Replaces 121629C2, clutch pedal actuated (Replaces 245183C91)

1шт.

23

1265487C1

CABLE ASSY, coolant loss probe

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, wiring

3шт.

CONDUIT, convoluted, furnish as required from bulk roll marked 2643132R1

1шт.
