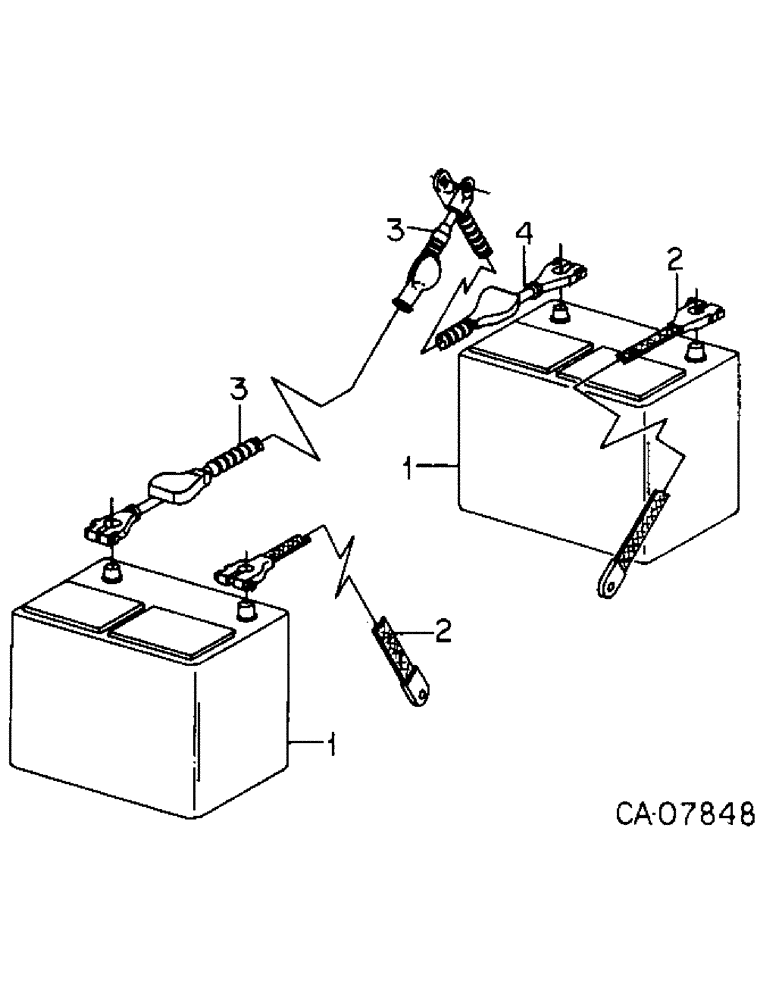

Запчасти Case IH 3688 (08-02) - ELECTRICAL, BATTERY AND CONNECTIONS (06) - ELECTRICAL

1

121787C1

DRY BATTERY

maintenance free

2шт.

2

1251928C1

STRAP

ASSY, Serial Range: battery-ground

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

120512HX

BOLT AND NUT,Sq Hd, 5/16" - 18 x 1 3/8", W/Hex Nut

BOLT ASSY, terminal

2шт.

3

1265533C1

CABLE

ASSY, battery RH, Replaces 146498C1

1шт.

383619R1

COVER

battery cable terminal large, Part of cable assy 1255533C1

1шт.

364910R1

BOOT

COVER, battery terminal, Part of cable assy 1255533C1

1шт.

120512HX

BOLT AND NUT,Sq Hd, 5/16" - 18 x 1 3/8", W/Hex Nut

BOLT ASSY, terminal, Part of cable assy 1255533C1

1шт.

4

148621C1

CABLE

ASSY, battery LH, Replaces 146499C1 and 1265522C1

1шт.

383619R1

COVER

battery cable terminal large

1шт.

120512HX

BOLT AND NUT,Sq Hd, 5/16" - 18 x 1 3/8", W/Hex Nut

BOLT ASSY, terminal

1шт.

399470R1

BOOT

INSULATOR, terminal cover boot, Used on cranking motor solenoid switch, S, terminal

1шт.

146421C1

CLAMP

CLIP, battery cable, short

1шт.

146422C1

CLAMP

CLIP, battery cable, long

1шт.
