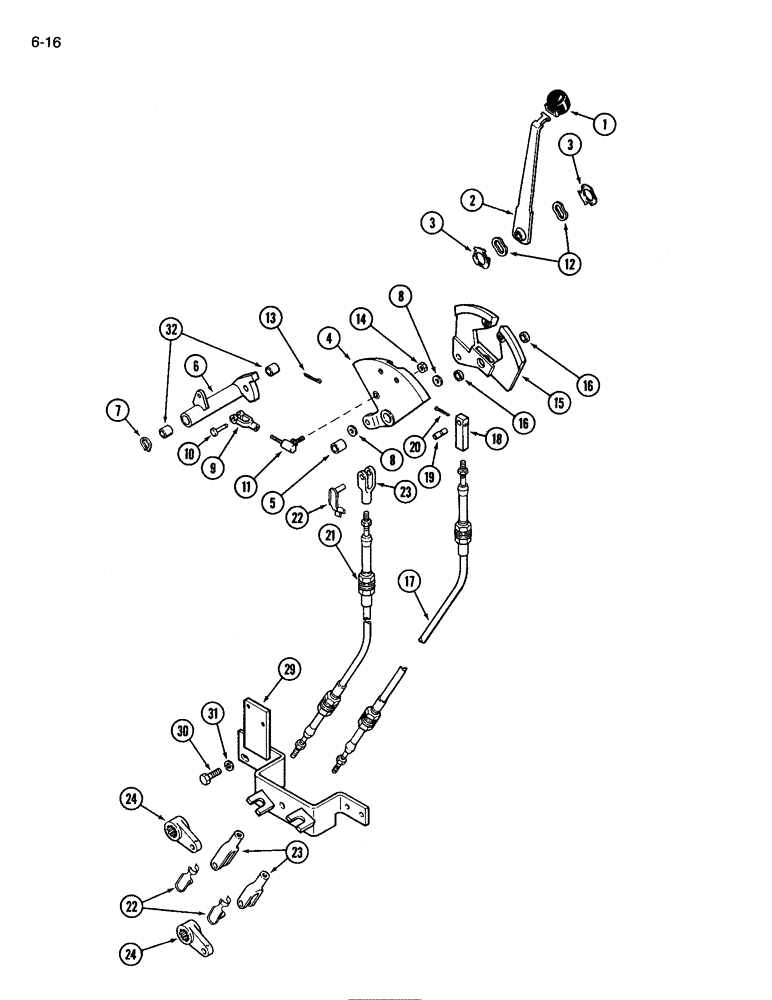

Запчасти Case IH 3594 (6-016) - GEAR SHIFT LINKAGE (06) - POWER TRAIN

1

A177436

KNOB

hand lever, red

1шт.

2

A149899

LEVER

hand, gear shift

1шт.

3

A162628

WASHER,25.4mm ID x 39.5mm OD x 1.57mm Thk

FINGER spring

2шт.

4

A135170

QUADRANT

shift, 3rd and 4th gear, Includes Ref. 5

1шт.

5

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

pivot

1шт.

6

A176758

LEVER

reverse lockout, 24 speed transmission, Includes Ref. 32

1шт.

6

A176757

LEVER

reverse lockout, 12 speed transmission, Includes Ref. 32

1шт.

7

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

1шт.

8

G46081

BEARING WASHER

WASHER spacer

2шт.

9

213-114

ADJUSTABLE CLEVIS,1/4" - 28

CLEVIS adjustable, 1/4 inch NF

1шт.

10

A163098

PIN

clevis, 5/16 inch

1шт.

11

A163017

BALL

JOINT ball, reverse lockout

1шт.

12

A63169

SPRING

WASHER spring wave

4шт.

13

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

14

131-1326

JAM NUT,Jam, 3/8"-24

NUT hex, jam, self-locking, 3/8 inch NF

1шт.

15

A61869

QUADRANT

shift, 1st and 2nd gear, Includes Ref. 16

1шт.

16

A61871

BUSHING,15.95mm ID x 19.13mm OD x 6.48mm L

pivot

2шт.

17

A160513

CABLE

control, 1st and 2nd gear

1шт.

18

A160511

EYE

connecting, 5/16 inch NF

1шт.

19

A145484

PIN,9.46mm OD x 28.57mm L

quadrant

1шт.

20

432-620

COTTER PIN,3/32" x 1 1/4"

3/32" x 1 1/4"

1шт.

21

A160514

CABLE

control, 3rd and 4th gear

1шт.

22

A147652

PIN

yoke

3шт.

23

A160630

CLEVIS,5/16" - 24

YOKE cable, 5/16 inch NF

3шт.

24

A64936

LEVER

splined, shift control, See Figure 6-020

2шт.

29

A162910

STRAP

cable anchor

1шт.

30

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

31

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

32

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

pivot

2шт.
