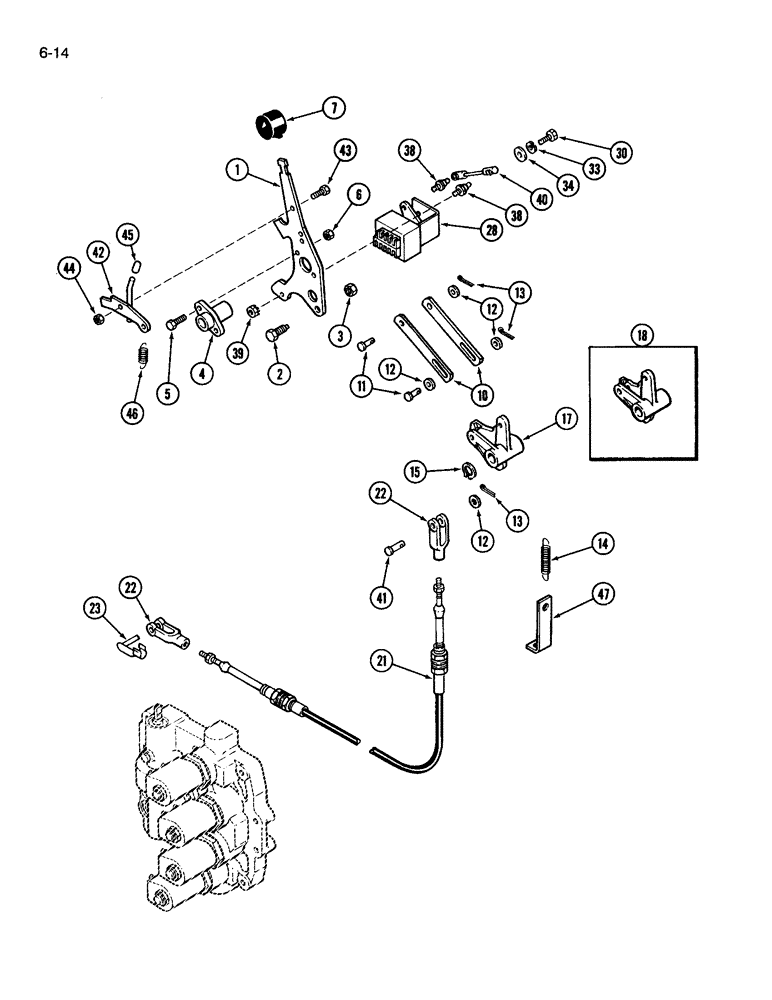

Запчасти Case IH 3594 (6-014) - POWER SHIFT RANGE LINKAGE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A176861
LEVER
power shift range
1шт.
2
A161797
SCREW,3/8" - 16, Gr 8
lever stop, 12 speed transmission
1шт.
2
A176207
SCREW,3/8" - 16 x 0.61", Gr 8
lever stop, 24 speed transmission
1шт.
3
131-1306
JAM NUT,Jam, 3/8"-16
NUT hex, jam, self-locking, 3/8 inch NC
1шт.
4
A160860
BUSHING
BEARING control lever
1шт.
5
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
6
230-4214
LOCK NUT,1/4"-20, GA
NUT hex, self-locking, 1/4 inch NC
2шт.
7
A177441
KNOB
shift lever, orange/red
1шт.
10
A177185
LINK
lever return
2шт.
11
427-4077
CLEVIS PIN,1/4" x .770"
PIN, CLEVIS, 1/4" x .770"
2шт.
12
495-21031
WASHER,1/4"
flat, 5/16 x 47/64 x 1/16 inch
4шт.
13
432-412
COTTER PIN,1/16" x 3/4"
PIN, SPLIT (COTTER), 1/16" x 3/4"
3шт.
14
A164415
SPRING
lever return
1шт.
15
100-1162
SNAP RING,#62, Ext
Ring, Snap, #62, Ext
1шт.
17
A176545
LEVER
reverse interlock, 12 speed transmission
1шт.
18
A176597
LEVER
reverse interlock, 24 speed transmission
1шт.
21
A135243
CABLE
reverse interlock
1шт.
22
213-114
ADJUSTABLE CLEVIS,1/4" - 28
CLEVIS adjustable, 1/4 inch NF
2шт.
23
A163098
PIN
spring, 1/4 inch
1шт.
28
1964841C1
SWITCH
RANGE SWITCH ASSEMBLY, 24 speed transmission
1шт.
28
1964842C1
SWITCH
RANGE SWITCH ASSEMBLY, 12 speed transmission
1шт.
30
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
hex, 1/4 NC x 5/8 inch
1шт.
33
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
34
495-21031
WASHER,1/4"
flat, 5/16 x 47/64 x 1/16 inch
1шт.
38
A161786
STUD
ball joint
2шт.
39
193-1000
NUT,Keps, w/LW,#10-32
hex, with external tooth lock washer, No. 10 NF
1шт.
40
A161787
HOUSING
BALL JOINT ROD ASSEMBLY
1шт.
41
A8823
PIN,6.29mm OD x 26.99mm L
clevis, 1/4 inch
1шт.
42
A176859
LATCH
range lever
1шт.
43
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1шт.
44
230-4214
LOCK NUT,1/4"-20, GA
NUT hex, self-locking, 1/4 inch NC
1шт.
45
A177232
CAP
latch
1шт.
46
A163012
SPRING
latch return
1шт.
47
A146252
BRACKET
return spring
1шт.
Выбрано товаров: 34
